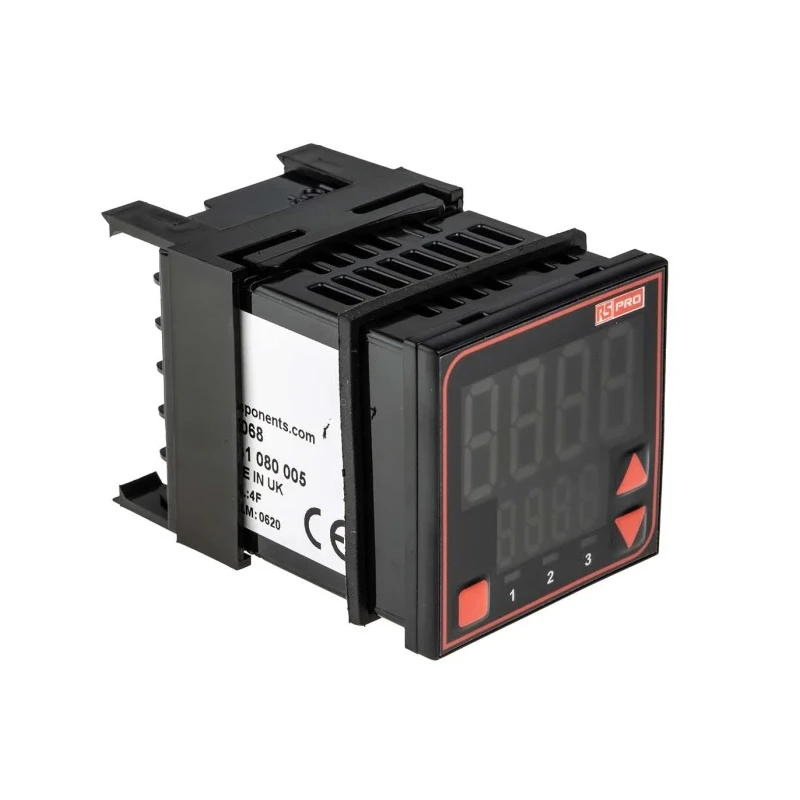

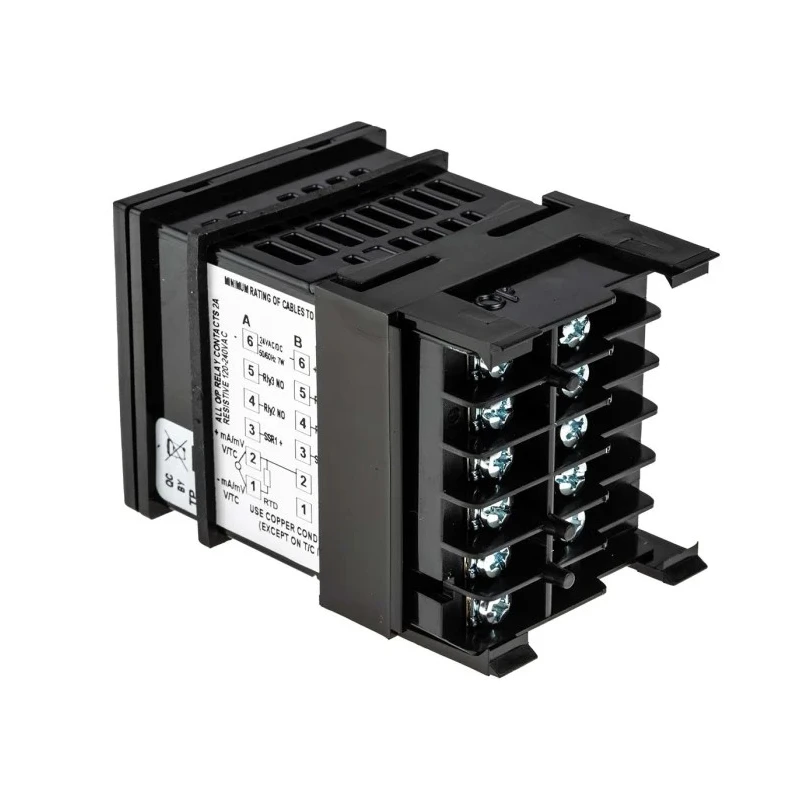

RS PRO Panel Mount PID Temperature Controller 3 Output Relay SSR 24 V AC/DC 48x48mm 124-1068

RS PRO 124-1068 Panel Mount PID Temperature Controller is designed for accurate and reliable temperature regulation in various industrial applications. This controller uses a proportional-integral-derivative (PID) control loop to maintain process temperatures precisely as per user settings, thus preventing overshoot and lag commonly seen in temperature control systems.

Featuring 3 outputs which include relay and SSR types, it accommodates a wide range of control configurations suited for heat and cool applications. The controller supports analogue input from various thermocouple types, including the J type, enabling versatile temperature sensing capabilities from -200°C up to 2320°C depending on thermocouple selection.

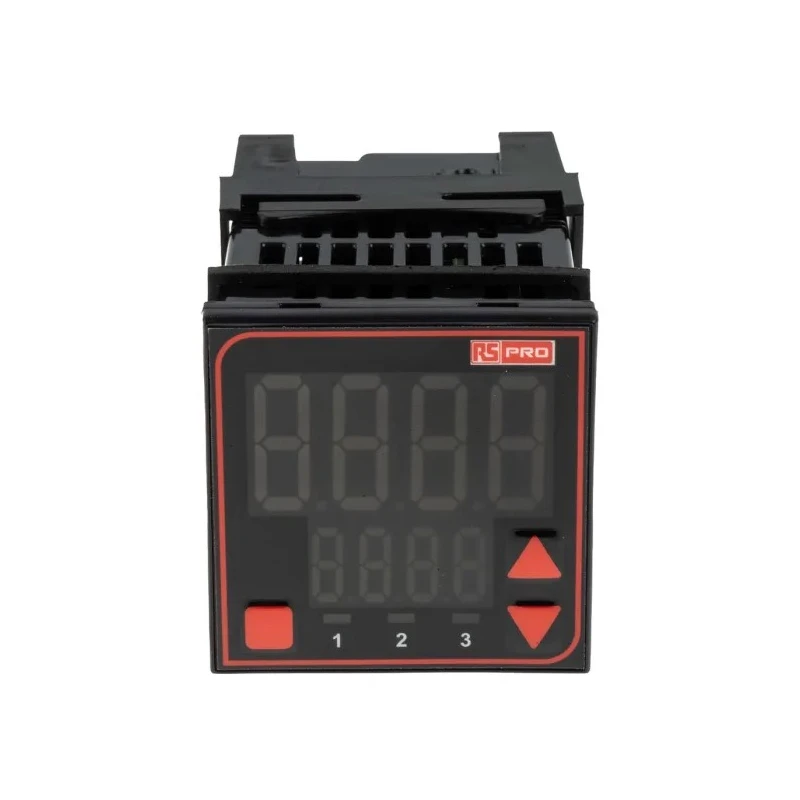

The LED display offers a dual 4-digit interface that is easy to read, while programming is streamlined through a simple 3-button operational interface and a menu with 10 configurable parameters. Its compact 48 mm by 48 mm panel design, with a depth of 67 mm, allows easy installation in panel mounts.

Rated for operation from 0°C to 55°C with IP20 and IP65 protection, this controller is suitable for harsh industrial environments requiring dust-tight and splash-proof equipment. It complies with internationally recognized safety and EMC standards EN61010-1 and EN61326, guaranteeing robust performance in industrial electrical measurement and control scenarios.

Its maximum supply voltage is 24 V AC/DC with a maximum voltage and current rating of 250 V and 2 A respectively, making it compatible with a broad range of industrial power setups. This RS PRO controller is ideal for industrial, manufacturing, HVAC, laboratory testing, and process control uses.

Equipped with PID control for stable temperature regulation. Supports multiple thermocouple types including J type input. Dual 4-digit LED display for clear readouts. Compact 48 x 48 mm panel size with 67 mm depth for panel mounting.

Operating temperature range 0°C to 55°C, suitable for industrial environments. IP20 and IP65 ratings ensure dust-tight and splash-proof operation. Compliance with CE, EN61010-1, and EN61326 standards for safety and EMC. Maximum current rating of 2 A with a maximum voltage of 250 V.

Includes a setup menu with 10 configuration parameters for flexible programming. Explore the full RS PRO range on EnvMart for trusted industrial temperature control solutions.
