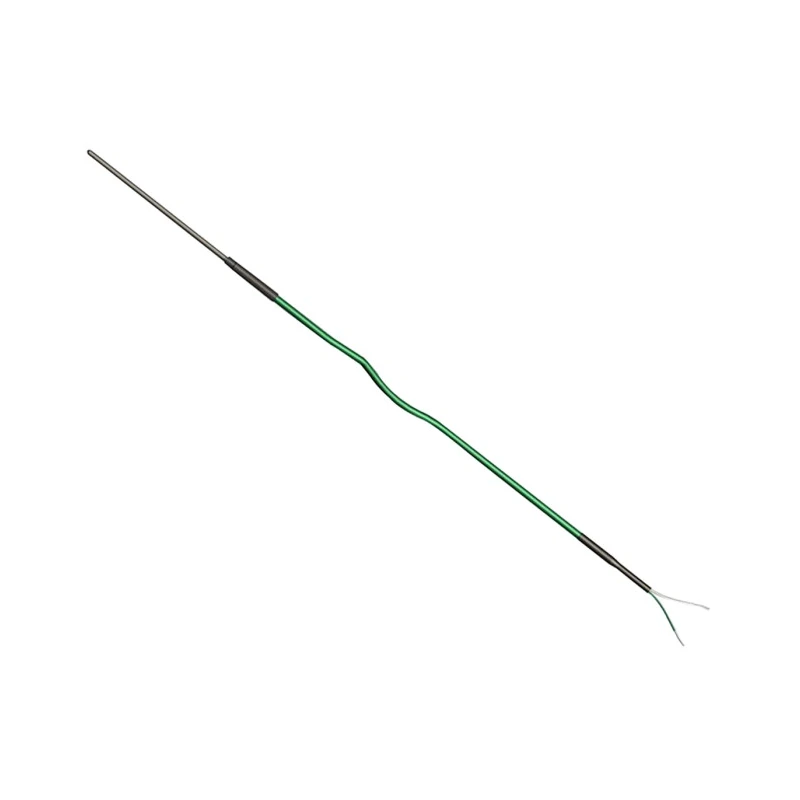

Correge Type K ATEX Mineral Insulated Thermocouple 1 m Length, 1.5 mm Diameter, Inconel 600 Probe, 0 °C to 1200 °C PTMTCA2

Free Delivery in India | Lowest Global Shipping Charges

Correge Type K ATEX Mineral Insulated Thermocouple 1 m Length, 1.5 mm Diameter, Inconel 600 Probe, 0 °C to 1200 °C PTMTCA2

Name: Correge Type K ATEX Mineral Insulated Thermocouple 1 m Length, 1.5 mm Diameter, Inconel 600 Probe, 0 °C to 1200 °C PTMTCA2
Brand: Correge
SKU: 141744
Price: 226.96 USD
Availability: InStock



Category Thermocouple Sensors Brand Correge Condition New

Specifications

Country of Origin	France
Brand	Correge
Response time	2s
Model	PTMTCA2
Probe Material	Inconel 600
Cable Length	2000mm
Thermocouple Type	K
Probe length	1m
Series	PTMTCA2
Probe Diameter	1.5mm
Terminal type	Cable
Standards/Approvals	EAC (Russia & Kazakstan), IEC 60584, ATEX (Europe), IECEx (Asia & Océania)
Maximum Temperature Sensed	1200°C
Minimum Temperature Sensed	0°C

Key Features

Type K thermocouple with Chromel-Alumel construction ensures reliable temperature sensing.
Mineral insulated stainless steel sheath with Inconel 600 probe material provides durability and chemical resistance.
1.5 mm diameter probe and 1 m length suitable for varied industrial applications.
Features fast 2-second response time for efficient temperature monitoring.
Equipped with cable terminal type and 2000 mm cable length enabling flexible installation.
ATEX approved for hazardous areas, compliant with IEC 60584 and IECEx standards for global use.
Compact stainless steel junction with 5 mm diameter and 35 mm length for secure connections.
Operates safely in temperatures from 0 °C minimum up to a maximum of 1200 °C.

Product Description

Correge PTMTCA2 Type K ATEX Mineral Insulated Thermocouple is a specialist temperature sensor designed for precise industrial measurements in hazardous environments. The thermocouple features a 1 m long probe with a 1.5 mm diameter made from Inconel 600, an alloy known for corrosion resistance and high temperature stability. It accurately senses temperatures ranging from 0 °C to a maximum of 1200 °C, suitable for a wide spectrum of industrial, laboratory, and process control applications.

The device includes a compact stainless steel junction of 5 mm diameter by 35 mm length, ensuring robust mechanical stability. Its mineral insulation improves durability and thermal insulation, optimized for rapid temperature changes with a response time of just 2 seconds. This thermocouple is equipped with cable-type terminals terminated with a durable 2000 mm PVC-insulated cable featuring a copper braid for enhanced protection and performance.

Certified with ATEX approval, IEC 60584, and IECEx standards, the PTMTCA2 sensor is safe for use in potentially explosive atmospheres in Europe, Asia, Oceania, Russia, and Kazakhstan. Its flexible sheath allows bending and forming for custom installation to suit various processes. The thermocouple's construction and certifications make it well-suited for automation, process control, HVAC, manufacturing, and hazardous industrial environments.

Type K thermocouple with Chromel and Alumel elements. 1.5 mm diameter Inconel 600 sheath for durability. 1 meter probe length with high temperature sensing capability up to 1200 °C. Fast 2-second response ensures timely temperature readings.

ATEX and IEC standards certified for hazardous area applications. 2000 mm PVC cable with copper braid for robust connectivity. Compact stainless steel junction (5 mm × 35 mm) design. Flexible sheath for custom installation and process adaptation.

Manufactured in France under high quality standards.

For industrial-grade temperature sensing solutions, explore the full range of Correge thermocouples and sensors at EnvMart. Find products compliant with international safety and quality standards for reliable and precise temperature measurement needs.
