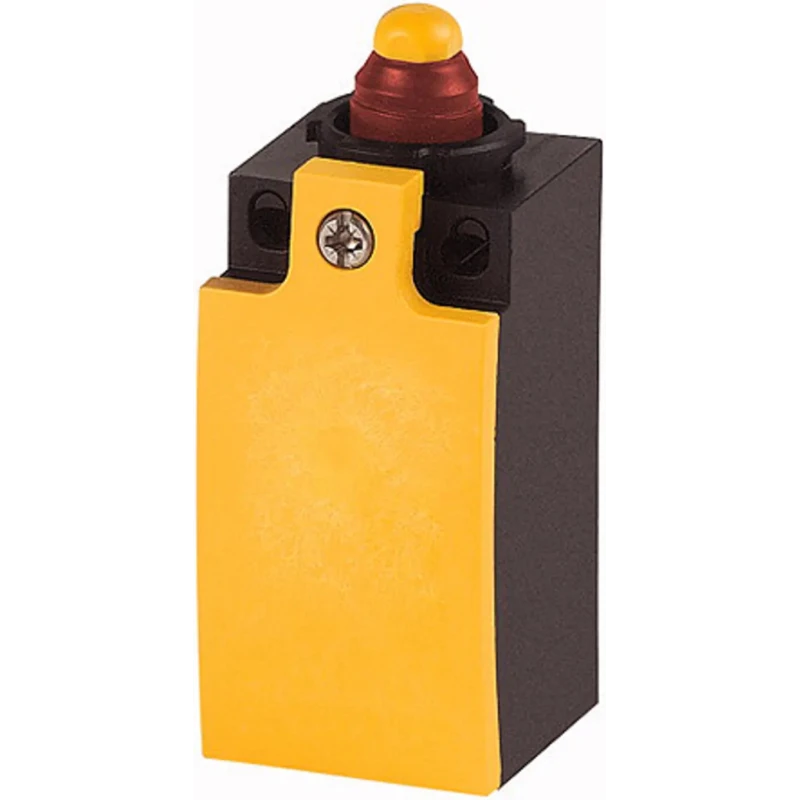

Eaton LS-Titan Series Plunger Limit Switch Insulated Plastic Housing IP65 415V AC 6A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Length | 31mm |
| Model | IP65 |
| Depth | 76mm |
| IP Rating | IP65 |
| Width | 33.5mm |
| Housing Material | Insulated Plastic |
| Series | LS-Titan |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Top |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Cage Clamp |
| Standards/Approvals | RoHS |
| Operating Force | 1N |
| Mechanical Life | 8000000Operations |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 415V ac |
Key Features
- The plunger actuator ensures precise control and durability.
- Insulated plastic housing offers robust protection in cold climate environments.
- Provides safety rated positive opening NC contacts to prevent tampering.
- Supports switching voltages of 415V AC and 220V DC for versatile applications.
- Features cage clamp terminals for secure and maintenance-free connections.
- Operates reliably within temperature range of -40°C to 70°C.
- Mechanical life rated at 8 million operations for long-term industrial use.
- Compact design with dimensions 33.5mm width, 31mm length, and 76mm depth.
Product Description
Eaton 176881 LS-11S-CC plunger limit switch from the LS-Titan Series is designed for industrial control applications requiring reliable position monitoring of protective guards such as doors, flaps, and hoods. This limit switch features an insulated plastic housing rated IP65 for dust and water resistance, making it suitable for harsh and cold climate environments.
Operating at 415V AC with a switching current of 6A, this snap action contact switch provides positive opening normally closed (NC) contacts for enhanced safety and tamper resistance. The plunger actuator type ensures precise actuation with low operating force and high mechanical durability rated for 8 million operations.
The cage clamp terminal type allows for secure, vibration-proof wiring connections, reducing maintenance requirements. Its compact dimensions (33.5mm wide, 31mm length, 76mm depth) and top mounting orientation facilitate versatile installation in control panels and machinery.
It is ideal for use in manufacturing plants, processing facilities, HVAC systems, and other industrial environments requiring robust position safety switches. The plunger actuator provides precise and reliable position detection.
IP65 ingress protection ensures suitability for dusty and damp conditions. Insulated plastic housing offers cold climate resistance and durability. Positive opening NC contacts enhance operator safety and system reliability.
Cage clamp terminals enable easy and secure electrical connections. High mechanical life rating supports long service intervals. Compact footprint fits diverse mounting configurations. Operating temperature range from -40°C to 70°C expands usability.
Compliant with RoHS for environmental and safety standards.
For detailed technical requirements and compatible actuator options, consult Eaton's LS-Titan Series documentation. Explore our full range of industrial Limit Switches for automated safety solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage for this model is 415V AC and 220V DC.
It operates reliably within a temperature range of -40°C to 70°C.
This model features a plunger actuator type that ensures precise actuation with low operating force.
The mechanical life of this unit is rated for 8 million operations.
The dimensions are 33.5mm in width, 31mm in length, and 76mm in depth.
It uses cage clamp terminals for secure and maintenance-free connections.
Yes, it has an IP65 rating for dust and water resistance, making it suitable for harsh and cold climate environments.
The contact type is snap action, providing positive opening normally closed (NC) contacts for enhanced safety.
It is ideal for use in manufacturing plants, processing facilities, HVAC systems, and other industrial environments requiring robust position safety switches.
It is compliant with RoHS for environmental and safety standards.
The operating force required is 1N.
The country of origin is Germany.
