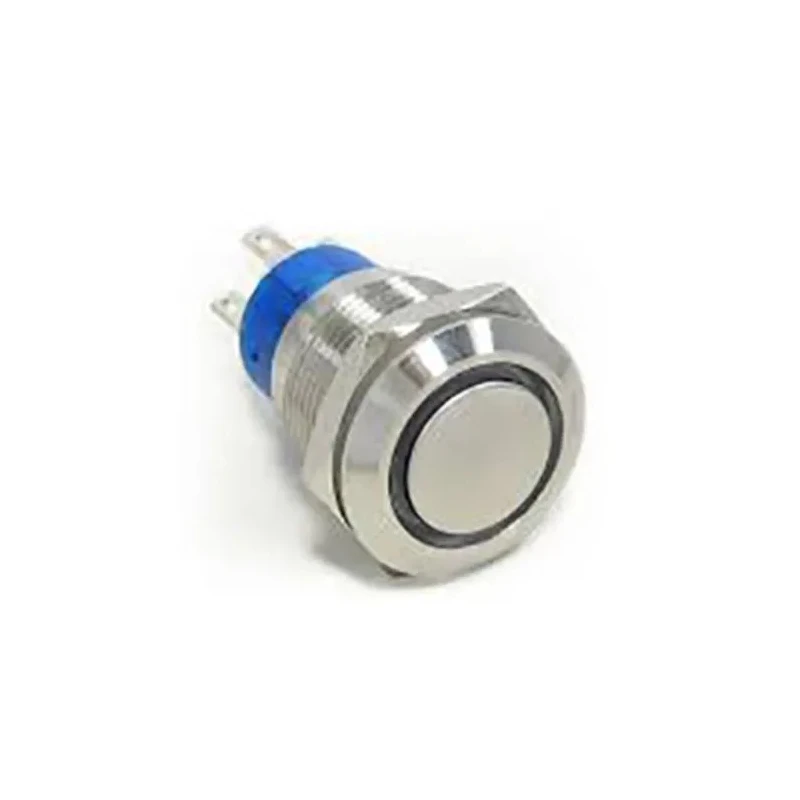

TE Connectivity Series Illuminated Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, DPDT, Red LED, IP67, 250 V AV19
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 19mm |
| Model | AV19 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV19 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV, REACH, UL FIle No. E46765 |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a vandal-proof design with a rear mounting jam nut for secure installation.
- Constructed with a silver actuator and push button style for reliable operation.
- Rated for 250 V AC/DC voltage with a 3 A switch contact current capacity.
- Ingress Protection rating of IP67 ensures durability against dust and water.
- Operates reliably between -20°C to 55°C operating temperature range.
- Red LED provides clear illuminated indication for user feedback.
- Wire lug terminal type enables secure electrical connections.
- Specifications certified as compliant with RoHS, REACH, and UL standards.
Product Description
TE Connectivity AV19 Series Illuminated Push Button Switch is designed with high industrial security and reliability, suitable for robust panel mounting applications. This latching switch features a 19.2 mm panel cutout and a double pole double throw (DPDT) contact configuration. The silver push button actuator with red LED illumination provides both functionality and clear visual feedback.
Constructed for longevity, the switch offers IP67 ingress protection making it resistant to dust and water ingress. It operates reliably within a temperature range of -20°C to 55°C, making it well-suited for demanding industrial environments. The 3 A contact current and 250 V AC/DC voltage ratings support diverse control and communication equipment.
The vandal-proof design includes a rear mounting jam nut for secure fitting, enhancing durability and tamper resistance. Wire lug terminals facilitate easy wiring installation. The product is compliant with RoHS, REACH, and UL certifications, ensuring adherence to industry standards.
Common applications for this switch include elevators, escalators, instrumentation, and various industrial control panels. The AV19 series combines premium look and feel with customizable features such as push button symbols and LED options.
Vandal-proof construction with rear mounting jam nut for robust panel installation. Silver push button actuator with illuminated red LED for user notification. DPDT contact configuration supporting 3 A current at 250 V AC/DC.
Panel cutout size of 19.2 mm for versatile mounting compatibility. High IP67 protection rating against dust and water ingress. Operating temperature range from -20°C to +55°C for industrial reliability. Wire lug terminal type for secure and straightforward electrical connections.
Compliance with RoHS, REACH, and UL standards ensures safety and environmental responsibility. Ideal for use in control equipment, elevators, escalators, and instrumentation. Explore more specialized push button switches and components to meet diverse industrial and commercial requirements at EnvMart.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile control applications.
It has an IP67 ingress protection rating, making it resistant to dust and water ingress.
The switch operates reliably within a temperature range of -20°C to 55°C, suitable for various industrial environments.
It utilizes wire lug terminals, which facilitate secure and straightforward electrical connections.
The required panel cutout size for this unit is 19.2 mm, ensuring compatibility with standard mounting applications.
The switch has a contact current rating of 3 A, supporting various control and communication equipment.
It supports both 250 V AC and 250 V DC voltage ratings, making it versatile for different applications.
The switch features a red LED illumination, providing clear visual feedback for user interaction.
Yes, it is compliant with RoHS, REACH, and UL standards, ensuring safety and environmental responsibility.
The actuator is constructed from silver, providing a functional and aesthetic design for the push button.
Common applications include elevators, escalators, instrumentation, and various industrial control panels.
This model features a latching switch operation, allowing it to maintain its state until manually changed.
