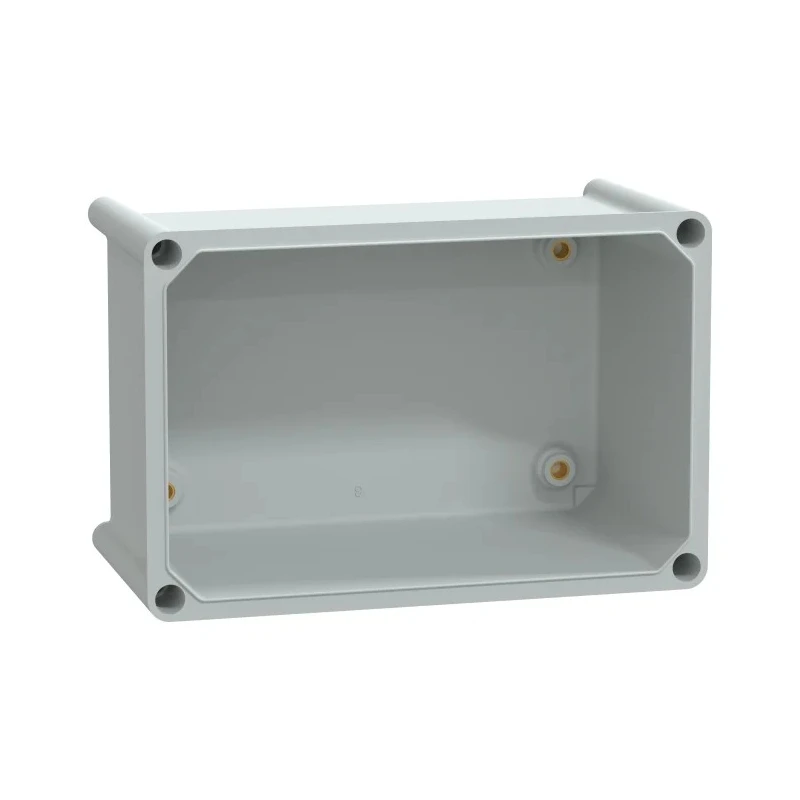

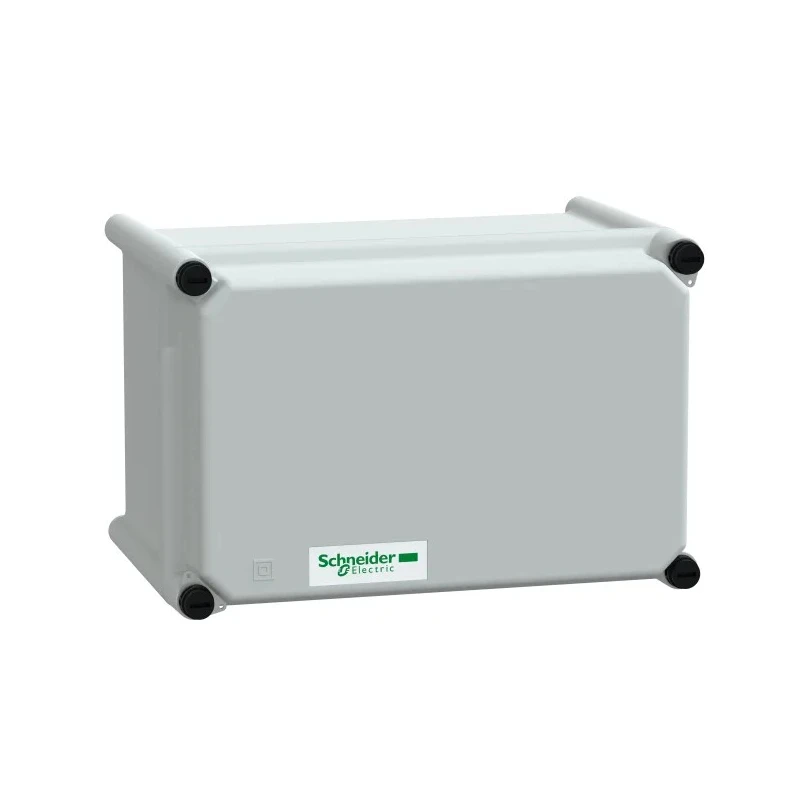

Schneider Electric PanelSeT Fibreglass Reinforced Polyester General Purpose Enclosure IP65 IK09 180mm x 270mm NSYPLSP1827G

Schneider Electric NSYPLSP1827G PanelSeT Series General Purpose Enclosure features a robust body made from fibreglass reinforced polyester combined with a grey polyester lid, offering reliable protection and insulation for electrical and industrial applications.

Measuring 180 mm in height and 270 mm in width, this enclosure is rated IP65, making it dust tight and resistant to water jets, suitable for outdoor and indoor use. The enclosure also has IK09 impact resistance according to IEC 62262, enhancing its durability against mechanical impacts.

This modular enclosure is designed for flexible mounting options, including wall mounting, and features insulation class II for electrical safety. The lid is removable and secured with slot screw locking for easy access and maintenance.

The product complies with international standards IEC 62208 and UL, ensuring quality and safety. It is self-extinguishing at 960° C, providing fire resistance in demanding environments. Included in the package are the enclosure body, a plain cover lid, and locking screws for secure assembly.

The Schneider Electric PanelSeT enclosure range is ideal for a wide array of applications such as industrial electrical distribution controls, infrastructure, transportation equipment, test and measurement instrumentation, and lighting applications.

Designed to withstand harsh atmospheres and large temperature ranges, the enclosure also prevents any electrical contact risks by isolating internal components. Its fibreglass reinforced polyester body ensures long service life without maintenance and is halogen free for environmental safety.

Constructed from fibreglass reinforced polyester for durability and insulation. Includes IP65 and IK09 ratings for protection against dust, water, and impact. Suitable for indoor and outdoor use in industrial, transportation, and infrastructure environments.

Features removable lid with screw locking and wall-mounting capability. Self-extinguishing at 960° C, ensuring fire safety. Complies with IEC 62208 and UL standards for electrical enclosures. One-piece moulded enclosure body and plain polyester cover included.

Insulation class II ensuring electrical safety and no contact risk. Green Premium enclosure design for sustainability. Ideal for general purpose electrical housing in various commercial and industrial uses. Explore the Electronics & Electricals category on EnvMart for a comprehensive selection of electrical enclosures and related industrial equipment.
