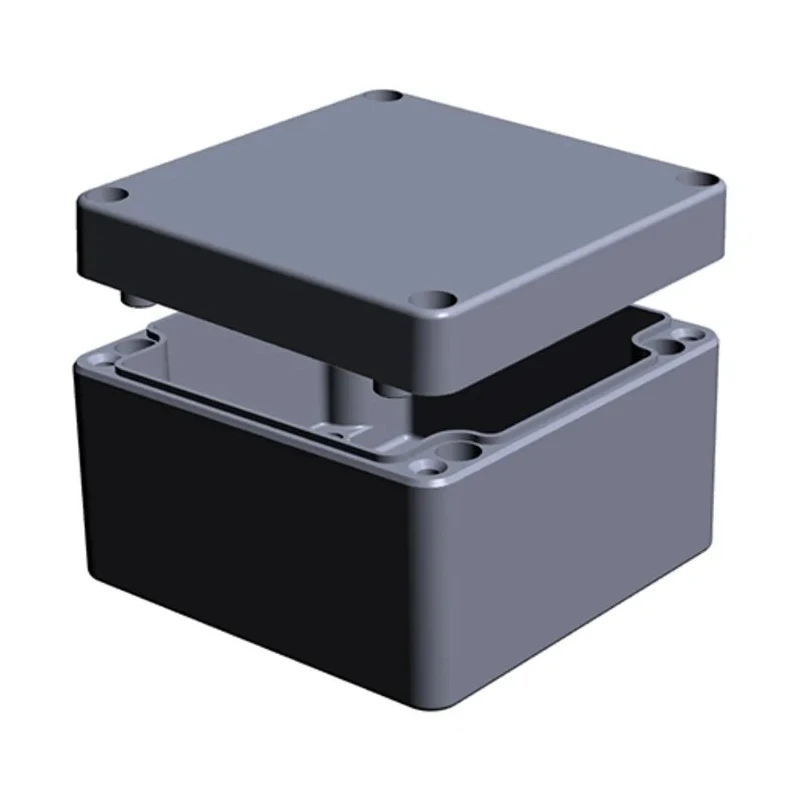

RS PRO Grey Lid Aluminium Enclosure, IP66, IK09, 81 mm x 122 mm x 122 mm IP66
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 122mm |
| External Height | 81mm |
| Shielding | Shielded |
| Hazardous Area Certification | ATEX, IECEx |
| External Length | 122mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
| RS PRO Grey Lid Aluminium Enclosure, IP66, IK09, 81 mm x 100 mm x 100 mmBrand | RS PRO |
Key Features
- Constructed from AISi 12 diecast aluminium for durability and strength.
- Grey powder coated finish enhances corrosion resistance.
- Certified for hazardous environments with ATEX and IECEx approvals.
- Rated at IP66 for excellent protection against dust and water ingress.
- Equipped with silicon gasket material ensuring tight sealing.
- Features stainless steel captive lid screws for secure mounting.
- Service temperature ranges from -50°C to 135°C, suitable for diverse conditions.
- Internal and external earthing capabilities support up to 120 mm² conductors.
Product Description
RS PRO presents the IP66 Grey Lid Aluminium Enclosure model IP66, crafted with high-quality AISi 12 aluminium. This diecast aluminium enclosure features a durable grey powder coated finish that ensures long-lasting corrosion resistance and suitability for harsh environments. The enclosure measures 81 mm in height, 122 mm in width, and 122 mm in length, making it compact yet versatile for numerous industrial applications.
Engineered to meet stringent standards, this enclosure holds ATEX and IECEx certifications for use in hazardous and explosive atmospheres, providing exceptional safety and compliance. It is rated IK09, indicating strong mechanical impact resistance, and IP66, which signifies dust tightness and protection against powerful water jets.
The silicon gasket material offers reliable sealing to prevent ingress of dust and moisture, suitable for vulnerable electrical components inside. Stainless steel captive lid screws secure the lid firmly, facilitating safe maintenance and installation operations.
The enclosure’s service temperature range from -50°C to 135°C allows dependable operation in extreme temperature environments. It supports internal and external earthing for conductors sized between 4 mm² and 120 mm², ensuring electrical safety across various installations.
This product is ideal for electric enclosures in process control systems, automation lines, mining equipment, locomotives, solar panel installations, and load cell protection. The package includes the enclosure body, its grey lid cover, and four cover screws for mounting.
Constructed from AISi 12 diecast aluminium providing strength and durability. Grey powder coated finish protects against corrosion and environmental damage. Certified ATEX and IECEx for use in explosive atmospheres ensuring safety compliance.
Rated IK09 for mechanical impact resistance and IP66 for dust and water ingress protection. Silicon gasket offers superb sealing performance against dust and moisture intrusion. Stainless steel captive lid screws ensure secure and reliable lid fastening.
Wide service temperature range from -50°C to 135°C for versatile applications. Internal and external earthing provision accommodates conductor sizes from 4 mm² to 120 mm². Suitable for automation, process control, mining, solar, and transportation industry applications.
Package includes enclosure body, cover, and 4 cover screws. Explore more RS PRO enclosures and components within EnvMart for reliable electrical protection solutions tailored to industrial, manufacturing, and commercial needs.
Explore more products in our Electrical Enclosure category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 81 mm in height, 122 mm in width, and 122 mm in length.
It is rated at IP66, providing excellent protection against dust and powerful water jets.
This enclosure is certified with ATEX and IECEx approvals for use in hazardous and explosive atmospheres.
The service temperature range is from -50°C to 135°C, allowing for operation in extreme conditions.
It is constructed from AISi 12 diecast aluminium with a grey powder coated finish for corrosion resistance.
The enclosure has an IK09 rating, indicating strong mechanical impact resistance.
It features a silicon gasket material that ensures tight sealing against dust and moisture ingress.
It supports internal and external earthing for conductors sized between 4 mm² and 120 mm².
The lid is secured with stainless steel captive lid screws, ensuring reliable fastening.
It is suitable for applications in process control systems, automation lines, mining equipment, and solar panel installations.
The enclosure is shielded, providing protection for vulnerable electrical components inside.
The country of origin for this enclosure is India.
