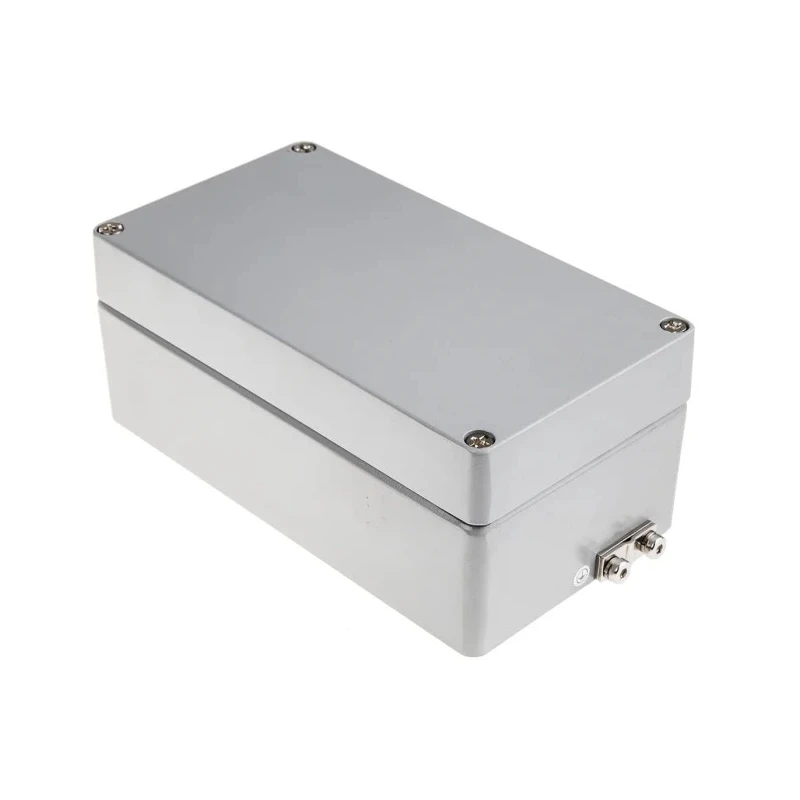

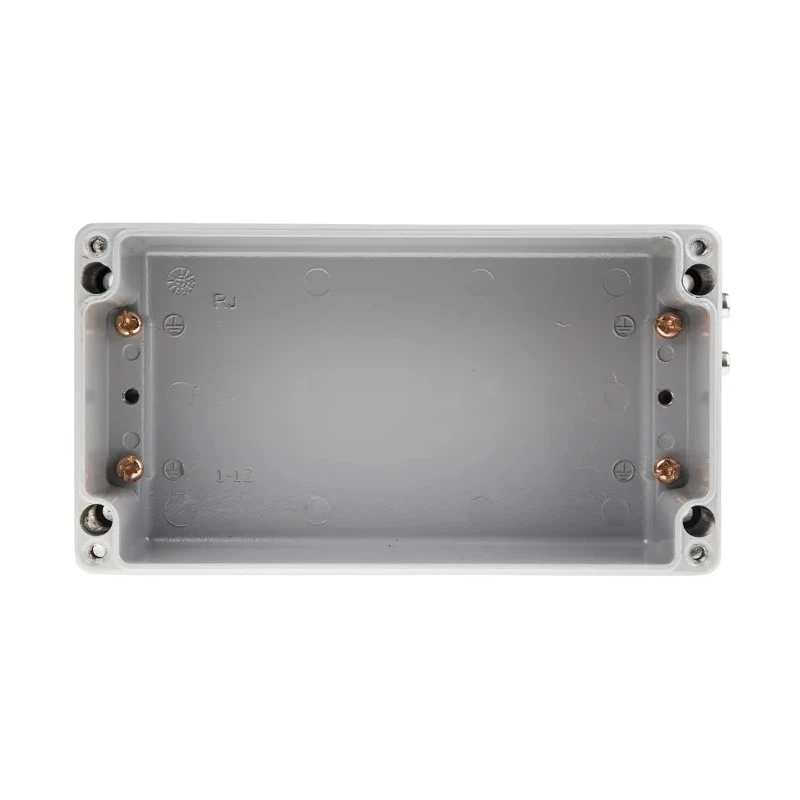

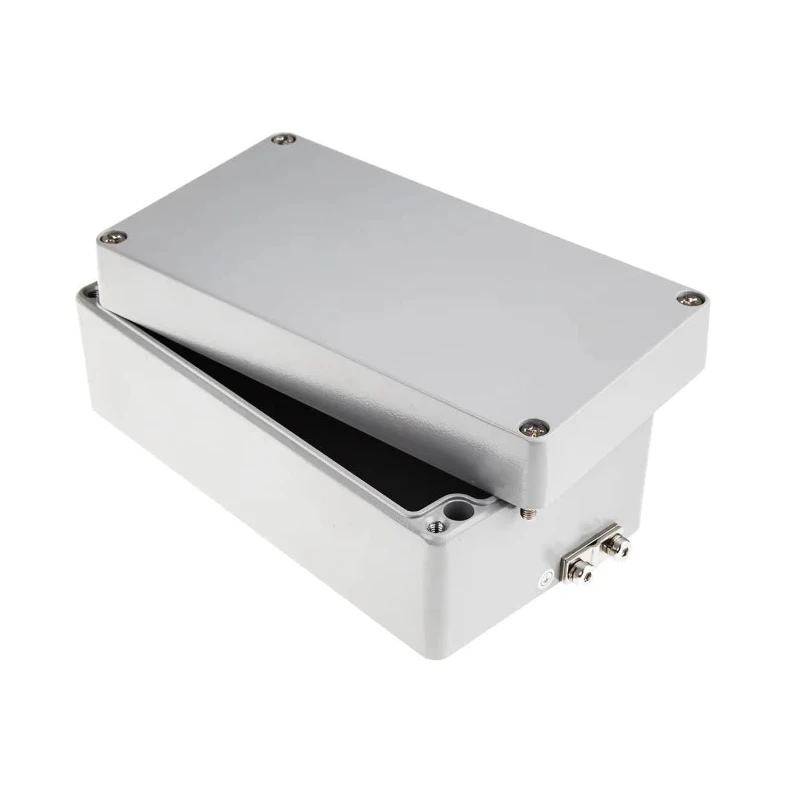

RS PRO Grey Lid Aluminium Enclosure IP66 IK09 90 mm x 220 mm x 220 mm IP66

RS PRO IP66 Grey Lid Aluminium Enclosure IP66 IK09 is a diecast aluminium enclosure designed for industrial and electrical applications requiring stringent protection against environmental factors. The enclosure measures 90 mm in height, 220 mm in width, and 220 mm in length, making it ideal for protecting sensitive electrical and automation components.

Its construction from AISi 12 aluminium base material, coupled with a robust grey powder coated finish, ensures excellent resistance to corrosion and mechanical stress. The enclosure is equipped with a silicon gasket providing a reliable seal to achieve an IP66 ingress protection rating, ensuring complete dust-tight protection and powerful water jet resistance.

Designed for use in demanding environments, it carries an IK09 impact rating, offering excellent protection against mechanical impacts. The enclosure is further enhanced by stainless steel captive lid screws that secure the cover firmly in place.

This enclosure holds multiple hazardous area certifications, including ATEX and IECEx, permitting its safe use in explosive atmospheres common in process control, mining, automation, and more. Compliance with international standards such as IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, and RoHS ensures quality and safety assurance.

The RS PRO enclosure is suitable for applications including locomotives, crane hoists, solar panels, load cells, oil meters, and high torque brakes. Its operating temperature range from -50°C to 135°C allows usage in a wide variety of environmental conditions. Internal and external earthing options enable enhanced electrical safety with connections for 4 mm² to 120 mm² earthing conductors.

Constructed from AISi 12 aluminium for strength and corrosion resistance. Grey powder coated finish offers durable surface protection. IP66 rating ensures dust-tight and powerful water jet protection. IK09 impact rating protects against mechanical shocks.

Silicon gasket provides effective sealing against moisture and dust. Includes stainless steel captive lid screws for secure fastening. ATEX and IECEx approvals for safe use in explosive atmospheres. Compliance with multiple international standards including IEC and RoHS.

Wide service temperature range from -50°C to 135°C. Internal and external earthing provisions for electrical safety.

This RS PRO enclosure supports robust housing solutions in industrial, laboratory, HVAC, construction, and manufacturing environments. Its protection levels and certifications make it suitable for process control systems and hazardous locations. Explore more products in general purpose enclosures on EnvMart.
