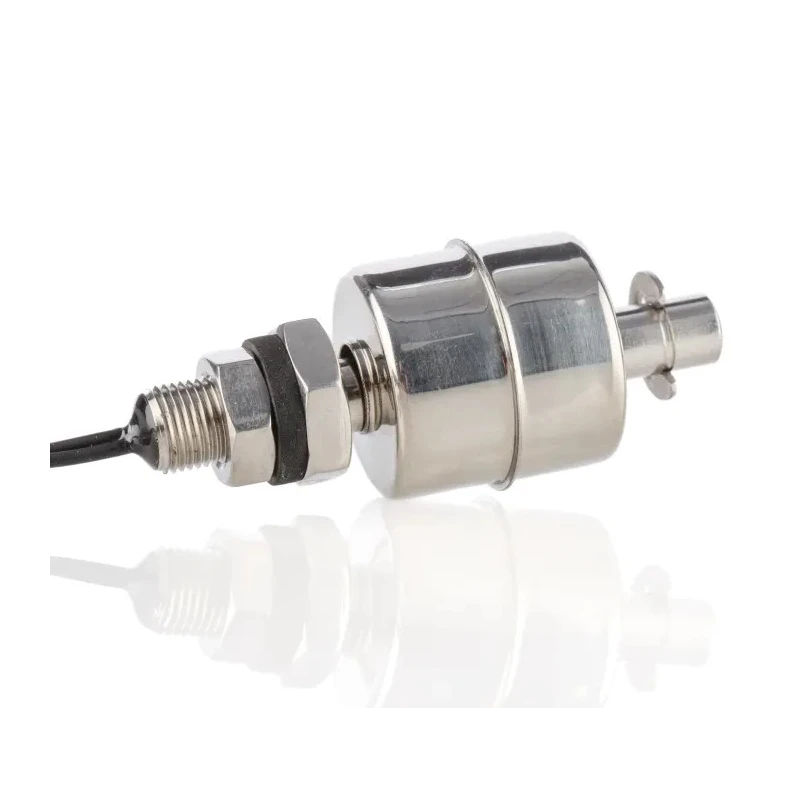

RS PRO Stainless Steel Vertical Float Switch 300 mm Cable Direct Load 300 V ac/dc Max 312-7164

RS PRO 312-7164 Stainless Steel Vertical Float Switch is specifically designed for industrial liquid level sensing and control. Made of 316 grade stainless steel, it provides excellent resistance to corrosion, making it reliable for harsh environments. The compact float switch measures 64 mm in height and 28 mm in diameter, making it suitable for internal fitting inside tanks.

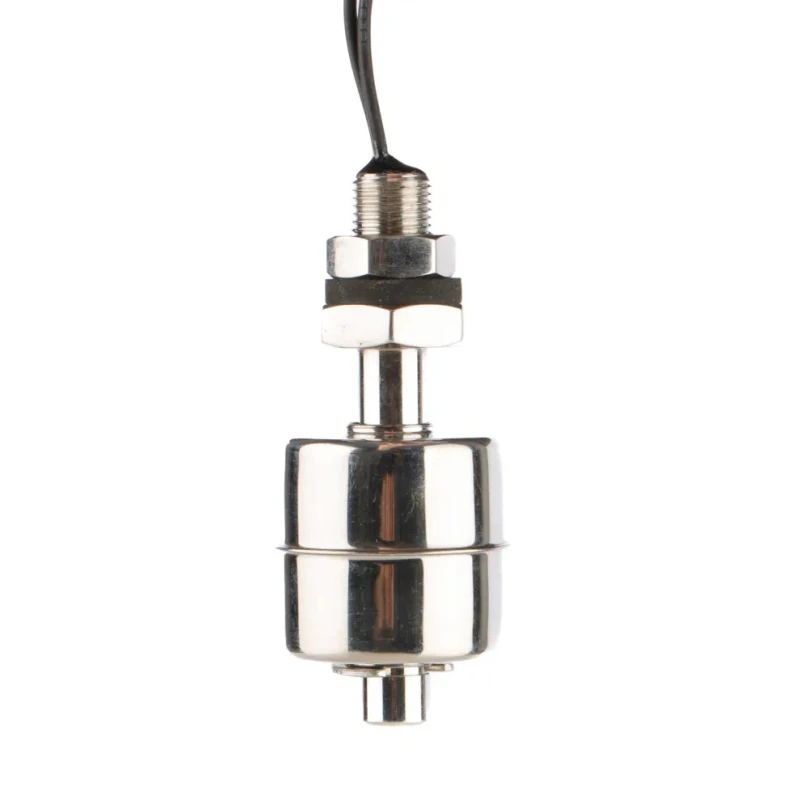

This float switch is mounted vertically from inside the tank, allowing installation either at the top or bottom, provided access is available. Users can reverse the switching action easily by removing, inverting, and refitting the float on the stem, thereby offering flexibility in control logic.

The RS PRO 312-7164 comes with a durable 3-meter long XLPE insulated AWG22 cable. It is crucial that the cable entry point is not submerged during installation to prevent damage. On vertical switches, the cable entry and mounting thread must remain above the maximum level of the liquid to ensure safe operation.

Designed for applications up to a maximum AC or DC voltage of 300 V and a maximum current of 500 mA, this float switch also withstands operating pressures up to 10 bar. It operates reliably within a temperature range from -10°C to 120°C, suitable for many industrial and commercial water and liquid level monitoring applications.

This vertical float switch offers robust corrosion resistance with its 316 stainless steel housing. The device includes a 3 m XLPE cable suitable for demanding industrial environments. Switching action can be reversed by adjusting the float position on the stem.

Suitable for mounting inside tanks, either at the top or bottom. Designed for maximum AC/DC voltage ratings of 300 V and current up to 500 mA. The operating temperature makes it adaptable for a variety of environmental conditions.

Compact size allows installation in limited spaces inside tanks.

This float switch is widely used in industrial automation, water treatment plants, HVAC systems, and manufacturing processes requiring precise liquid level control. Its durable construction and flexible mounting make it an ideal choice for reliable sensing and switching in diverse applications.
