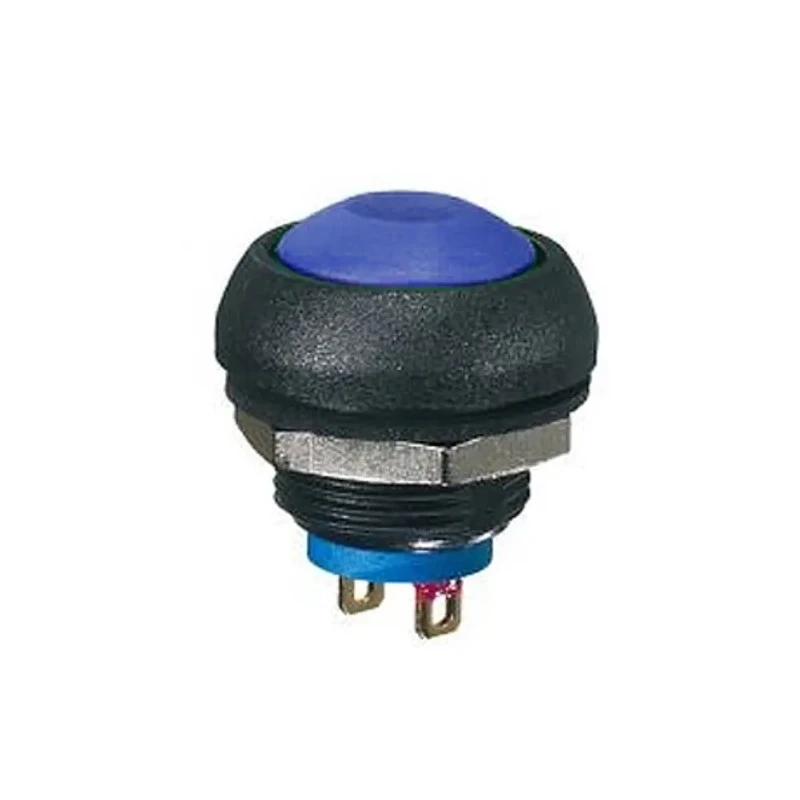

APEM IB Series Miniature Momentary Push Button Switch, Blue Round Actuator, Panel Mount, 13.6 mm Cutout, SPST IBR3SADB00
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IBR3SADB00 |
| IP Rating | IP54 |
| Mount Type | Panel |
| Series | IB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 32V |
| Actuator Style | Round |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 32V ac |
Key Features
- Features a blue, round actuator with 13.6 mm panel cutout size.
- Single Pole Single Throw (SPST) switch configuration with normally open contacts.
- Operates at a contact voltage of 32 V AC and DC with 100 mA contact current rating.
- Constructed with plastic button and case ensuring light and compact form factor.
- Complies with international standards including IEC 512-4, IEC 512-6, IEC 60529, and UL recognitions.
- Terminal type is solder lug with epoxy terminal seal for enhanced reliability.
- Designed for operating temperatures from -40°C to 85°C.
- IP54 rating provides protection against ingress of dust and limited water spray.
Product Description
APEM IBR3SADB00 miniature push button switch is a momentary panel-mount device designed for reliable switching applications in industrial, electrical, and automation sectors. Featuring a blue, round actuator and a compact 13.6 mm panel cutout, it provides excellent tactile feedback and ergonomic operation.
This SPST (Single Pole Single Throw) switch configuration with normally open contacts supports both AC and DC contact voltages up to 32 V and a contact current of 100 mA. The plastic button and case construction offers a lightweight yet robust design suitable for space-constrained installations.
The switch is sealed to IP54 standards, protecting against dust ingress and water splashes, making it suitable for moderately harsh environments. The epoxy terminal seal enhances terminal reliability, while the solder lug terminals facilitate secure wiring connections.
Certified to meet IEC 512-4, IEC 512-6, IEC 60529, and UL standards, the device complies with stringent quality and safety requirements. It operates reliably within a wide temperature range from -40°C to 85°C, supporting diverse environmental conditions.
Manufactured in France, the switch delivers premium quality and durability. Its shallow behind-panel depth and compact size allow ease of integration into control panels and machinery, making it ideal for laboratory instruments, automation equipment, HVAC controls, and general electrical applications.
Features a blue, round actuator with 13.6 mm cutout size. Momentary switch operation with SPST normally open contact configuration. Supports contact voltages up to 32 V AC/DC and 100 mA current. Plastic construction with epoxy terminal seal for durability.
IP54 protection rating against dust and water spray. Solder lug terminal type for reliable connections. Certified to IEC and UL standards. Operating temperature range from -40°C to 85°C. Compact and lightweight panel-mount design.
APEM IB Series switches are engineered to deliver solid tactile feedback and robust performance required in industrial and electrical control systems. Discover a broad range of high-quality switches and components in the EnvMart electronics and electrical catalog for your application needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration with normally open contacts.
It supports a maximum contact voltage of 32 V AC and DC.
The contact current rating for this unit is 100 mA.
The required panel cutout size for this switch is 13.6 mm.
It has an IP54 rating, providing protection against dust and limited water spray.
This model operates reliably within a temperature range of -40°C to 85°C.
The switch features solder lug terminals for secure wiring connections.
It is manufactured in France.
The actuator is blue and has a round style.
It operates as a momentary switch.
It complies with IEC 512-4, IEC 512-6, IEC 60529, and UL standards.
This switch is suitable for applications in industrial, electrical, and automation sectors, including control panels and machinery.
