Wurth Elektronik WR-FPC 1 mm Pitch 15 Way Horizontal Female FPC Connector ZIF Bottom Contact 686115148922

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-FPC 1 mm Pitch 15 Way Horizontal Female FPC Connector ZIF Bottom Contact 686115148922

Name: Wurth Elektronik WR-FPC 1 mm Pitch 15 Way Horizontal Female FPC Connector ZIF Bottom Contact 686115148922
Brand: Wurth Elektronik
SKU: 140465
Price: 20.22 USD
Availability: InStock



Category Electrical Connectors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	100, 100V ac
Brand	Wurth Elektronik
Orientation	Horizontal
Current	1A
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Phosphor Bronze
Series	WR-FPC
Termination Type	ZIF Bottom Contact
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin over Nickel
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Contact Position	Bottom

Key Features

Features a 15-contact layout providing reliable electrical performance.
Constructed with phosphor bronze contacts plated with tin over nickel for durability.
Includes a flip-lock hinge actuator for secure cable retention.
Designed for surface mount technology (SMT) on PCBs with a low profile.
Operates reliably between -40°C to 105°C in various electronic applications.
Supports current up to 1 ampere and voltage up to 100 volts AC.
Housing made from robust Polyamide 6T material ensures mechanical stability.
Locking mechanism ensures a secure connection to FPC/FFC cables without additional mating connectors.

Product Description

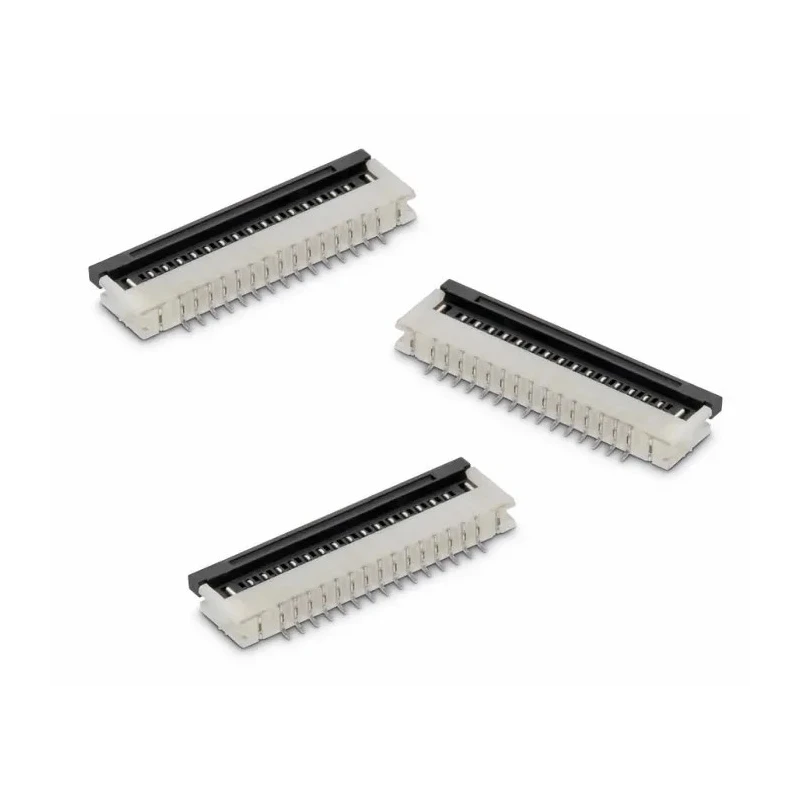

Wurth Elektronik 686115148922 is a 1 mm pitch 15 way horizontal female FPC connector featuring ZIF bottom contact technology. This surface mount connector is designed for high-density, secure connections in compact electronic devices and PCB assemblies.

The phosphor bronze contacts plated with tin over nickel provide excellent electrical conductivity and corrosion resistance. The hinged flip-lock actuator secures the flexible printed circuits firmly and enables easy insertion and removal without damaging the contacts.

With operating temperature range from -40°C to 105°C, it is suitable for industrial and commercial electronics environments requiring reliable performance under varied thermal conditions. The Polyamide 6T housing provides mechanical strength and insulates electrical contacts.

This FPC connector supports up to 1 ampere of current and up to 100 volts AC, making it ideal for signal and low power applications. The locking mechanism assures no accidental disconnection, providing dependable cable retention.

Typical applications include connections to small displays, keyboards, and other miniaturized electronic modules where space constraints and reliable electrical contact are critical. The connector's low profile and lightweight design facilitate compact PCB designs.

Features a 15-contact layout providing reliable electrical performance. Constructed with phosphor bronze contacts plated with tin over nickel for durability. Includes a flip-lock hinge actuator for secure cable retention.

Designed for surface mount technology (SMT) on PCBs with a low profile. Operates reliably between -40°C to 105°C in various electronic applications. Supports current up to 1 ampere and voltage up to 100 volts AC. Housing made from robust Polyamide 6T material ensures mechanical stability.

Locking mechanism ensures a secure connection to FPC/FFC cables without additional mating connectors.

This Wurth Elektronik FPC connector is an ideal choice for industrial, laboratory, electronics manufacturing, and commercial applications requiring compact, secure flexible cable connections. Explore the full range of high-quality PCB connectors on EnvMart.

Explore more products in our Electrical Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The pitch of this connector is 1 mm, which allows for high-density connections in compact electronic devices.

It supports a maximum current of 1 ampere and a voltage of up to 100 volts AC, making it suitable for signal and low power applications.

The contacts are made of phosphor bronze and are plated with tin over nickel for enhanced electrical conductivity and corrosion resistance. The housing is constructed from Polyamide 6T material for mechanical stability.

It operates reliably between -40°C to 105°C, making it suitable for various electronic applications in different thermal conditions.

This model is designed for surface mount technology (SMT) on PCBs, allowing for low-profile installations.

It features a 15-contact layout, providing reliable electrical performance in compact designs.

The connector is designed with a horizontal orientation, suitable for specific PCB layouts and space constraints.

Typical applications include connections to small displays, keyboards, and other miniaturized electronic modules where reliable electrical contact is critical.

The termination type is ZIF (Zero Insertion Force) bottom contact, allowing for easy insertion and removal of flexible printed circuits.

This connector has a single row configuration, which is common in compact electronic connections.

The country of origin for this connector is China.
