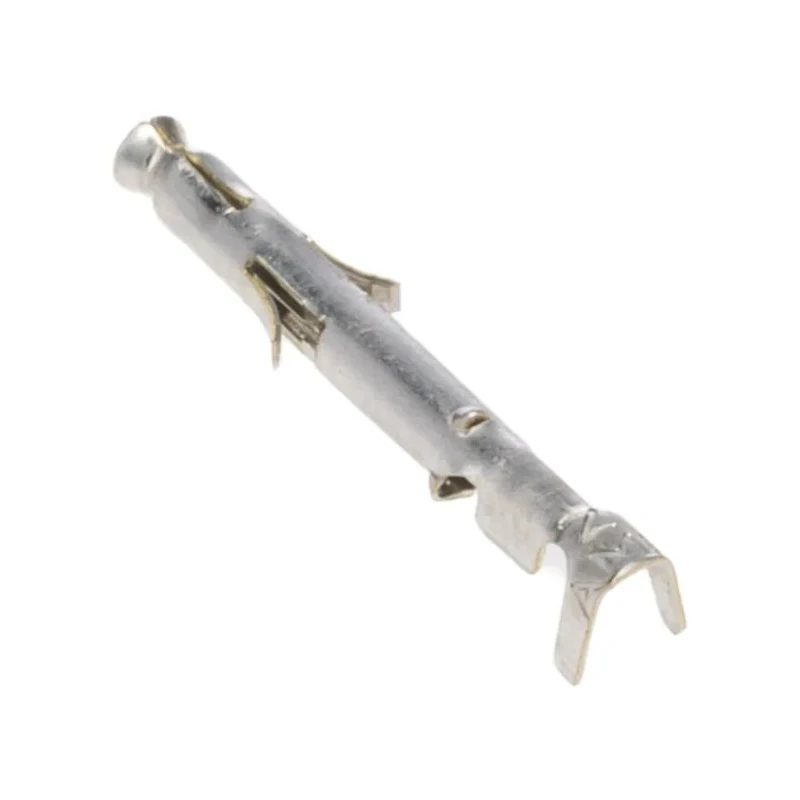

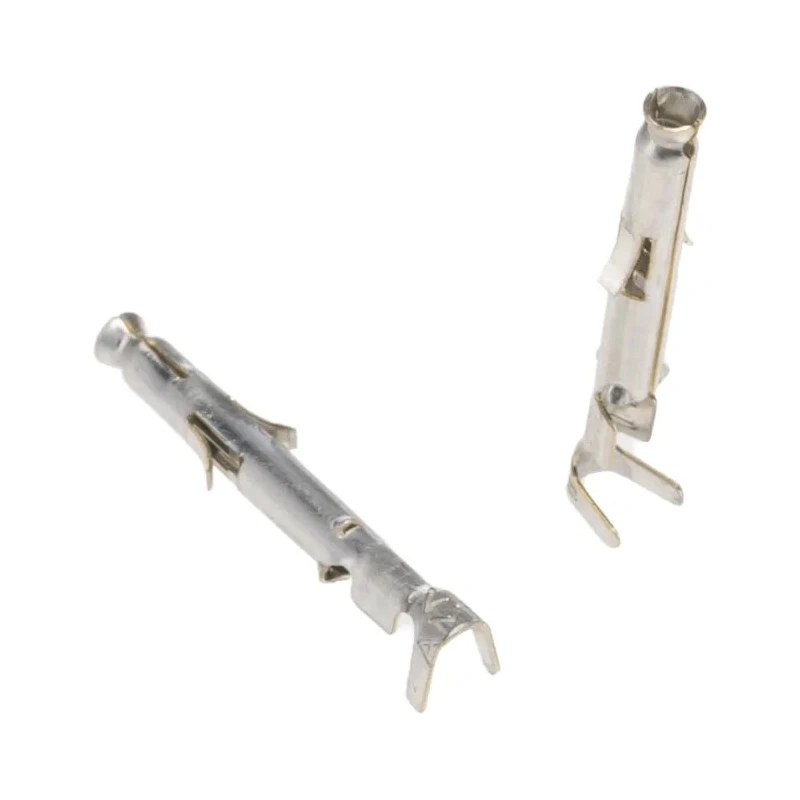

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG Tin Plated Brass 170365-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG Tin Plated Brass 170365-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG Tin Plated Brass 170365-1
Brand: TE Connectivity
SKU: 144525
Price: 0.15 USD
Availability: InStock



Category Electrical Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Current	7A
Model	170365-1
Gender	Female
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

Compatible with Mini-Universal MATE-N-LOK Connector Housing systems.
Constructed from brass with tin plating for reliable conductivity and corrosion resistance.
Supports wire sizes from 26 AWG to 22 AWG.
Provides a continuous current rating of 7 amperes at 600 Vac/dc.
Operates within a temperature range of -20°C to 105°C.
Crimp termination type ensures secure mechanical and electrical connections.
Features a maximum contact resistance of 10 milliohms for minimal energy loss.
Suitable for applications in consumer electronics, commercial HVAC, and power supplies.

Product Description

TE Connectivity 170365-1 Mini-Universal MATE-N-LOK Series Female Crimp Terminal is a precision-engineered component for electrical and electronic connections, supporting wire sizes from 26 AWG (0.1 mm²) minimum to 22 AWG (0.35 mm²) maximum. The brass contact with tin plating ensures excellent conductivity, corrosion resistance, and durability in demanding applications.

This female crimp terminal is designed to mate with Mini-Universal MATE-N-LOK Connector Housings, forming a reliable wire-to-wire connection system. It supports a continuous current rating of 7 amperes and can operate within a temperature range of -20°C to 105°C, suitable for industrial, commercial, and consumer electronics environments.

The termination type is crimp, providing a secure mechanical and electrical connection essential for maintaining signal integrity and power delivery. Its maximum contact resistance of 10 milliohms ensures minimal energy loss and high efficiency.

Operating voltage rating is 600 Vac/dc, making it suitable for a broad range of applications including HVAC systems, power supplies, portable devices, lighting systems, medical equipment, and security installations.

Manufactured in China by TE Connectivity, a recognized leader in electronic connector technologies, this contact meets the demanding requirements of modern electronics manufacturing and design.

Compatible with Mini-Universal MATE-N-LOK Connector Housing systems. Made from brass with tin plating for enhanced performance. Supports wire sizes from 26 AWG to 22 AWG. 7A continuous current capacity at 600 Vac/dc. Operating temperature range: -20°C to 105°C.

Crimp termination type for secure connections. Low contact resistance of 10 milliohms. Ideal for consumer electronics, commercial HVAC, power supplies, and medical devices.

This product is suited for various industrial and commercial applications where dependable and efficient electrical connections are mandatory. Discover the full range of TE Connectivity products at EnvMart for your electronic component needs.
