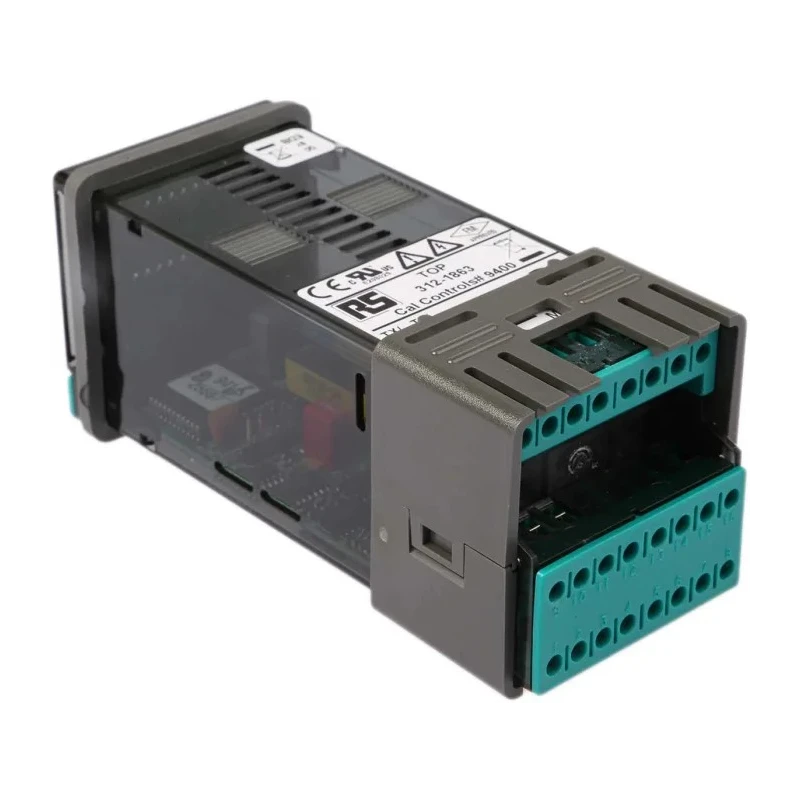

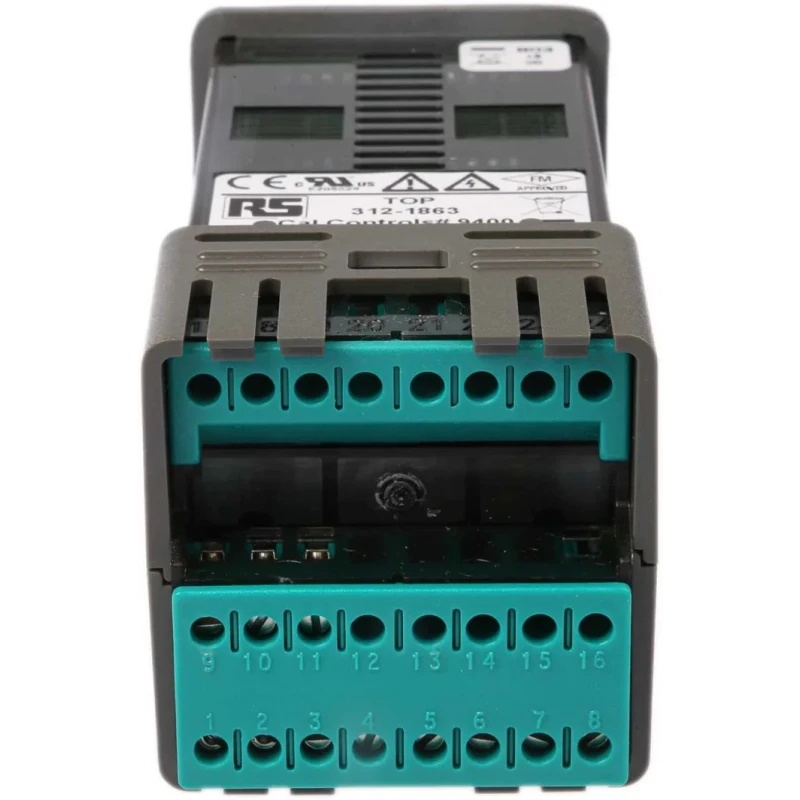

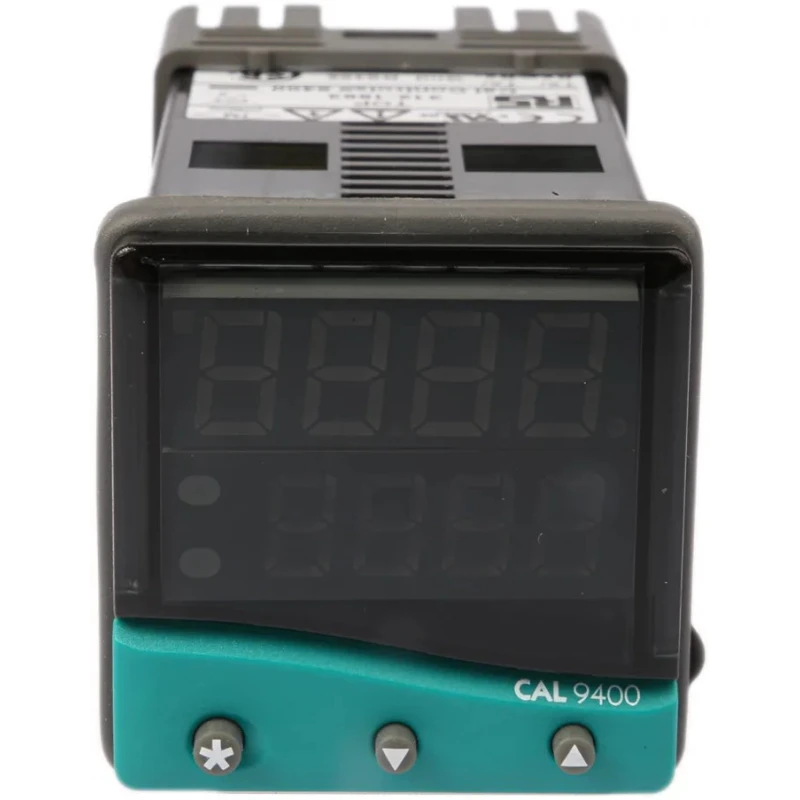

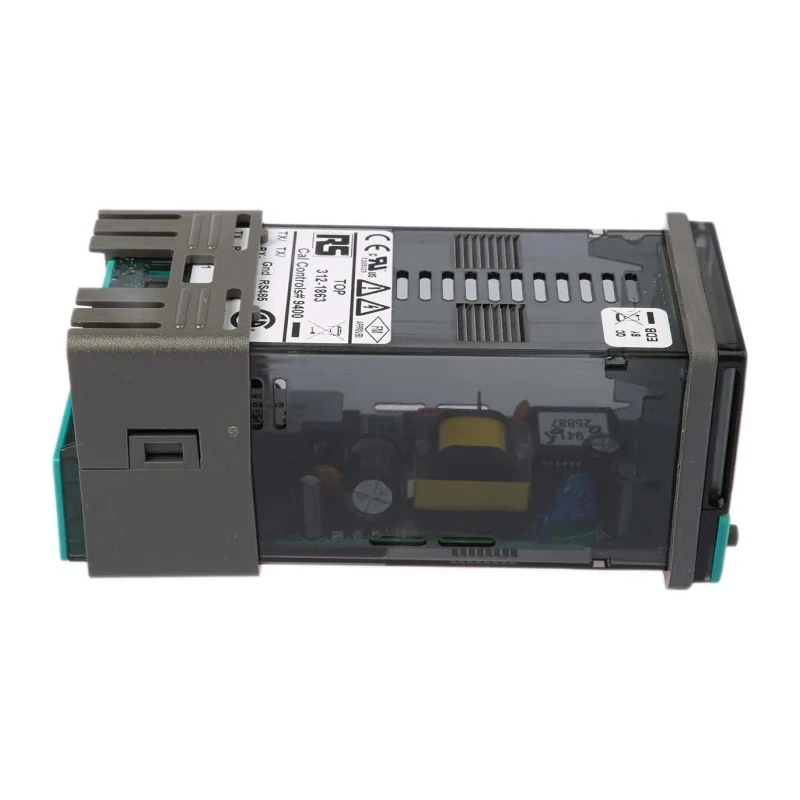

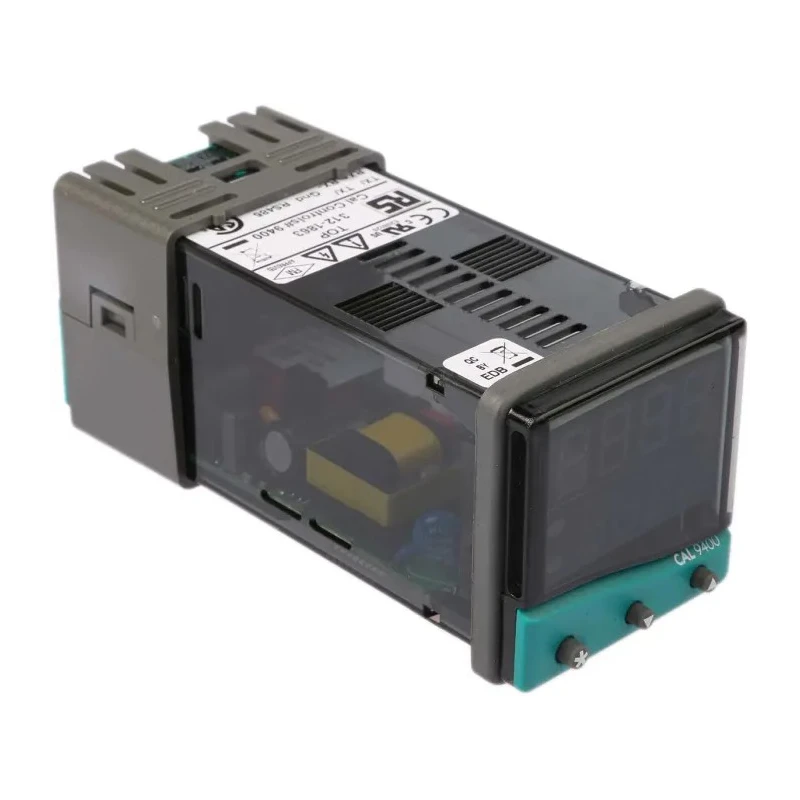

RS PRO 9400 Panel PID Temperature Controller 2 Output SSD Relay 240V ac 48mm x 48mm 106.7mm Depth 20mA Max Current 940000009
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Length | 48mm |
| IP Rating | IP66 |
| Width | 48mm |
| Mount Type | Panel |
| Output type | SSD, Relay |
| Series | 9400 |
| Input Type | Thermocouple, PT100 |
| Maximum Operating Temperature | 50°C |
| Control Type | Temperature Control |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 20mA |
| Number of outputs | 2 |
| Standards/Approvals | UL, FM, cUL, CE |
| Maximum Supply Voltage | 240V ac |
| Panel Depth | 106.7mm |
Key Features
- Features a compact 48mm x 48mm panel mount design with 106.7mm depth.
- Equipped with one 2A SSD output and one relay output for versatile control.
- Operates within 0°C to 50°C temperature range for robust industrial use.
- Accepts various input types including thermocouple and PT100 sensors.
- Offers a 4-digit LED display with two output indicator LEDs for clear status monitoring.
- Supports auto tuning and CALgrafix software for efficient configuration and data logging.
- Constructed with an impact-resistant smoked fascia and rubberized buttons for durability.
- Complies with UL, FM, cUL, and CE standards for safety and reliability.
Product Description
CAL 940000009 is a high-performance Panel PID Temperature Controller designed for precise temperature control in industrial, manufacturing, and process control environments. Featuring a 48mm by 48mm size and a panel depth of 106.7mm, this compact device integrates seamlessly into control panels while delivering robust operation.
This controller includes two outputs: a 2A Solid State Device (SSD) output and a relay output. It accepts inputs from multiple sensor types such as nine thermocouple classes and PT100 RTD sensors, allowing versatile application across varied temperature measurement requirements. The LED display provides a clear 4-digit output with associated status LEDs for ease of user interface.
The CAL 940000009 utilizes advanced PID control for minimal overshoot and stable temperature regulation. It is equipped with simple auto tuning capabilities and supports the CALgrafix software for configuration and data logging, facilitating efficient setup and ongoing monitoring.
Durability is ensured through its impact-resistant smoked fascia with rubberized buttons, offering positive tactile feedback in demanding industrial environments. The controller operates reliably between 0°C and 50°C and supports a maximum supply voltage of 240V AC with a maximum current of 20mA.
Certified to UL, FM, cUL, and CE standards, and rated IP66, this controller withstands dust and water ingress, making it suitable for harsh process environments. Its panel mounting design and high ingress protection make it ideal for rigorous industrial, laboratory, HVAC, and manufacturing applications requiring precise temperature management.
Compact 48mm x 48mm panel mount size with 106.7mm depth. Two output types: 2A SSD and relay. Input options include thermocouple and PT100 sensors. 4-digit LED display with output status LEDs. Advanced PID tuning and CALgrafix software compatibility.
Impact-resistant fascia with rubberized buttons. Operating temperature range: 0°C to 50°C. Maximum supply voltage: 240V AC; maximum current: 20mA. Certifications: UL, FM, cUL, CE. IP66 rated for dust and water ingress protection.
Manufactured in the United Kingdom. Explore the full range of Temperature Controllers and process control equipment at EnvMart for industrial-grade automation and measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a compact size of 48mm x 48mm with a panel depth of 106.7mm, making it suitable for panel mounting in various applications.
It accepts inputs from various sensor types including nine classes of thermocouples and PT100 RTD sensors, allowing for versatile temperature measurement.
The operating temperature range for this controller is from 0°C to 50°C, making it suitable for a wide range of industrial applications.
This model includes two output types: a 2A Solid State Device (SSD) output and a relay output for flexible control options.
The maximum supply voltage is 240V AC, and it supports a maximum current of 20mA.
This temperature controller is certified to UL, FM, cUL, and CE standards, ensuring safety and reliability in industrial environments.
It has an IP66 rating, providing protection against dust and water ingress, making it suitable for harsh process environments.
Yes, it features auto tuning capabilities, which help in achieving minimal overshoot and stable temperature regulation.
It is equipped with a 4-digit LED display that provides clear output readings along with two output indicator LEDs for status monitoring.
The controller is constructed with an impact-resistant smoked fascia and rubberized buttons, designed for durability in demanding environments.
It supports CALgrafix software, which facilitates efficient configuration and data logging for monitoring purposes.
This temperature controller is manufactured in the United Kingdom, ensuring adherence to rigorous quality standards.
