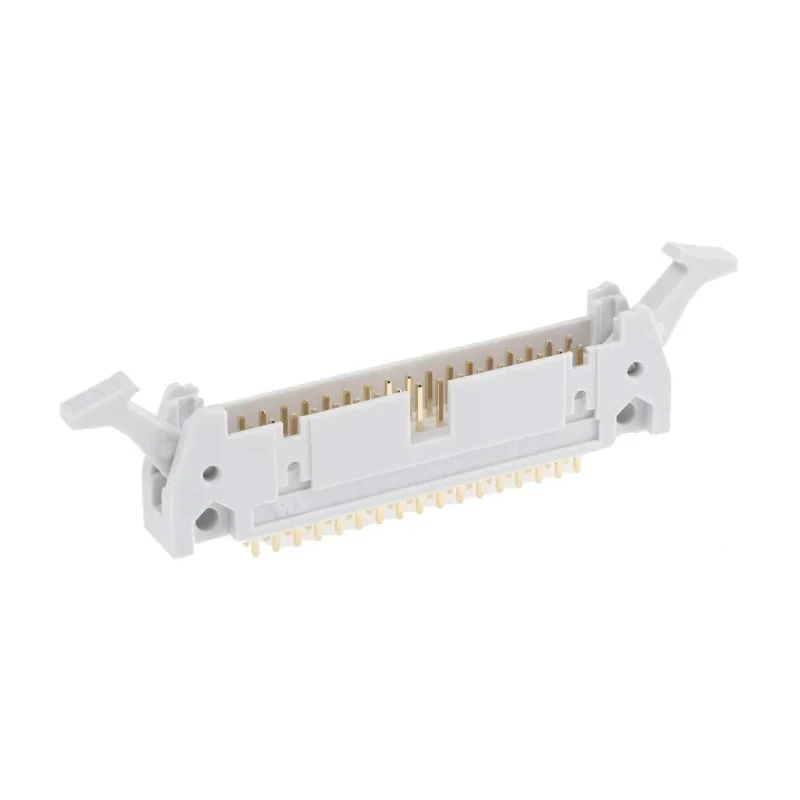

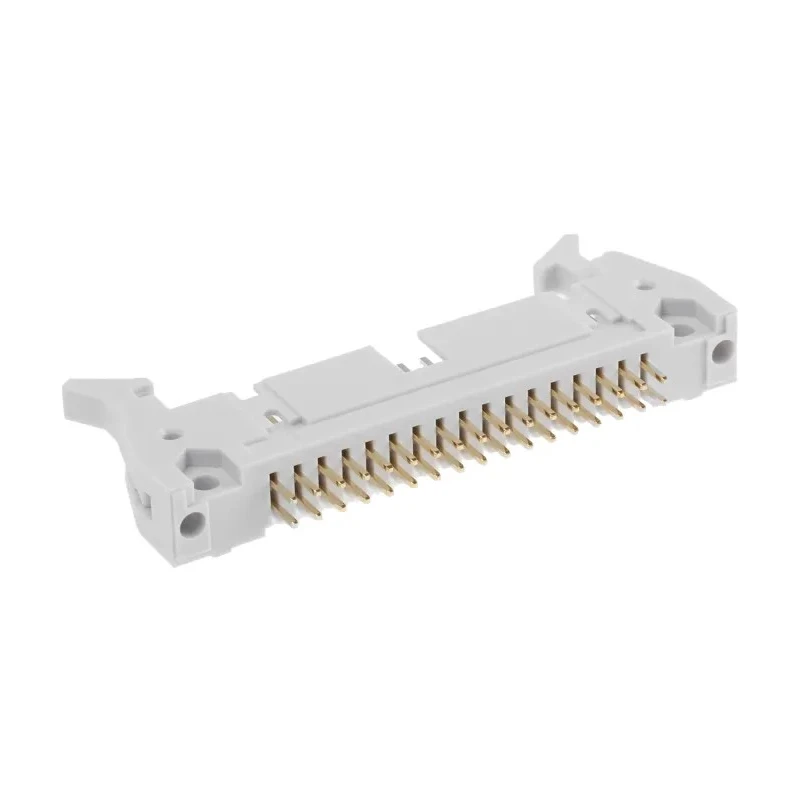

RS PRO Straight Through Hole PCB Header, 34 Contacts, 2.54 mm Pitch, Shrouded, Gold Plated Brass Contacts 471-070
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 471-070 |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| 34 way markII IDC unpolarised plug,1ABrand | Amphenol |
| RS PRO 34-Way IDC Connector Plug Through Hole Mount, 2-RowBrand | RS PRO |
Key Features
- Features 34 gold-plated brass male contacts for excellent conductivity.
- Mount type is through hole ensuring strong mechanical connection.
- Polymer housing is UL94V rated for flame resistance and durability.
- Operating temperature range from -45°C to 105°C suitable for harsh environments.
- Shrouded design protects contacts and allows secure mating with connectors.
- Compatible with BS9525-F0023 connectors for universal use.
- Suitable for industrial automation, consumer electronics, and prototype development.
- High quality manufactured in Taiwan with reliable performance standards.
Product Description
RS PRO 471-070 Straight Through Hole PCB Header is a high-quality electronic component featuring 34 male contacts arranged with a standard 2.54 mm pitch. The contacts are made of brass with gold plating for enhanced electrical conductivity and corrosion resistance. The housing is a flame-retardant polymer compliant with UL94V, ensuring durability and safety in various industrial and consumer applications.
This PCB header is designed for through-hole mounting, providing robust mechanical and electrical connection to the printed circuit board. It features a shrouded design which offers protection for the contacts and facilitates secure and reliable mating with corresponding connectors.
Operating temperature range for the header spans from -45°C up to 105°C, making it suitable for use in harsh and demanding environments such as industrial automation, prototype development, medical equipment, and consumer electronics.
RS PRO 471-070 PCB Header complies with BS9525-F0023 connector standards, ensuring compatibility with a wide range of IDC ribbon cable sockets and connectors. This component is manufactured in Taiwan and upholds high-quality standards for reliable performance in electronic assemblies.
34 gold flash plated brass male contacts provide excellent conductivity. Shrouded construction protects contacts and improves connection reliability. Polymer housing rated UL94V for safety and flame resistance. Through-hole mount type ensures secure soldering to PCB.
Wide operating temperature range from -45°C to 105°C. Compatible with BS9525-F0023 connectors and ribbon cable sockets. Used in industrial, commercial, and medical electronic applications.
This product suits various PCB connection needs in industrial, laboratory, medical, and consumer electronics contexts. Explore more PCB Headers and electronic components from trusted brands like RS PRO at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm, which is a standard size for many electronic connections.
This model features 34 gold-plated brass male contacts, providing excellent electrical conductivity.
The maximum operating temperature for this PCB header is 105°C, making it suitable for various demanding applications.
This PCB header uses through-hole mounting, ensuring a strong mechanical connection to the printed circuit board.
The housing is made of flame-retardant polymer compliant with UL94V, and the contacts are made of brass with gold plating.
Yes, it is compatible with BS9525-F0023 connector standards, allowing for universal use with various IDC ribbon cable sockets.
The minimum operating temperature for this unit is -45°C, which allows it to function in harsh environments.
The termination type for this PCB header is solder, which is standard for secure electrical connections.
The orientation of the contacts in this model is straight, facilitating straightforward connections.
This PCB header has a current rating of 1A, suitable for various electronic applications.
This PCB header is suitable for industrial automation, consumer electronics, and prototype development among other applications.
This product is manufactured in Taiwan, adhering to high-quality standards for reliable performance.
