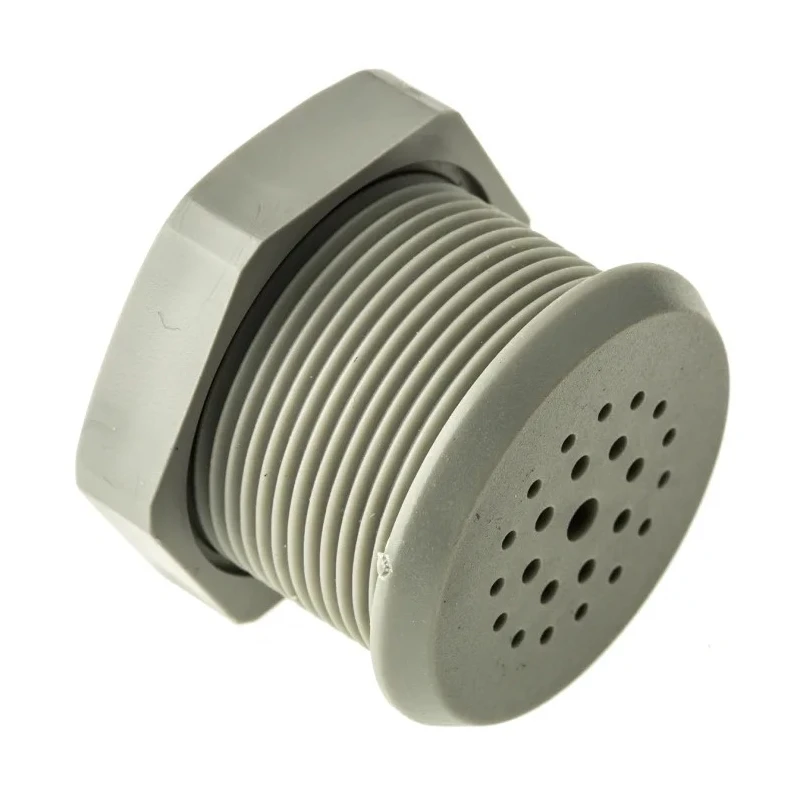

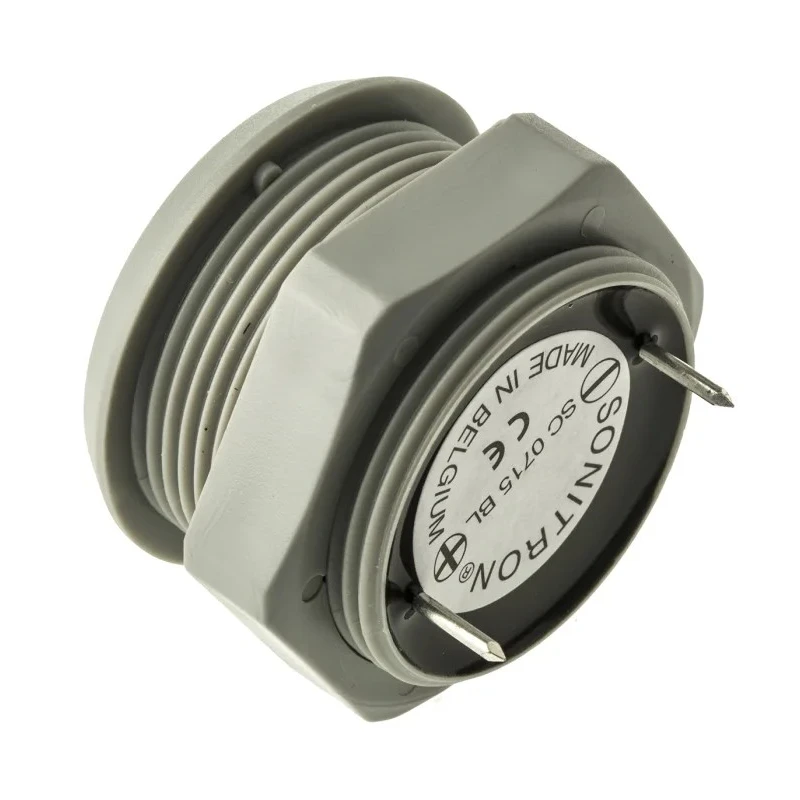

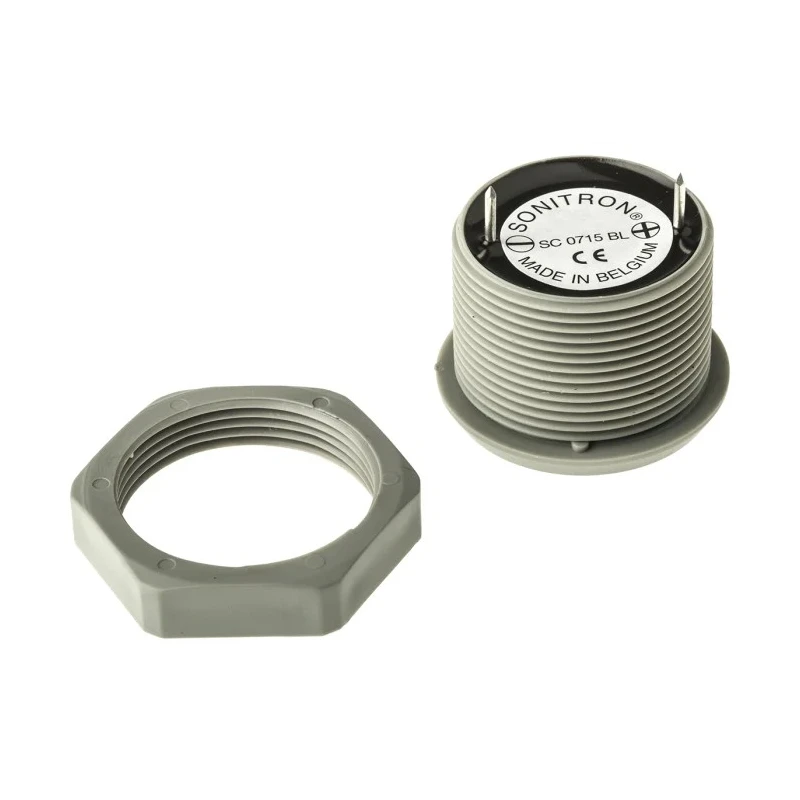

Sonitron 98 dB Panel Mount Sweep Intermittent Warbler Continuous Internal Buzzer 33.5 mm Height 140 mm Length SC0715BL
Specifications
| Country of Origin | Belgium |
|---|---|
| Diameter | 36.5mm |
| Brand | Sonitron |
| Sound Level | 98dB |
| Height | 33.5mm |
| Length | 140mm |
| Model | SC0715BL |
| Drive Type | Internal |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -35°C |
| Standards/Approvals | MIL STD202, IP67, UL 94 HB, NATO Approved |
| Maximum Frequency | 4.025kHz |
| Maximum Supply Voltage | 15V dc |
| Minimum Supply Voltage | 0.7V dc |
| Supply Current | 13.4mA |
| Tone Type | Sweep, Intermittent, Warbler, Continuous |
| Minimum Frequency | 2975Hz |
Key Features
- This buzzer operates with a minimum supply voltage of 0.7 V dc and a maximum supply voltage of 15 V dc.
- It features a robust panel mount design with PCB pin connections for easy installation.
- The buzzer diameter is 36.5 mm with a height of 33.5 mm and length of 140 mm.
- Designed to operate in harsh environments, it complies with MIL STD202, IP67, UL 94 HB, and NATO standards.
- The device operates within a temperature range of -35°C to 75°C ensuring reliable performance.
- Supply current is 13.4 mA with frequency ranging from 2975 Hz to 4.025 kHz for versatile audio signals.
- Originating from Belgium, this buzzer is ideal for electronic, industrial, and commercial panel applications.
Product Description
Sonitron SC0715BL is a high-performance panel mount buzzer designed for electronic and industrial applications. Delivering a strong 98 dB sound output, it supports multiple tone types including Sweep, Intermittent, Warbler, and Continuous, making it suitable for diverse alert signals.
The buzzer operates efficiently with a minimum supply voltage of 0.7 V dc and can handle up to 15 V dc, driven internally by an integrated circuitry optimized for panel mount installation with PCB pin connectors.
Physically, it has a diameter of 36.5 mm, length of 140 mm, and height of 33.5 mm, allowing easy integration into control panels and electronic assemblies where space-conscious mounting is crucial.
This unit meets demanding industry standards such as MIL STD202, IP67 rating for dust and water resistance, UL 94 HB flame retardancy, and NATO approvals, ensuring robust durability in harsh environments with operating temperatures ranging from -35°C to 75°C.
The buzzer draws 13.4 mA current and provides frequency output between 2975 Hz and 4.025 kHz. Such versatility enables it to serve in alarms, signalling, and warning systems within industrial machines, automation equipment, HVAC systems, manufacturing lines, and safety installations.
High sound level of 98 dB for audible alerts. Multi-tone capability: Sweep, Intermittent, Warbler, Continuous. Compact panel mount design with PCB pin connections. Robust standards compliance: MIL STD202, IP67, UL 94 HB, NATO Approved.
Wide operating temperature range from -35°C to 75°C. Operating voltage range from 0.7 V dc to 15 V dc. Designed for reliable industrial and commercial use cases.
This Sonitron panel mount buzzer SC0715BL is suited for use in electronics manufacturing, industrial control panels, security systems, and any environment requiring reliable sound signaling. Browse similar Piezo Buzzers and Sounder components on EnvMart for comprehensive solutions to your application needs.
