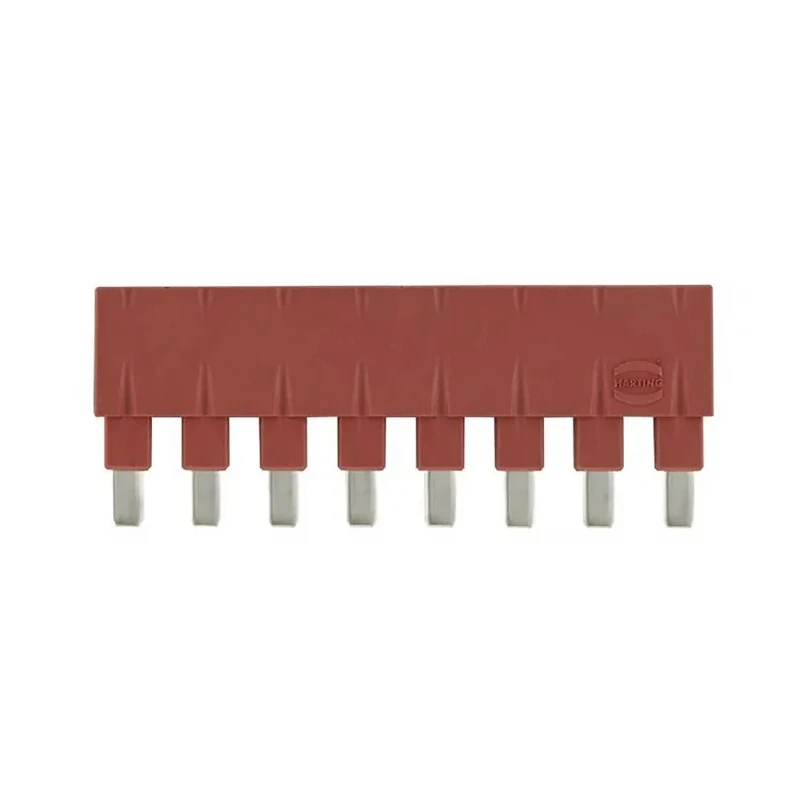

HARTING Plug-In Jumper Han ES Press Series 8 Way for Han E, Han ES, Han ESS Connectors 16A, 500V 09330009836

Free Delivery in India | Lowest Global Shipping Charges

HARTING Plug-In Jumper Han ES Press Series 8 Way for Han E, Han ES, Han ESS Connectors 16A, 500V 09330009836

Name: HARTING Plug-In Jumper Han ES Press Series 8 Way for Han E, Han ES, Han ESS Connectors 16A, 500V 09330009836
Brand: HARTING
SKU: 139274
Price: 11.02 USD
Availability: InStock



Category Connector Accessories Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	500V
Size	10B
Brand	HARTING
Current	16A
Gender	Male
Series	Han ES Press
Number of Rows	1
Accessory Type	Plug-In Jumper
For Use With	Han E Series Connector, Han ES Series Connector, Han ESS Series Connector
Pole Format	8
Number of Contacts	8
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	2.08mm²

Key Features

Compatible with Han E Series Connector, Han ES Series Connector, and Han ESS Series Connector.
Enables safe, vibration-proof bridging of multiple contacts with push-in conductor termination.
Rated for 16A current and 500V voltage for reliable power transmission.
Features an audible click to ensure correct fitting without the need for tooling.
Supports wire sizes from 0.5 mm² to 2.08 mm² for versatile applications.
Single-row design with 8 poles to bridge multiple contacts efficiently.
Quick and tool-free assembly that saves time in installation processes.
Constructed to comply with Han ES Press standards ensuring robust connection performance.

Product Description

HARTING 09330009836 Plug-In Jumper Han ES Press Series 8 Way is an essential accessory for the Han ES Press connection system, compatible with Han E Series, Han ES Series, and Han ESS Series connectors. This jumper bar allows multiple contacts to be bridged directly through push-in conductor technology, providing a vibration-proof and secure connection suitable for diverse electrical and industrial applications.

The innovative press-in design eliminates the need for special tooling, speeding up assembly while maintaining safety and reliability. Featuring an audible click, it enables installers to confirm correct jumper placement and connection instantly. Rated at 16 amps current capacity and 500 volts operating voltage, it meets typical heavy-duty power connector requirements.

Wire sizes from 0.5 mm² minimum to 2.08 mm² maximum can be used, making it versatile for various conductor types. The single row 8-pole configuration allows efficient bridging in power distribution and control panel setups within industrial, manufacturing, and heavy machinery environments.

Manufactured in China but built to Harting's rigorous standards, this jumper bar is designed for robustness and reliability in demanding conditions. It supports multiple connection configurations and helps reduce installation times in power connectors by offering straightforward, tool-free assembly.

Compatible with Han E, Han ES, and Han ESS series connectors. Reliable 16A current and 500V voltage rating. Simple, tool-free plug-in jumper installation with audible fitting confirmation. Supports conductor cross-sections from 0.5 mm² to 2.08 mm².

8 contact poles in a single-row format for efficient bridging. Enables quick termination and vibration-proof conductor connections. Ideal for industrial power connector applications and control panels.

This HARTING plug-in jumper is a key component for industrial power connector assemblies, facilitating easy, safe, and robust multi-contact bridging that enhances power distribution systems. Explore more of Harting's Connector Accessories at EnvMart for reliable components tailored to heavy-duty electrical applications.
