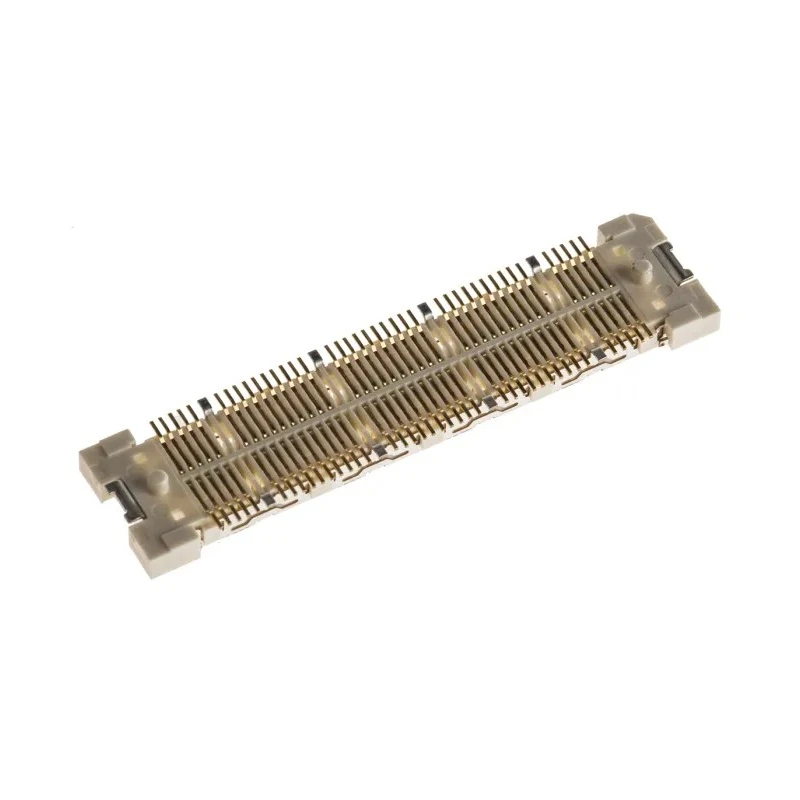

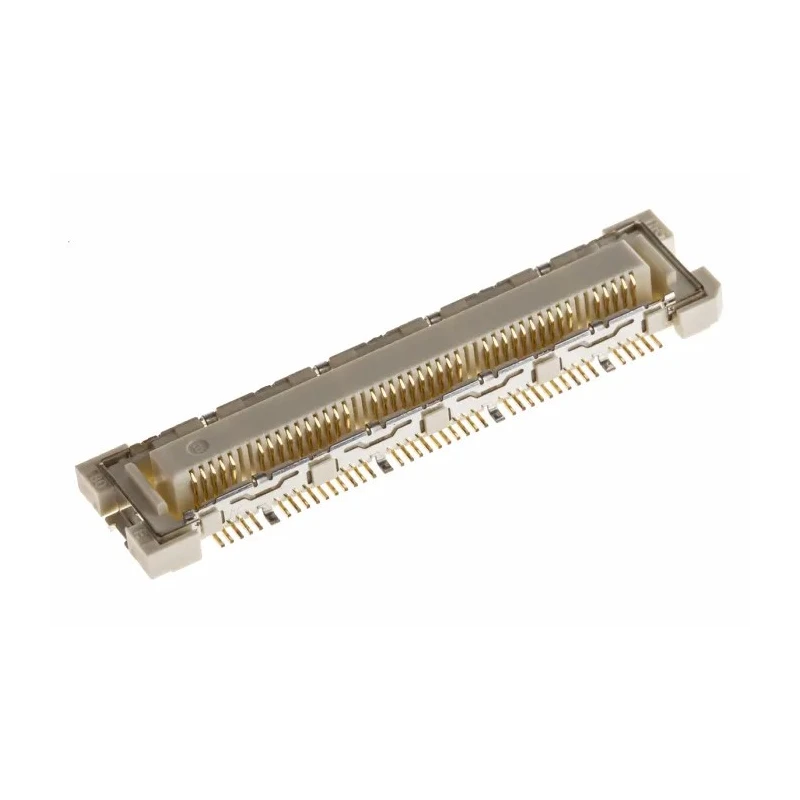

Hirose FunctionMAX FX10 Series Straight Surface PCB Socket, 2 Row, 0.5 mm Pitch, 50V, 300mA, Solder Termination
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | FX10 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | FunctionMAX FX10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| 10 | 1 signal to ground ratio for stabilised grounding and reduction in crosstalk |
| Contact Plating | Gold |
| Contact Gender | Female |
| Stacking Height | 4mm |
Key Features
- This surface mount connector features a straight orientation with a compact 0.5 mm pitch.
- Designed for high-speed data transmission exceeding 15 Gbit/s with excellent grounding performance.
- Incorporates a ground plate on both sides enhancing signal transmission and reducing crosstalk.
- Metal mounting fittings provide increased PCB retention and improved solder strength.
- Ideal for use in medical equipment, industrial controllers, servers, smart meters, and PLCs.
- Supports operating temperatures from -55°C to 85°C with a stacking height of 4 mm.
- Contact gender is female with contacts made of bronze plated in gold for reliable connectivity.
- Housing material is liquid crystal polymer ensuring durability in demanding environments.
Product Description
Hirose FX10A-80S/8-SV(91) FunctionMAX FX10 Series Straight Surface PCB Socket is a high-performance 2-row board-to-board connector with a fine 0.5 mm pitch designed for industrial and electronic applications.
This connector features a low stacking height of 4 mm and excellent grounding capability due to the ground plates placed on both sides of the header and receptacle connectors. The ground plate includes SMT terminals that mount directly to the PCB enhancing signal integrity and transmission efficiency.
The socket supports signal transmission rates above 15 Gbit/s making it ideal for high-density, high-speed PCB assemblies in servers, medical devices, industrial controllers, smart meters, and PLC systems. Its compact 0.5 mm pitch optimizes space without compromising electrical performance.
Constructed from liquid crystal polymer housing with bronze contacts plated in gold, this socket ensures long-term durability and reliable electrical connections under harsh conditions. The metal mounting fittings increase the mechanical retention on the PCB and improve solder joint strength.
Compact 0.5 mm pitch suited for high-density applications. High-speed transmission supporting 15+ Gbit/s data rates. Ground plates on both sides reduce crosstalk and stabilize grounding. Metal fittings enhance PCB retention and solder joint reliability.
Operating temperature range from -55°C to 85°C for versatile usage. Female contact gender made of bronze with gold plating for optimal conduction.
This PCB socket is manufactured in Indonesia and is ideal for demanding industrial, medical, and commercial electronic assembly applications requiring compact, high-speed interconnect solutions.
Explore more Hirose connectors and advanced PCB Sockets on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This socket features a compact pitch size of 0.5 mm.
It has a current rating of 300 mA.
The housing is made of liquid crystal polymer, while the contacts are bronze plated in gold.
The stacking height of this model is 4 mm.
This socket uses solder termination.
This model has 2 rows.
The voltage rating for this socket is 50V.
It is suitable for use in medical equipment, industrial controllers, servers, smart meters, and PLCs.
The contact gender of this PCB socket is female.
It incorporates ground plates on both sides to enhance signal transmission and reduce crosstalk.
This model is manufactured in Indonesia.
