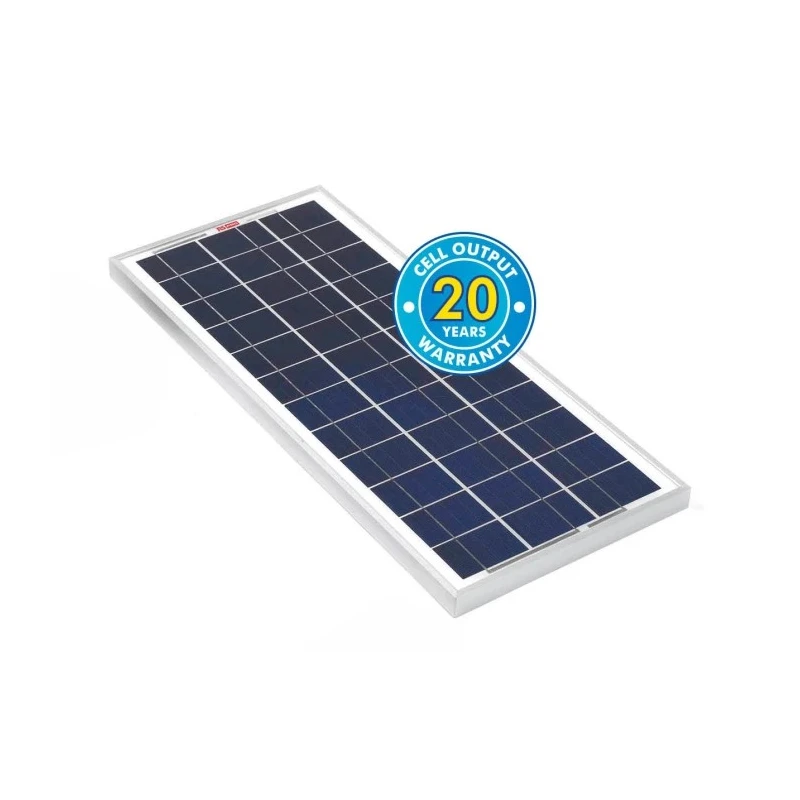

PV Logic Wall Mount 20W Polycrystalline Solar Panel 12V 10Ah Battery Bank Capacity STP020P
Specifications
| Country of Origin | China |
|---|---|
| Brand | PV Logic |
| Length | 638mm |
| Model | STP020P |
| Depth | 25mm |
| Width | 278mm |
| Mount Type | Wall |
| Peak Power | 20W |
| Maximum Operating Temperature | 85°C |
| Sub Type | Polycrystalline |
| Minimum Operating Temperature | -40°C |
| Open Circuit Voltage | 22V |
| Standards/Approvals | IEC, CE |
| Better World Claim | Renewable Energy Solution |
| Battery Bank Capacity | 10Ah |
| Terminal Contact Type | Ring |
| PV Logic 12 V Solar Panels are designed in accordance with IEC61215 | 1993 standards, manufactured with proven materials and tested to ensure electrical performance and service life. Using low iron 3 mm tempered glass and EVA film with TPT back sheet to encapsulated cells |
| ETSolar 20W Monocrystalline solar panelBrand | ETSolar |
Key Features
- Designed for 12V battery systems with 10Ah capacity.
- Polycrystalline solar cells encapsulated with low iron tempered glass and EVA film.
- Heavy-duty anodised aluminium frame for enhanced durability and wind resistance.
- Waterproof junction box with ring terminal contacts for quick installation.
- Operates reliably within temperature range of -40°C to 85°C.
- Complies with IEC and CE standards ensuring quality and safety.
- Compact dimensions of 638mm length, 278mm width, and 25mm depth.
- Offers 20 watts peak power output suitable for caravans, homes, and boats.
Product Description
PV Logic STP020P Wall Mount 20W Polycrystalline Solar Panel is engineered for efficient renewable energy harvesting with a rated open-circuit voltage of 22V and peak power output of 20 watts. It is ideal for use with 12V battery bank systems with capacities of around 10Ah, providing sustainable power solutions for caravan, motor home, boat, and residential wall-mounted applications.
Manufactured in accordance with IEC61215:1993 standards, this panel uses high-quality low iron 3mm tempered glass coupled with EVA film and a TPT back sheet to protect and encapsulate the polycrystalline cells. The panel's heavy-duty anodised aluminium frame ensures structural strength and resistance to high wind loads, extending its operational lifespan while facilitating easy mounting and maintenance.
The SiN film applied via PECVD on the front surface functions as an anti-reflection coating, enhancing light absorption and improving power conversion efficiency. A waterproof junction box and ring-type terminal contacts allow for safe and simplified electrical connections, enhancing installation reliability.
Operating reliably in extreme conditions between -40°C and 85°C, the panel adheres to IEC and CE certifications for quality assurance. Its compact form factor with dimensions 638mm (L) x 278mm (W) x 25mm (D) ensures adaptability in various settings without compromising performance.
This product provides an environmentally responsible renewable energy solution and carries PV Logic’s commitment to quality and durability. It is suitable for applications in industrial, residential, agricultural, and transportation sectors requiring dependable solar power.
Designed for 12V battery systems with 10Ah capacity. Polycrystalline solar cells encapsulated with low iron tempered glass and EVA film. Heavy-duty anodised aluminium frame providing durability and wind resistance. Waterproof junction box with ring terminal contacts for quick and safe connections.
Operates efficiently over temperature range -40°C to 85°C. Complies with IEC and CE standards ensuring quality and safety. Compact size dimensions: 638 x 278 x 25 mm. Provides 20W peak power output. Explore EnvMart’s category of Solar Panels and Renewable Energy products for a wide range of high-quality solar solutions including mounting structures and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PV Logic Wall Mount 20W Polycrystalline Solar Panel has a peak power output of 20 watts.
The open-circuit voltage of this model is 22V.
It is designed for 12V battery systems with a capacity of 10Ah.
The dimensions of the panel are 638mm in length, 278mm in width, and 25mm in depth.
This model operates reliably within a temperature range of -40°C to 85°C.
The panel is constructed with low iron tempered glass, EVA film, and a TPT back sheet to protect and encapsulate the polycrystalline cells.
This solar panel is designed for wall mounting.
Yes, it complies with IEC and CE standards, ensuring quality and safety.
It features a waterproof junction box with ring terminal contacts for quick and safe connections.
This solar panel is suitable for applications in caravans, motor homes, boats, and residential wall-mounted setups.
The country of origin for this solar panel is China.
The sub-type of this panel is polycrystalline.
