PV Logic 45 W Polycrystalline Wall Mount Solar Panel STP045P

Free Delivery in India | Lowest Global Shipping Charges

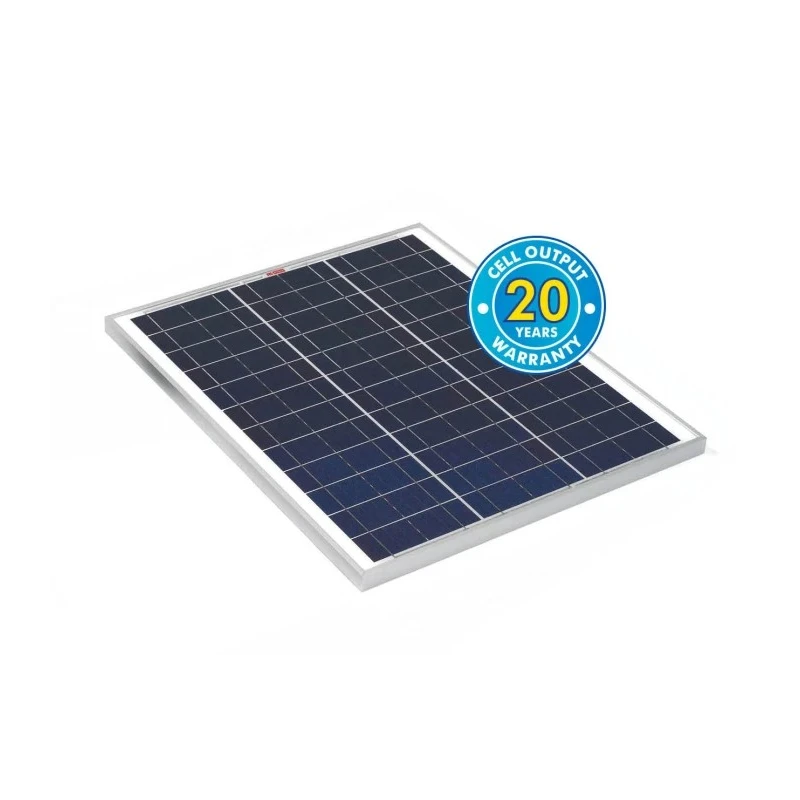

PV Logic 45 W Polycrystalline Wall Mount Solar Panel STP045P

Name: PV Logic 45 W Polycrystalline Wall Mount Solar Panel STP045P
Brand: PV Logic
SKU: 138961



Category Solar Panel Brand PV Logic Condition New

Specifications

Country of Origin	China
Brand	PV Logic
Length	634mm
Model	STP045P
Depth	25mm
Width	535mm
Mount Type	Wall
Peak Power	45W
Maximum Operating Temperature	85°C
Sub Type	Polycrystalline
Minimum Operating Temperature	-40°C
Open Circuit Voltage	22V
Standards/Approvals	CE, IEC
Better World Claim	Renewable Energy Solution
Battery Bank Capacity	10Ah
Terminal Contact Type	Ring
PV Logic 12 V Solar Panels are designed in accordance with IEC61215	1993 standards, manufactured with proven materials and tested to ensure electrical performance and service life. Using low iron 3 mm tempered glass and EVA film with TPT back sheet to encapsulated cells

Key Features

Constructed with polycrystalline cells for reliable power generation.
Designed for wall mounting with a compact and durable anodised aluminium frame.
High maximum operating temperature of 85°C and minimum operating temperature of -40°C.
Features a 3 mm low iron tempered glass with EVA film and TPT back sheet encapsulation.
Waterproof junction box and ring terminal contacts enable easy and quick electrical connections.
Complies with CE and IEC certifications ensuring quality performance.
Ideal for use in caravans, motor homes, boats, and renewable energy installations.
Includes anti-reflection SiN film for improved light absorption and uniform dark blue appearance.

Product Description

PV Logic STP045P is a 45 W polycrystalline solar panel designed for wall mount applications. It operates at an open circuit voltage of 22 V and supports a battery bank capacity of 10 Ah, making it suitable for small renewable energy systems. The panel features a heavy-duty anodised aluminium frame that resists high winds and corrosion, providing reliability in various environmental conditions.

Manufactured according to IEC61215:1993 standards, the solar panel uses proven materials such as low iron 3 mm tempered glass, EVA film, and TPT back sheet to encapsulate the cells for enhanced electrical performance and service life. The SiN anti-reflection coating improves light absorption efficiency and gives the panel a uniform dark blue appearance.

The waterproof junction box and ring terminal contacts facilitate quick and secure connectivity. Designed to operate within a temperature range of -40°C to 85°C, it is suitable for a wide range of climates and industrial applications including caravans, boats, motor homes, and off-grid solar power setups.

This solar panel complies with CE and IEC certifications, ensuring safety and quality standards compliance. It is part of the PV Logic 12 V Solar Panels series and comes with a 20-year transferable power output warranty, supporting sustainable and reliable energy solutions.

Constructed with polycrystalline cells for efficient power generation. Durable anodised aluminium frame for high wind resistance. Low iron tempered glass and advanced encapsulation for longevity. Anti-reflection SiN coating enhances solar absorption.

Waterproof junction box with ring terminal contact type. Wide operating temperature range: -40°C to 85°C. Complies with CE and IEC standards for safety and quality. Ideal for renewable energy systems in caravans, boats, and motor homes.

20-year transferable warranty offers long-term reliability. Explore the full range of PV Logic Solar Panels and renewable energy products on EnvMart for efficient sustainable power solutions.
