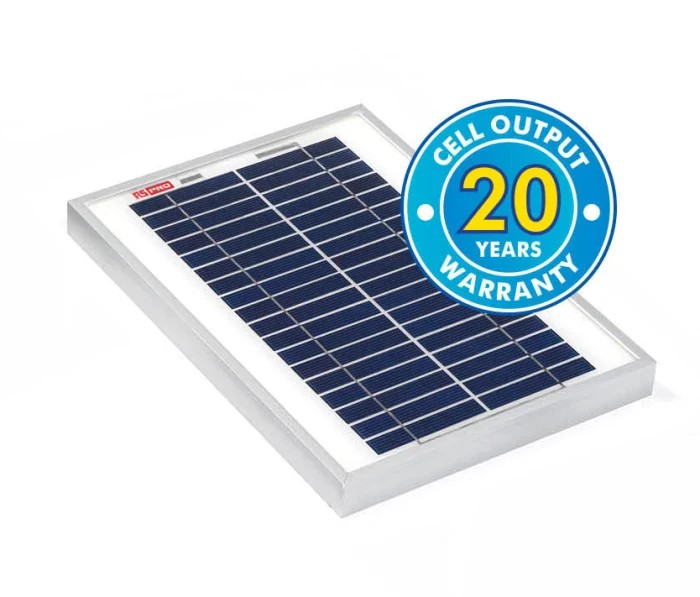

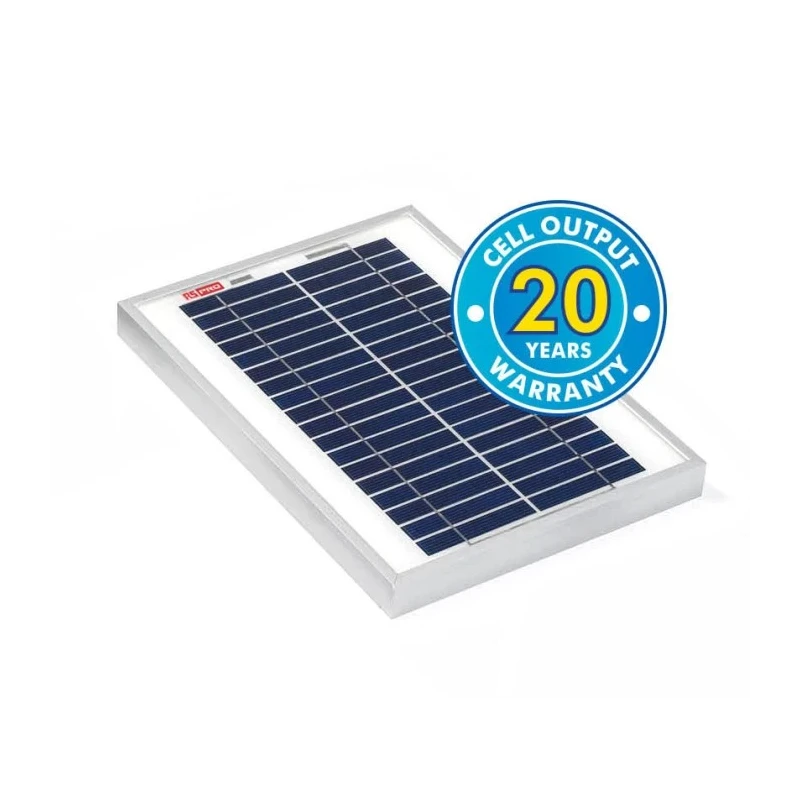

PV Logic Wall Mount Polycrystalline Solar Panel 5 W 22V 35Ah STP005P
Specifications
| Country of Origin | China |
|---|---|
| Brand | PV Logic |
| Length | 250mm |
| Model | STP005P |
| Depth | 25mm |
| Width | 200mm |
| Mount Type | Wall |
| Peak Power | 5W |
| Maximum Operating Temperature | 85°C |
| Sub Type | Polycrystalline |
| Minimum Operating Temperature | -40°C |
| Open Circuit Voltage | 22V |
| Standards/Approvals | IEC, CE |
| Better World Claim | Renewable Energy Solution |
| Battery Bank Capacity | 35Ah |
| Terminal Contact Type | Ring |
| PV Logic 12 V Solar Panels are designed in accordance with IEC61215 | 1993 standards, manufactured with proven materials and tested to ensure electrical performance and service life. Using low iron 3 mm tempered glass and EVA film with TPT back sheet to encapsulated cells |
Key Features
- Polycrystalline solar panel designed for wall mounting applications.
- Peak power output of 5 watts suitable for small-scale renewable energy solutions.
- Operates efficiently in a temperature range from -40°C to 85°C.
- Constructed with 3 mm low iron tempered glass and EVA film encapsulated cells.
- Heavy-duty anodized aluminium frame provides high wind resistance and durability.
- Ring terminal contact type for secure electrical connections.
- Complies with IEC and CE standards ensuring reliability and safety.
- Compact dimensions of 250 mm length, 200 mm width, and 25 mm depth for versatile installation.
Product Description
PV Logic STP005P Wall Mount Polycrystalline Solar Panel 5 W with 22V open circuit voltage and 35Ah battery bank capacity is engineered to deliver efficient and reliable solar energy for diverse industrial, agricultural, and residential applications.
This solar panel is constructed using polycrystalline cells encapsulated within low iron 3 mm tempered glass and EVA film, protected by a TPT backsheet to ensure longevity and sustained electrical performance. The heavy-duty anodised aluminium frame enhances structural integrity, providing excellent resistance to wind and environmental stresses.
The product operates optimally within a temperature range from -40°C to 85°C, making it suitable for harsh outdoor conditions. Its waterproof junction box and ring terminal contact types facilitate quick, safe, and secure electrical connections.
Compliant with IEC and CE standards, this solar panel upholds strict quality and safety benchmarks. The compact form factor with dimensions 250 mm (length) x 200 mm (width) x 25 mm (depth) allows easy wall mounting and integration into renewable energy systems.
Polycrystalline solar panel designed for wall mounting applications. Peak power output of 5 watts suitable for small-scale renewable energy solutions. Operates efficiently in a temperature range from -40°C to 85°C. Constructed with 3 mm low iron tempered glass and EVA film encapsulated cells.
Heavy-duty anodized aluminium frame provides high wind resistance and durability. Ring terminal contact type for secure electrical connections. Complies with IEC and CE standards ensuring reliability and safety. Compact dimensions of 250 mm length, 200 mm width, and 25 mm depth for versatile installation.
Waterproof junction box for easy and safe installation in various environments. Designed to prevent battery drain in caravans, motor homes, and boats.
This Solar Panel is ideal for industrial, commercial, agricultural, and residential renewable energy projects that require efficient, durable, and compact solar power generation solutions. It helps reduce carbon footprint while providing a dependable power source.
Explore more high-quality solar power products in the Renewable Energy category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak power output of this solar panel is 5 watts, making it suitable for small-scale renewable energy solutions.
The open circuit voltage of the STP005P model is 22 volts.
The dimensions of the solar panel are 250 mm in length, 200 mm in width, and 25 mm in depth.
It is constructed with low iron 3 mm tempered glass and EVA film encapsulated cells, providing durability and protection.
The solar panel features a ring terminal contact type for secure electrical connections.
This model complies with IEC and CE standards, ensuring reliability and safety in its performance.
The solar panel supports a battery bank capacity of 35Ah.
Yes, it features a waterproof junction box that facilitates safe installation in various environments.
This solar panel is ideal for industrial, commercial, agricultural, and residential renewable energy projects.
The country of origin for this solar panel is China.
