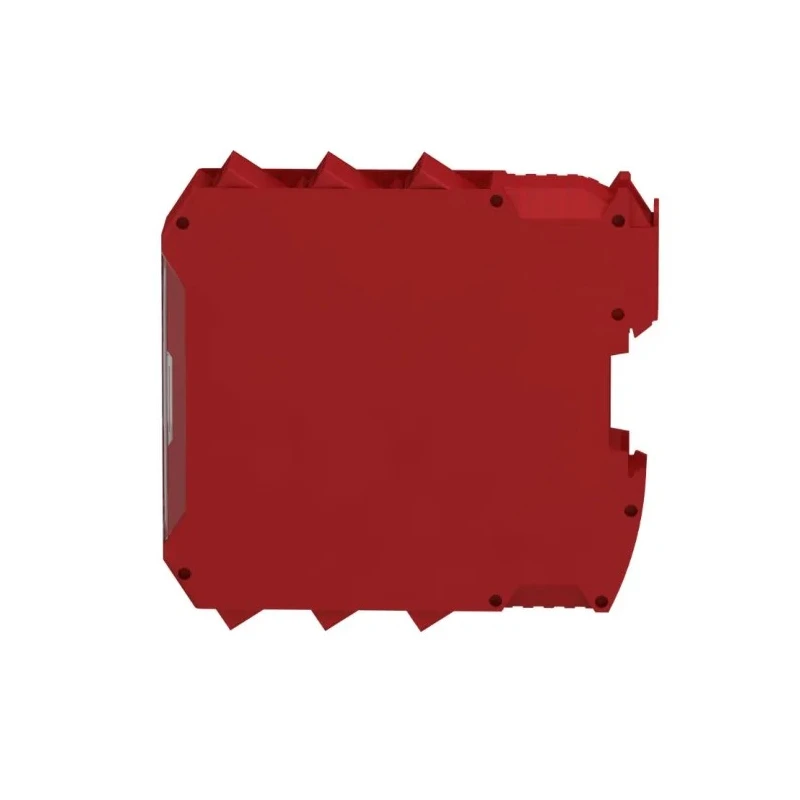

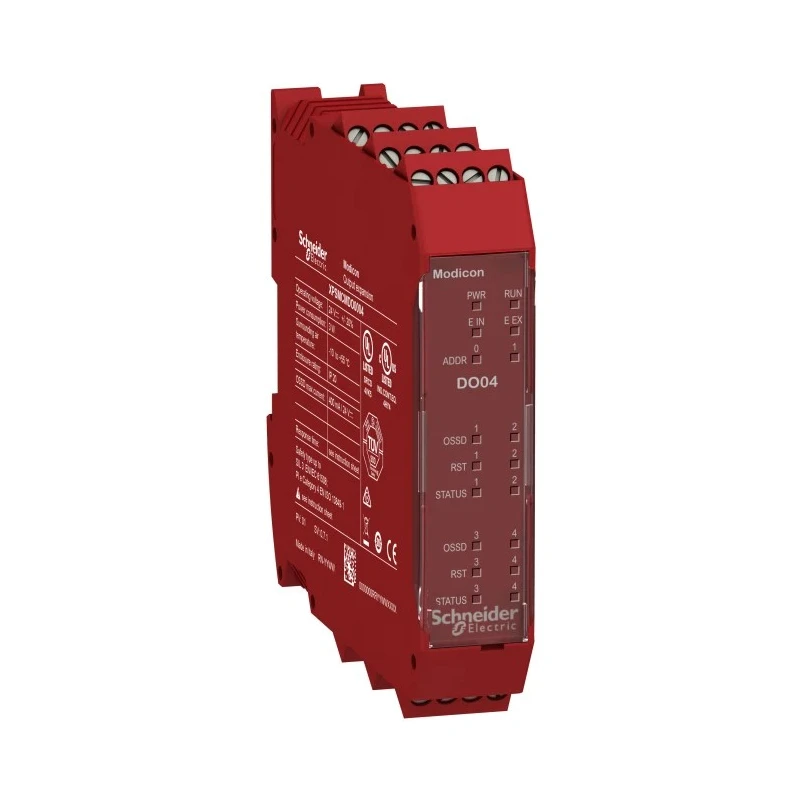

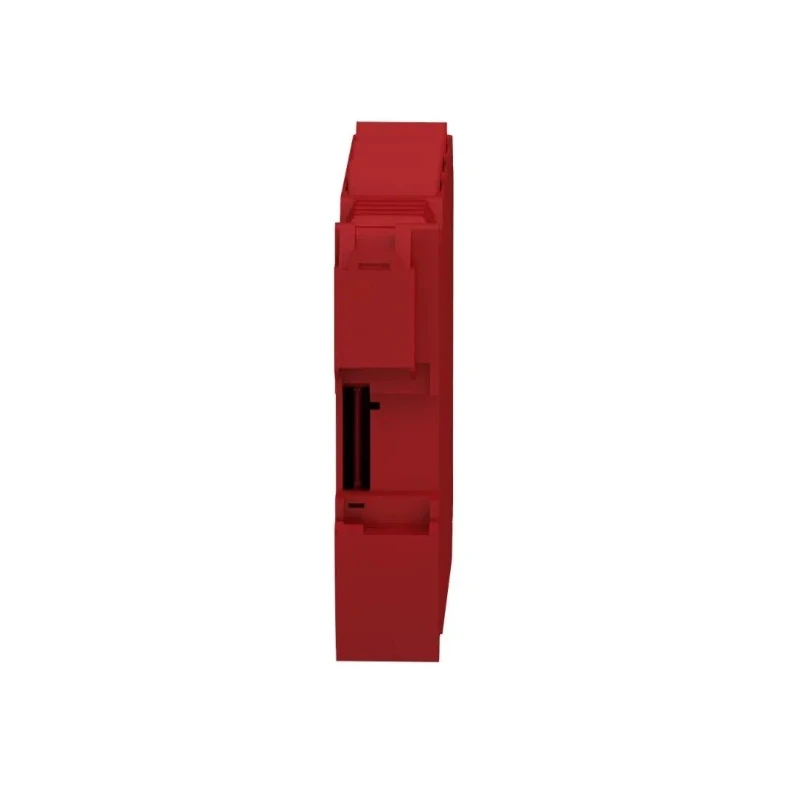

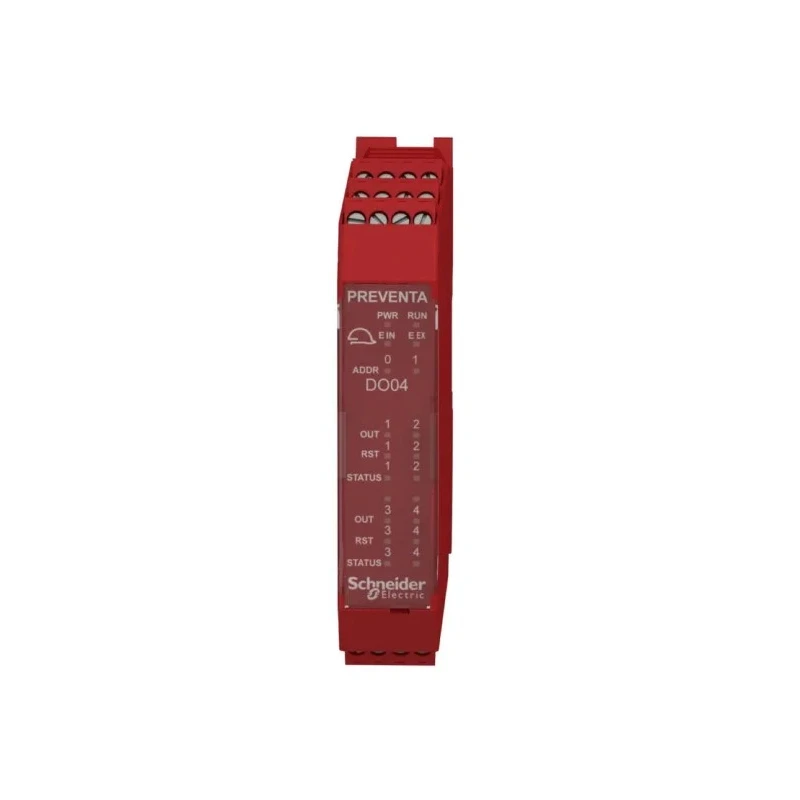

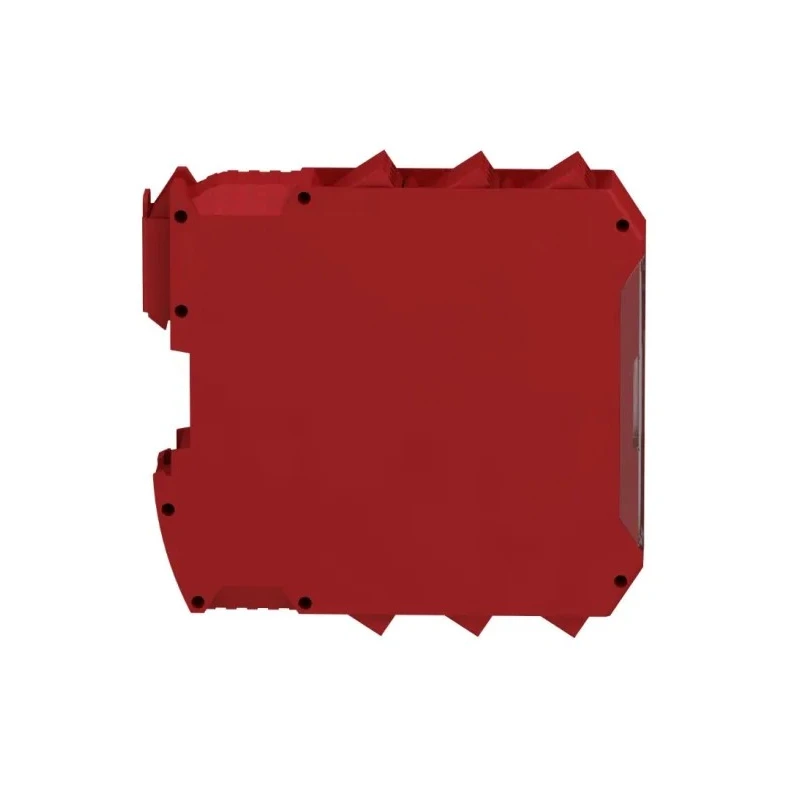

Schneider Electric Preventa Series Output Module 4 Inputs 8 Outputs 24V dc XPSMCMDO0004
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | XPSMCMDO0004 |
| Mount Type | DIN Rail |
| Number of inputs | 4 |
| Series | Preventa |
| Power Rating | 3W |
| Sub Type | Output Module |
| Number of outputs | 8 |
| Terminal type | Screw |
| Supply Voltage | 24V dc |
| For Use With | Preventa Modular Safety Controller |
| Standards/Approvals | cULus |
| 8 test outputs for line control monitoring | can monitor up to four 4-wire safety mats |
Key Features
- Compatible with Preventa Modular Safety Controller.
- Mounts on standard DIN rail for easy installation.
- Equipped with screw-type removable terminal blocks.
- Features line control monitoring via dedicated test outputs.
- Supports configurable filters and delays for each input.
- Independent control of output pairs enhances safety configurations.
- Provides diagnostic output signals and front LED signaling for fault indication.
- Compact dimensions of 22.5 x 99 x 114.5 mm optimize space usage.
Product Description
Schneider Electric XPSMCMDO0004 Preventa Series Output Module is a robust safety control device featuring 4 safety inputs and 8 outputs operating at 24V DC with a power rating of 3W. It is designed for integration with Preventa Modular Safety Controllers and mounts conveniently on a DIN rail. This Output Module enables configurable safety application setups with individual or paired outputs control and built-in line control monitoring using dedicated test outputs.
The module incorporates removable screw-type terminal blocks for easy, secure connections and offers simple diagnostics through front LED indicators and output signals. Its compact size of 22.5 x 99 x 114.5 mm facilitates installation in tight panel spaces, making it suitable for industrial automation, process control, manufacturing, and safety IO applications.
Certified to the cULus standard and featuring green premium product and RoHS compliance, the XPSMCMDO0004 module ensures both safety and environmental standards are met. It supports independent control of output pairs and configurable delays, enhancing flexible safety control designs.
Use cases include monitoring safety mats, interlock functions, and external device monitoring in manufacturing plants, water treatment facilities, HVAC systems, and other industrial environments requiring stringent safety controls.
Compatible with Preventa Modular Safety Controller for expanded safety solutions. Mounts on DIN rail for secure and modular installation. Supports line control monitoring through four test outputs. Features configurable input filters and output activation delays.
Enables independent control of output pairs and diagnostic signaling. Compact design, 22.5 x 99 x 114.5 mm, saves panel space. Compliant with cULus certification and RoHS standards. Equipped with removable screw terminal blocks for installation flexibility.
Power rating of 3W at 24V DC supply voltage. Suitable for industrial automation, process control, and safety IO module applications. Explore more Schneider Electric products on EnvMart's Industrial Automation Systems category for reliable and certified safety control hardware.
