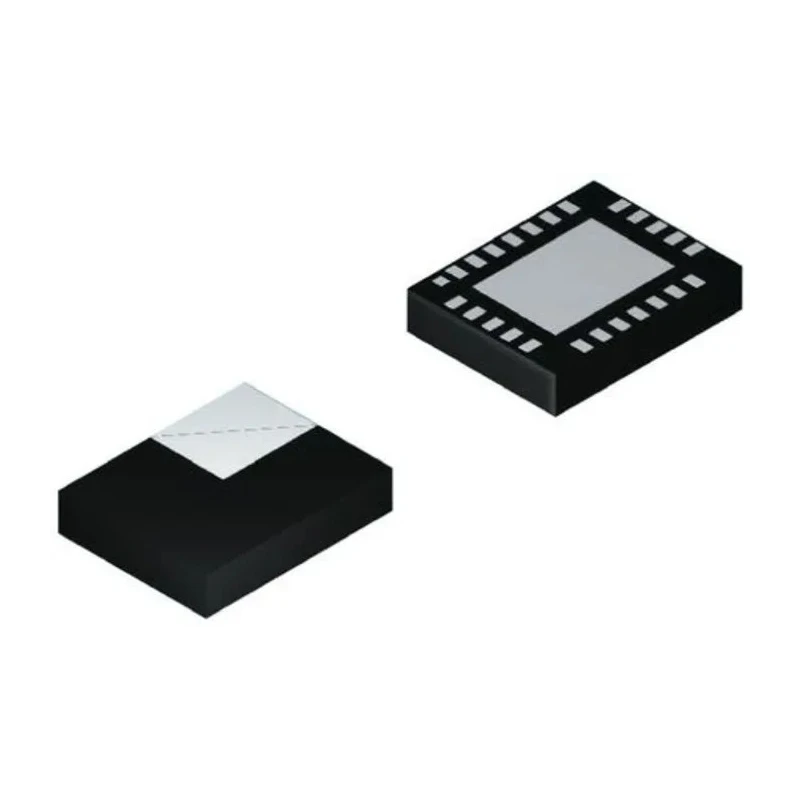

STMicroelectronics 3 Axis Surface Absolute Orientation Sensor 1.9V 3.6V Serial-SPI Serial-I2C LGA 24-Pin LSM9DS1TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 3.5mm |
| Model | LSM9DS1TR |
| SENSITIVITY | 0.73mg/LSB |
| Technology | Digital |
| Sensor Type | Gyroscope, Accelerometer, Magnetometer |
| Width | 3mm |
| Mount Type | Surface |
| Series | LSM9DS1 |
| Maximum Operating Temperature | 85°C |
| Package Type | LGA |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Interface Type | Serial-SPI, Serial-I2C |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.9V |
| Supply Current | 4mA |
| Maximum Frequency Response | 400kHz |
| Minimum Frequency Response | 0kHz |
| iNEMO Inertial Module | 3D Accelerometer, 3D Gyroscope, 3D Magnetometer |
Key Features
- Operates at supply voltages from 1.9V to 3.6V for flexible power management.
- Supports digital serial interfaces including Serial-SPI and Serial-I2C for easy integration.
- Features a maximum frequency response of 400 kHz ensuring high-speed data acquisition.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Compact dimensions of 3.5mm length, 3mm width, and 1mm height for space-constrained applications.
- Combines 3D accelerometer, 3D gyroscope, and 3D magnetometer providing 9-axis degrees of freedom.
- Low supply current of 4mA for energy-efficient operation.
- Equipped with a 9kbyte FIFO buffer to store sensor data efficiently.
Product Description
STMicroelectronics LSM9DS1TR 3 Axis Surface Absolute Orientation Sensor is a digital sensor module combining a 3D accelerometer, 3D gyroscope, and 3D magnetometer into a compact and robust 24-pin LGA package. Designed for surface mounting, this sensor operates between 1.9V and 3.6V supply voltages and supports both Serial-SPI and Serial-I2C interfaces, offering flexible communication options for embedded systems.
With dimensions of 3.5mm length, 3mm width, and 1mm height, the LSM9DS1TR sensor is well suited for applications where size and weight are critical, such as handheld devices. It maintains a wide operating temperature range from -40°C to 85°C and a low supply current of 4mA, enabling reliable and energy-efficient performance in demanding industrial and consumer environments.
The sensor module features a 9kbyte FIFO memory to efficiently buffer sensor data, improving system throughput and reducing microcontroller load. An enhanced pedometer algorithm and Always-On motion sensing further optimize power consumption, making this device ideal for continuous monitoring applications.
This inertial module is particularly suited for industrial and commercial applications like gaming controllers, virtual reality headsets, indoor navigation systems, localization-based services, and smart products requiring accurate motion sensing and orientation detection.
Operates from 1.9V to 3.6V supply voltages. Supports digital Serial-SPI and Serial-I2C interfaces. Combines 3D accelerometer, 3D gyroscope, and 3D magnetometer functionalities. Compact LGA 24-pin surface mount package. Wide operating temperature range of -40°C to 85°C.
Low supply current at 4mA. Includes 9kbyte FIFO buffer for efficient data management. Enhanced pedometer algorithm and Always-On motion sensing. Applications include virtual reality, gaming, indoor navigation, and smart devices.
Explore the STMicroelectronics range of Sensor ICs and enhance your design solutions with reliable, high-precision components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at supply voltages from 1.9V to 3.6V, allowing for flexible power management.
It supports digital serial interfaces including Serial-SPI and Serial-I2C for easy integration into embedded systems.
The maximum frequency response of the LSM9DS1TR is 400 kHz, ensuring high-speed data acquisition.
This sensor has a wide operating temperature range from -40°C to 85°C, making it suitable for harsh environments.
It has compact dimensions of 3.5mm in length, 3mm in width, and 1mm in height, ideal for space-constrained applications.
This model combines a 3D accelerometer, 3D gyroscope, and 3D magnetometer, providing 9-axis degrees of freedom.
The supply current for this sensor is 4mA, which supports energy-efficient operation.
Yes, it is equipped with a 9kbyte FIFO buffer to efficiently store sensor data, improving system throughput.
This sensor uses a surface mount type, suitable for various embedded applications.
The sensitivity of this sensor is 0.73mg/LSB, providing detailed motion detection capabilities.
It is particularly suited for applications like gaming controllers, virtual reality headsets, indoor navigation systems, and smart products requiring accurate motion sensing.
The sensor is packaged in a 24-pin LGA format, designed for surface mounting.
