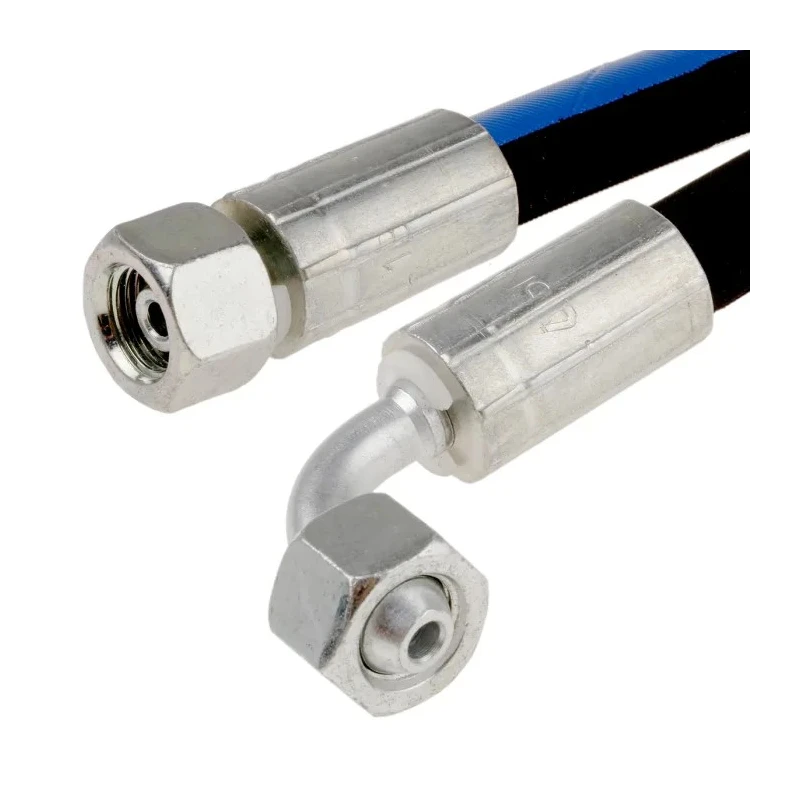

RS PRO Synthetic Rubber Hydraulic Hose Assembly 658mm Length, 330 bar Max Pressure 110-2219

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Synthetic Rubber Hydraulic Hose Assembly 658mm Length, 330 bar Max Pressure 110-2219

Name: RS PRO Synthetic Rubber Hydraulic Hose Assembly 658mm Length, 330 bar Max Pressure 110-2219
Brand: RS PRO
SKU: 138764
Price: 39.22 USD
Availability: InStock



Category Hydraulic Hose Assembly Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Maximum Operating Pressure	330 bar
Model	110-2219
Cover Material	Synthetic Rubber
Overall Length	658mm
Maximum Operating Temperature	100°C
Inside Diameter	9.53mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Connection Size A	3/8 in
Connection Standard A	G
Connection Gender A	Female
Connection Type A	Threaded
Inner Hose Material	Synthetic Rubber
Reinforcing Material	Steel
Parker 717mm Synthetic Rubber Hydraulic Hose Assembly, 330 bar Max PressureBrand	Parker

Key Features

The hose features a synthetic rubber inner tube and cover for durability and flexibility.
Steel wire reinforcement provides high tensile strength and reliable pressure resistance.
Both ends have threaded female G 3/8 inch connections for secure and compatible fittings.
It operates within temperature ranges from -40°C to 100°C, suitable for various industrial environments.
The hose assembly is compliant with RoHS standards ensuring environmental safety.
Ideal for medium-pressure applications with petroleum-based hydraulic fluids, water glycol, lubricating oils, and other compatible fluids.
The zinc-plated mild steel fittings resist corrosion to enhance lifespan.
Designed for flexible use with high-pressure fluids but not suitable for high-pressure pumps exceeding 700 bar.

Product Description

RS PRO 110-2219 Synthetic Rubber Hydraulic Hose Assembly is a precision-engineered hose assembly with a length of 658mm, capable of handling a maximum pressure of 330 bar. This assembly incorporates a synthetic rubber inner hose and synthetic rubber cover with steel wire reinforcement, delivering durability and flexibility for medium pressure hydraulic applications.

The hose assembly includes threaded female G 3/8 inch connectors at both ends, manufactured from zinc-plated mild steel to resist corrosion and wear. Its broad operating temperature range from -40°C to 100°C makes it suitable for diverse industrial environments including mechanical, hydraulic, and fluid power systems.

This hose is designed for use with petroleum-based hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsion fluids, hot oil, grease, crude and fuel oils, air, and water. The assembly meets RoHS compliance ensuring that it adheres to environmental and safety regulations.

It is important to note that this hose assembly is not intended for use with high-pressure hydraulic cylinders and pumps operating at pressures up to 700 bar. The engineering emphasizes reliability and safety in medium pressure hydraulic systems.

The hose construction includes synthetic rubber and steel wire for high tensile strength. Fittings are zinc-plated mild steel for enhanced durability. Operating temperature range supports varied industrial conditions. Suitable for a wide range of hydraulic fluid types.

RoHS compliant for environmental safety. Length: 658mm, optimized for multiple applications. Maximum operating pressure: 330 bar.

This RS PRO Hydraulic Hose Assembly supports industrial, manufacturing, construction, and fluid power applications where medium pressure safety and reliability are essential. It is an excellent choice for maintenance, repairs, or system upgrades requiring durable hose assembly solutions.
