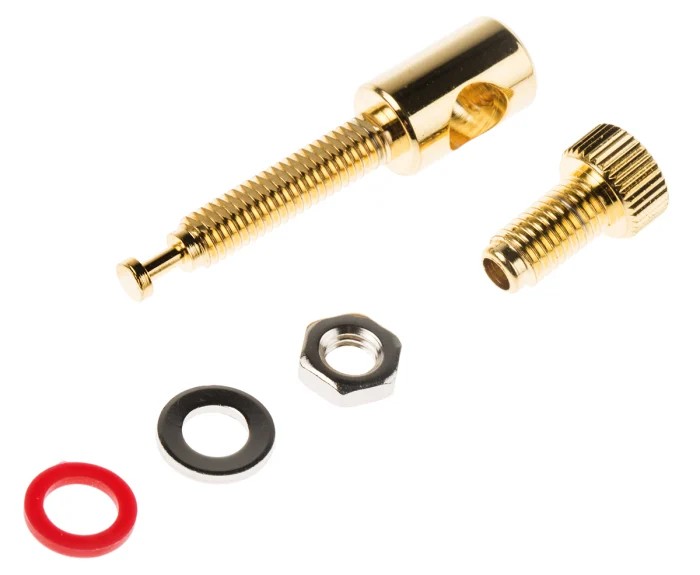

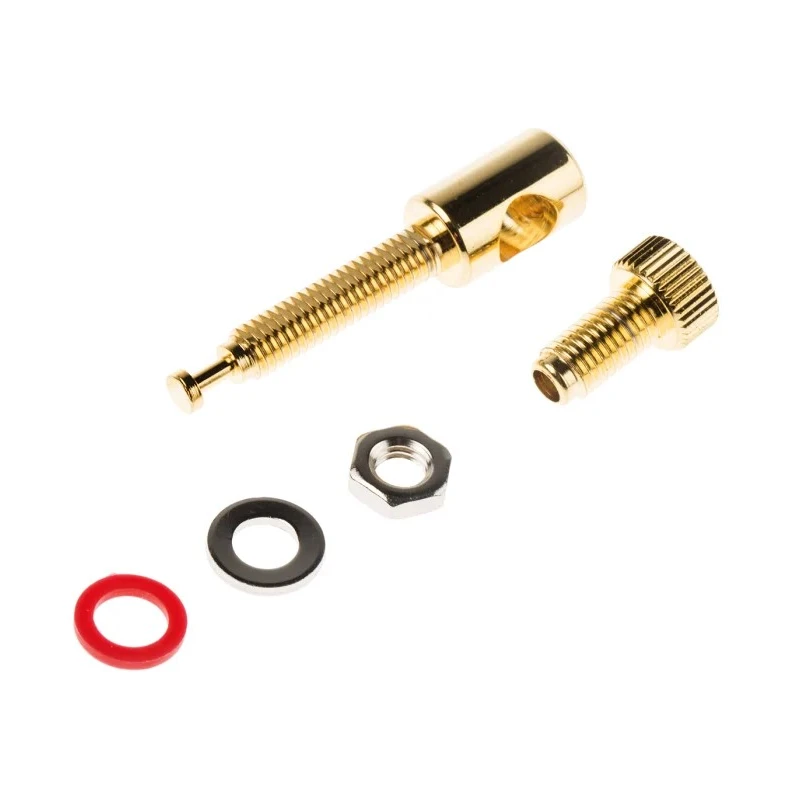

RS PRO Straight Chassis Loudspeaker Connector 1 Way Male Red 16A Screw 458-190

RS PRO 458-190 Straight Chassis LoudSpeaker Connector is a high-quality electrical component designed for audio and speaker connection systems. It is rated for 16A current and features a 1 way male connector with screw termination, facilitating reliable and secure cable attachment.

Constructed from brass materials for both contact and housing, the connector ensures durability and long service life. The contacts are plated with gold over nickel to improve signal transmission and prevent corrosion. The connector’s straight orientation and chassis mount type allow stable panel installation, compatible with panel thicknesses up to 20mm.

The product features 4mm standard terminals which are stackable and accept cable diameters up to 7.5mm outer diameter, providing versatility in wiring. The chassis terminal also accepts 4mm plugs, facilitating easy and robust connections in audio setups. The connector is color coded red for clear polarity identification to avoid wiring errors during installation.

It is manufactured in the United Kingdom and conforms to RS PRO quality standards. This connector features a straight orientation with chassis mount type for secure panel installation. The contact material is brass with gold over nickel plating for enhanced conductivity and corrosion resistance.

The connector includes a stackable 4mm standard terminal that accepts cables up to 7.5mm outer diameter. The chassis terminal accepts 4mm plugs and supports panel thickness up to 20mm. The red color coding aids clear polarity identification in audio installations.

Suitable for high-quality audio and speaker connection applications. Warning: Not suitable for mains electrical connections. Explore more high-performance connectors and electronic components in the Audio/Video Connectors category at EnvMart for your industrial and commercial needs.
