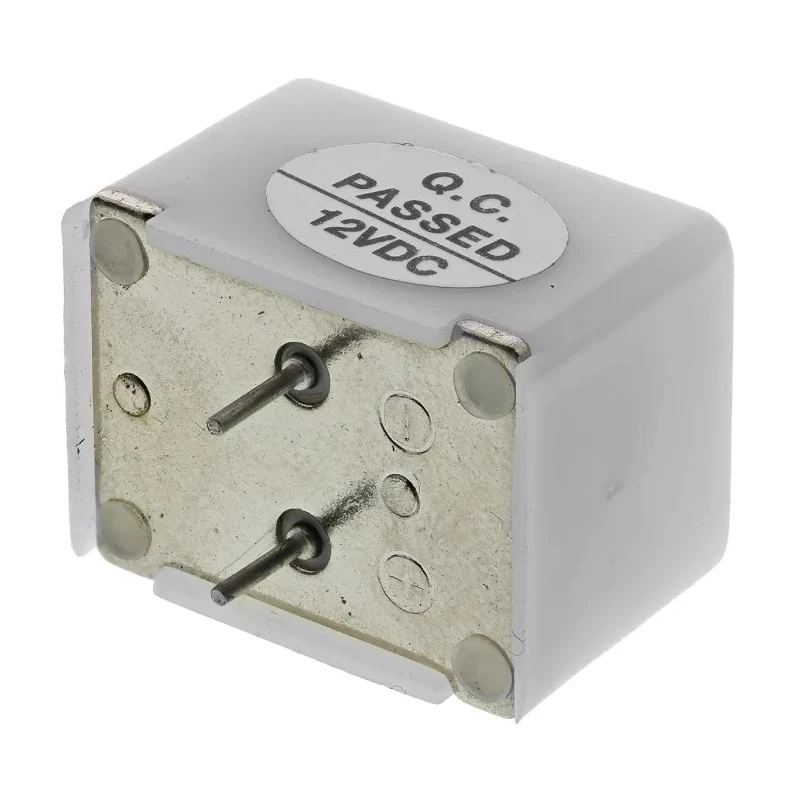

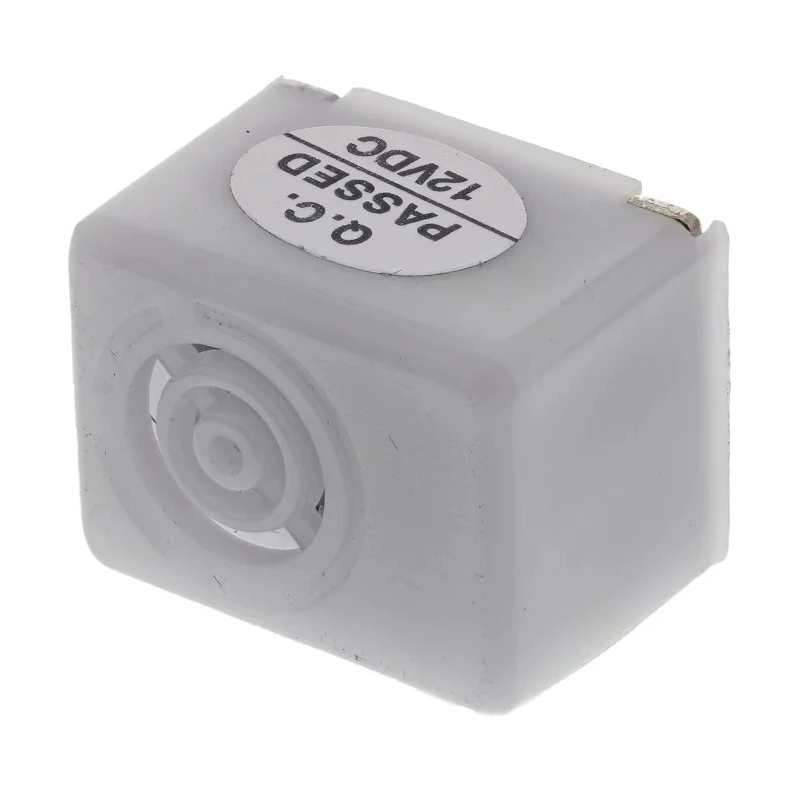

RS PRO 75 dB Through Hole Continuous Internal Magnetic Buzzer Component 15.5 mm 9V dc Min 22.5 mm 15.5 mm 15V dc Max 457-059

RS PRO 457-059 Magnetic Buzzer Component is a robust through-hole mounted buzzer designed for continuous tone applications operating between 9 V dc and 15 V dc. It delivers a high sound output at 75 dB ensuring audible alerts in diverse industrial, laboratory, HVAC, manufacturing, and commercial electronics contexts.

This magnetic buzzer features an internal drive system optimized for direct PCB mounting with its square casing measuring 15.5 mm in width and height, and 22.5 mm in length. Its frequency range from 300 Hz to 0.5 kHz supports clear and consistent audio signaling. Rated to operate up to 60°C, this component suits environments requiring reliable sound alerts under moderate temperature conditions.

With no specific approvals or standards listed, the buzzer's reliability stems from RS PRO's manufacturing quality and design focus on electrical component applications.

Applications include alarm systems, industrial signaling devices, electronic instrumentation, and equipment requiring efficient audio feedback without complex external drive circuitry.

Operates at minimum 9 V dc and maximum 15 V dc supply voltage. Produces 75 dB sound level for effective signaling. Continuous tone output with internal drive type for ease of integration. Compact square casing designed for through-hole PCB mounting.

Frequency range suitable for audio alerts between 300 Hz to 0.5 kHz. Maximum operating temperature at 60°C for stable performance. Physical dimensions: 22.5 mm (length) × 15.5 mm (width) × 15.5 mm (height). Country of origin: China.
