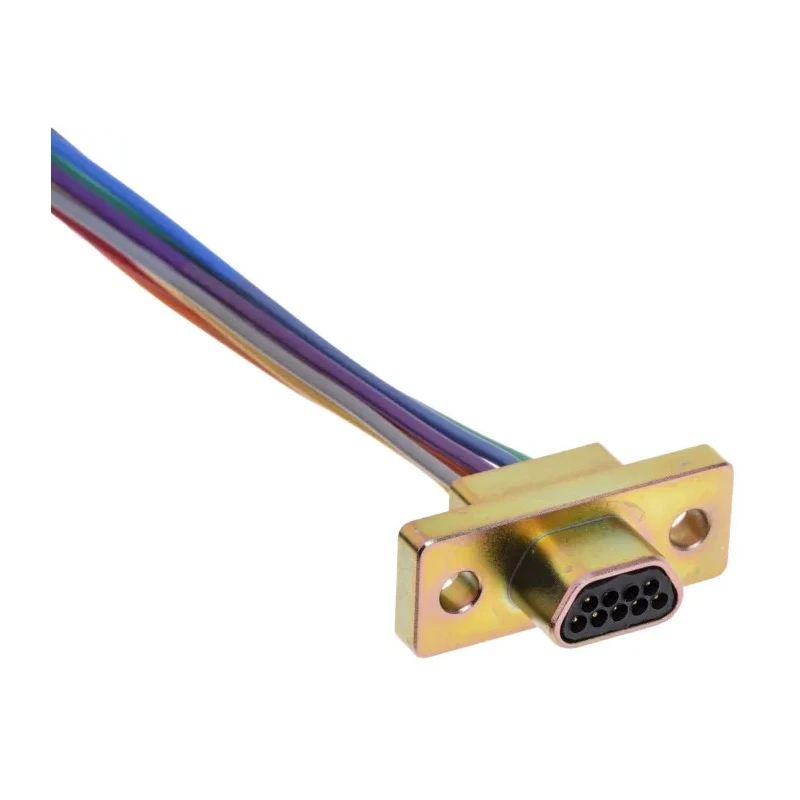

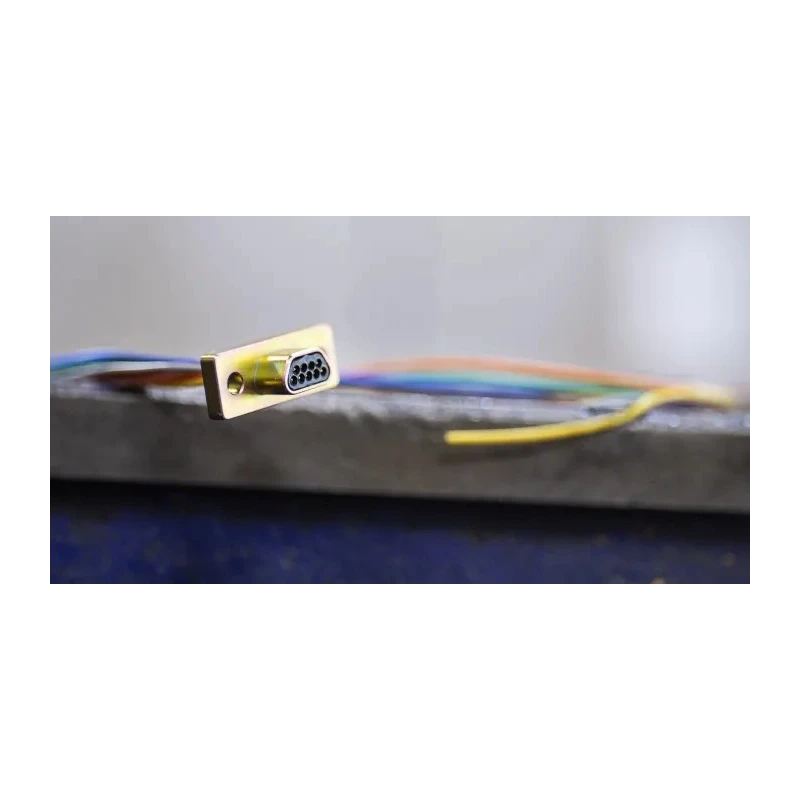

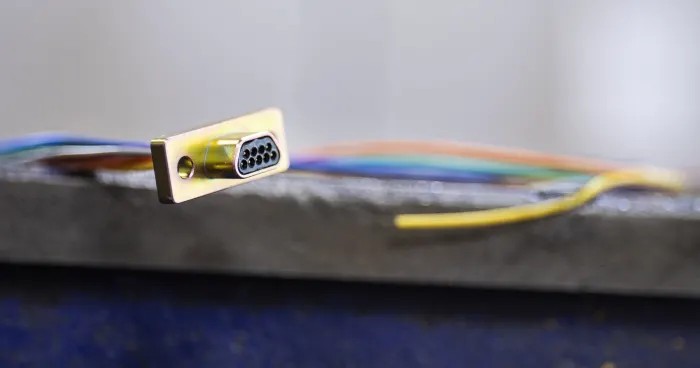

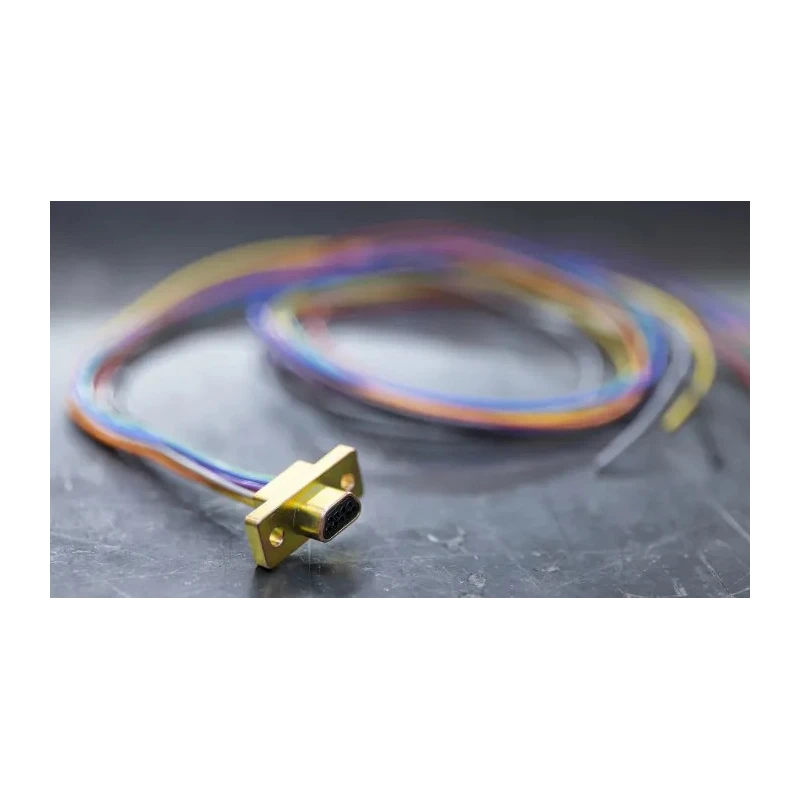

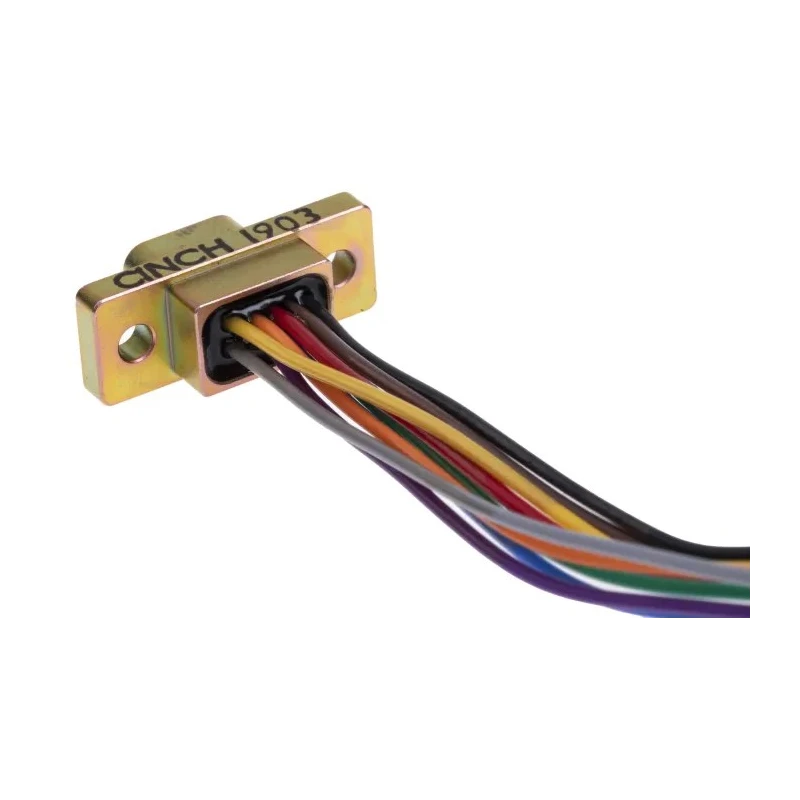

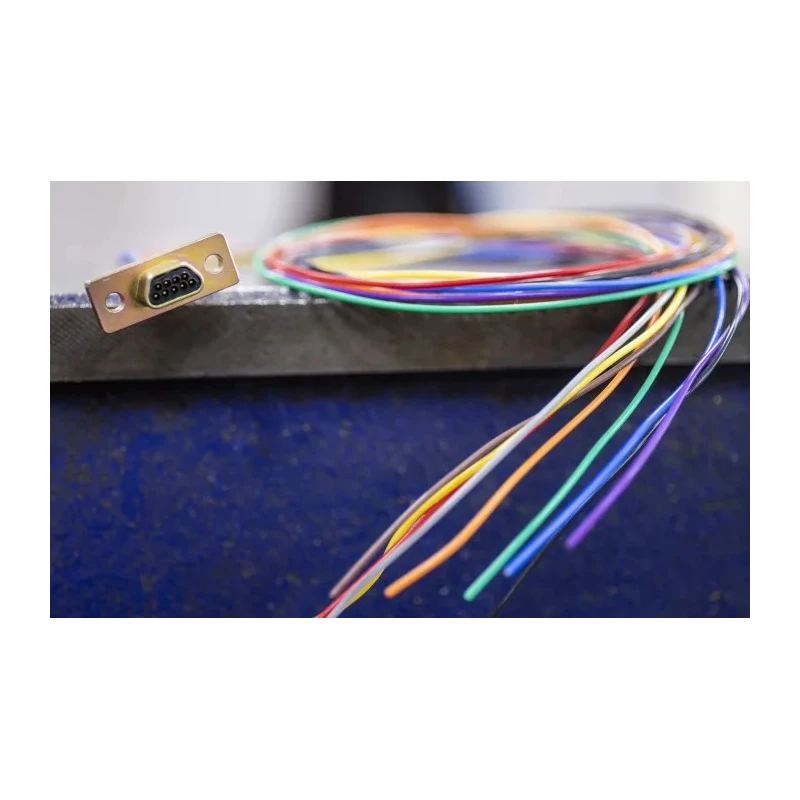

RS PRO 9 Way Straight Panel Mount Micro-D Male D-Sub Connector 250V 3A 452-940

RS PRO 452-940 is a 9 Way Straight Panel Mount Micro-D Male D-Sub Connector rated at 250V and 3A current, engineered for demanding industrial, communications, aerospace, and medical environments. The connector features a robust aluminium housing offering excellent electromagnetic interference (EMI) and radio frequency interference (RFI) shielding to ensure signal integrity in complex electrical systems.

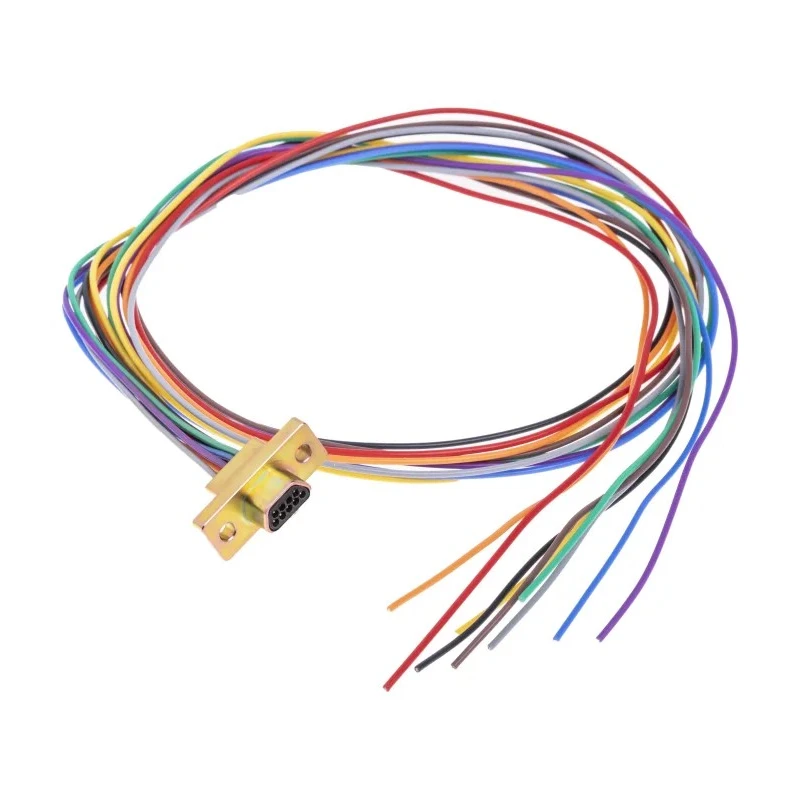

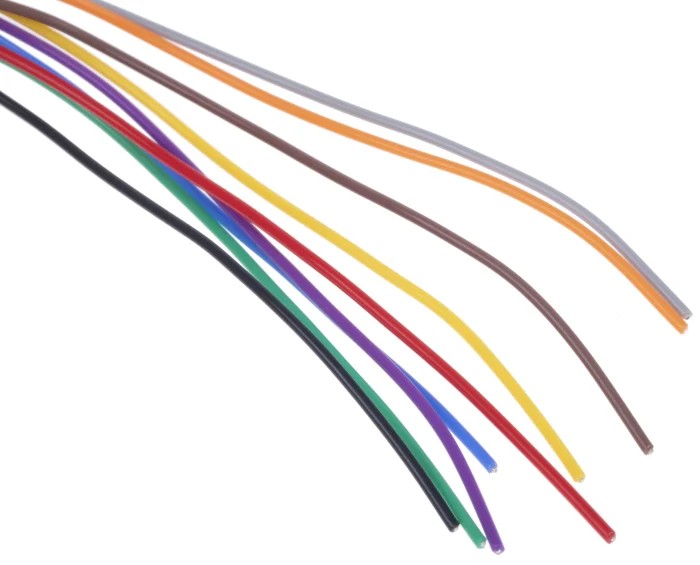

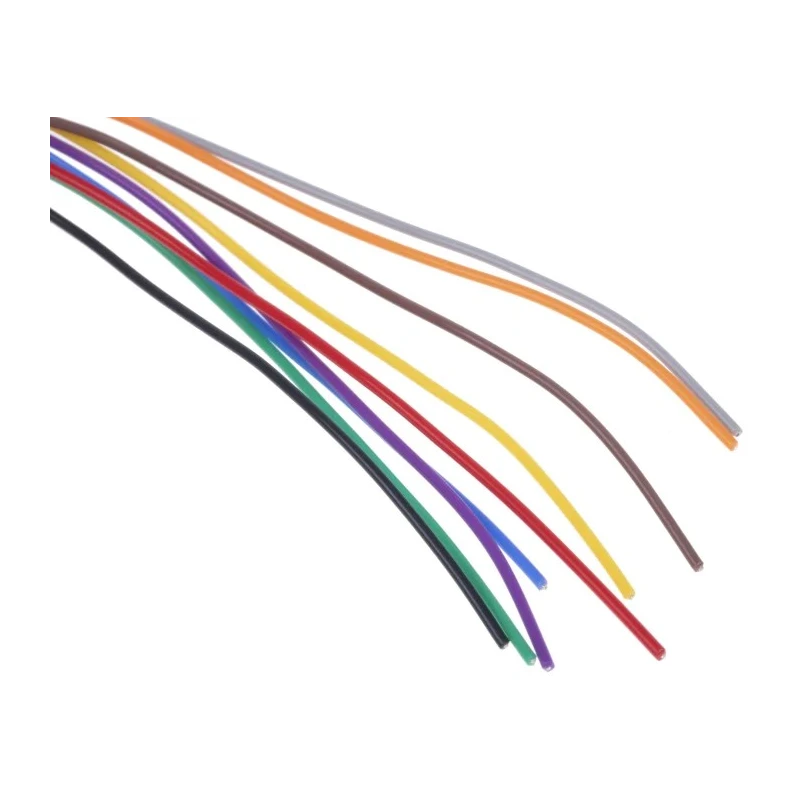

This Micro-D connector provides a high-density design with a contact pitch of 1.27mm, making it suitable for applications where space and weight reduction are critical. It comes pre-terminated with an 18-inch wire lead, facilitating easier integration into existing wiring assemblies.

Gold plated copper alloy contacts provide superior resistance to shock, vibration, and corrosion, ensuring a durable and reliable electrical connection. The connector's design includes an interfacial seal that protects contacts from moisture and humidity, which is essential for harsh and rugged environments.

The panel mount design is equipped with flanged sides for screw mounting to panels, ensuring secure mechanical fixation. Operating temperature capability ranges from -55°C to 135°C, supporting use in extreme temperature conditions typical of aerospace, industrial, and outdoor applications.

This product is compliant with the MIL-PRF-83513-D military specification and UL94V-0 flammability standards, underscoring its suitability for demanding technical applications. Compact high density design suitable for limited space applications.

Aluminium housing provides excellent EMI and RFI shielding. Gold plated copper alloy contacts ensure resistance to shock and vibration. Panel mount type with flanges for secure installation. Operates at voltage rating of 250V and current rating of 3A.

Wide operating temperature range from -55°C to 135°C for harsh environments. Termination by solder type for reliable connections. Compliant with MIL-PRF-83513-D and UL94V-0 standards.

This connector is widely used in networking and communications equipment, data processing systems, sensors and data loggers, industrial and medical equipment, portable electric generators, as well as aerospace and spacecraft systems.
