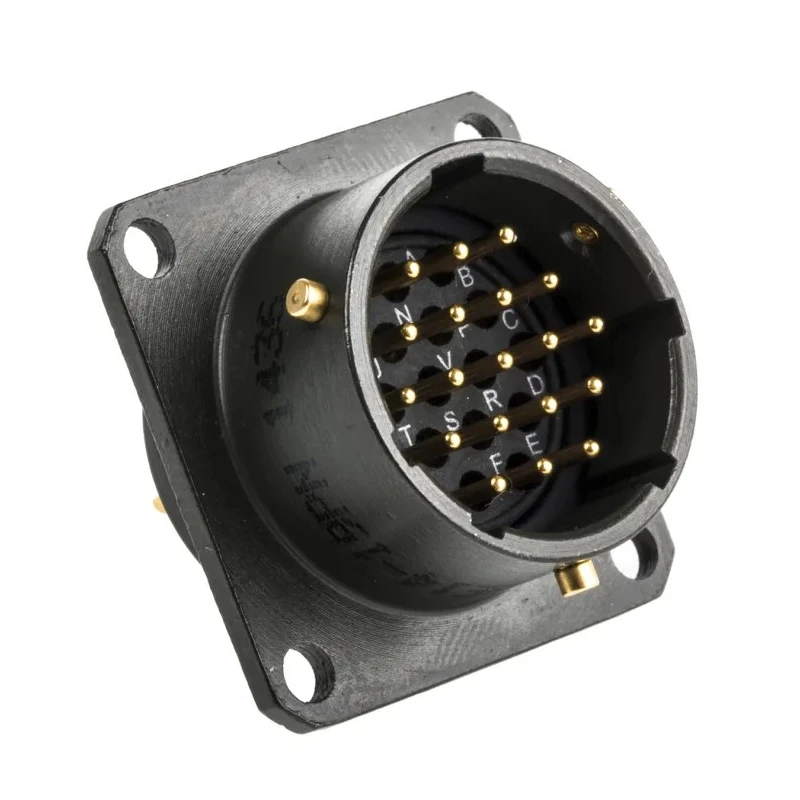

Amphenol Limited MIL Spec Circular Connector 19 Contacts 500-700V AC Aluminium Shell Box Mount Bayonet Lock 62GB-12E14-19PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-12E14-19PN |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 19 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |
| Connector, circular, UK 105, MIL C 26482, plug, chassis mount, 19 wayBrand | AB Electronic |
Key Features
- The connector has a bayonet lock mating system ensuring a secure and reliable connection.
- It features a robust aluminium shell with zinc cobalt olive drab plating for corrosion resistance.
- Rated for 500, 700V AC voltage with a miniature shell size 14 suitable for box mounting.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Includes gold-plated copper tin contacts with solder termination for optimal conductivity.
- Compliant with MIL-DTL-26482 military standard and designed to prevent mismating with a keyed assembly.
- Offers a high degree of environmental protection when mated, ideal for demanding industrial and military use.
Product Description
Amphenol Limited 62GB-12E14-19PN Mil Spec Circular Connector is a high-quality miniature circular connector designed to meet stringent military standards (MIL-DTL-26482). Featuring a bayonet lock mating system for secure connections, this 19-contact connector is built with a strong aluminium shell coated with zinc cobalt olive drab plating to ensure excellent corrosion resistance and durability. Its box mount housing and miniature shell size 14 make it suitable for compact installations that demand rugged performance.
This connector supports alternating current voltages of 500 and 700V and is engineered to operate reliably in extreme environmental conditions, from -55°C to 125°C. The copper tin contacts are gold plated and terminated by solder, ensuring excellent electrical conductivity and mechanical stability. The 62GB series includes keying to avoid mismating, contributing to system safety and reliability.
The connector's strain relief feature enhances durability by protecting soldered terminations from mechanical strain and vibration. Its olive-colored shell finish provides additional resilience in challenging environments. This model is ideal for industrial, military, aerospace, and other high-demand applications where a compact, corrosion-resistant circular connector is essential.
Bayonet lock mating system for secure connection and easy engagement. Durable aluminium shell with zinc cobalt plating for corrosion resistance. Complies with MIL-DTL-26482 military specifications for rugged applications.
Gold plated copper tin contacts with solder termination for superior conductivity. Operates in extreme temperatures from -55°C to 125°C. Miniature shell size 14 with box mount installation capability. Olive drab finish enhances environmental protection and durability.
Strain relief provided for mechanical stability and longevity.
This connector is suitable for military and industrial applications requiring reliable electrical connections under harsh environmental conditions. Explore more quality circular connectors and MIL Spec components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 500 and 700V AC voltage.
It operates reliably in temperatures ranging from -55°C to 125°C.
This connector features 19 contacts.
The housing is made from aluminium with zinc cobalt plating for corrosion resistance.
It uses solder termination for its contacts.
The connector includes keying to prevent mismating, enhancing safety and reliability.
This model has a miniature shell size of 14.
It utilizes a bayonet lock mating system for secure connections.
The contacts are made from copper tin and are gold plated for optimal conductivity.
It complies with the MIL-DTL-26482 military standard.
This model is designed for box mount installation.
The shell of this connector has an olive color finish.
