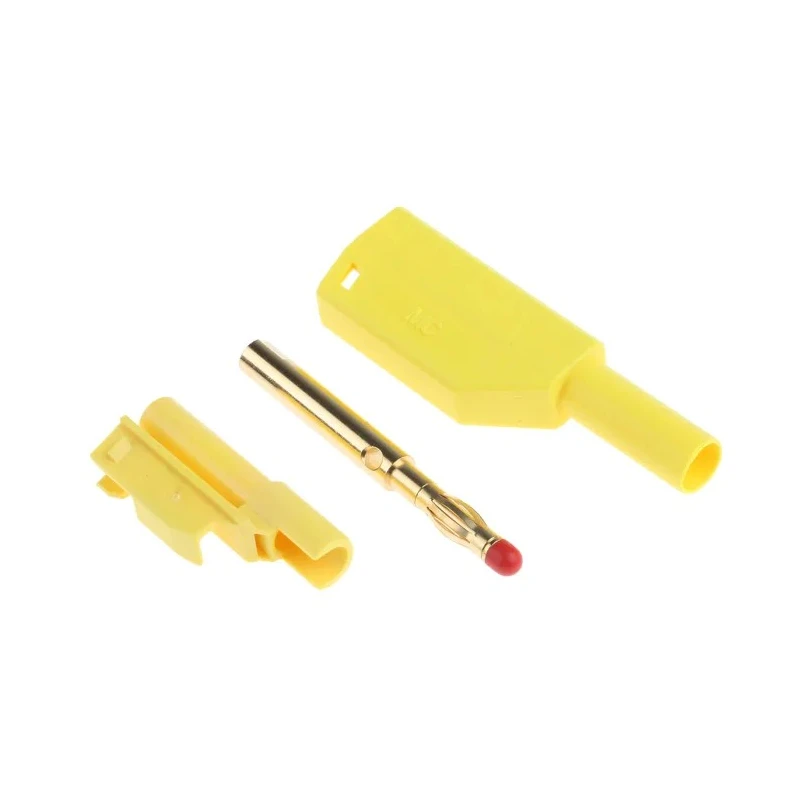

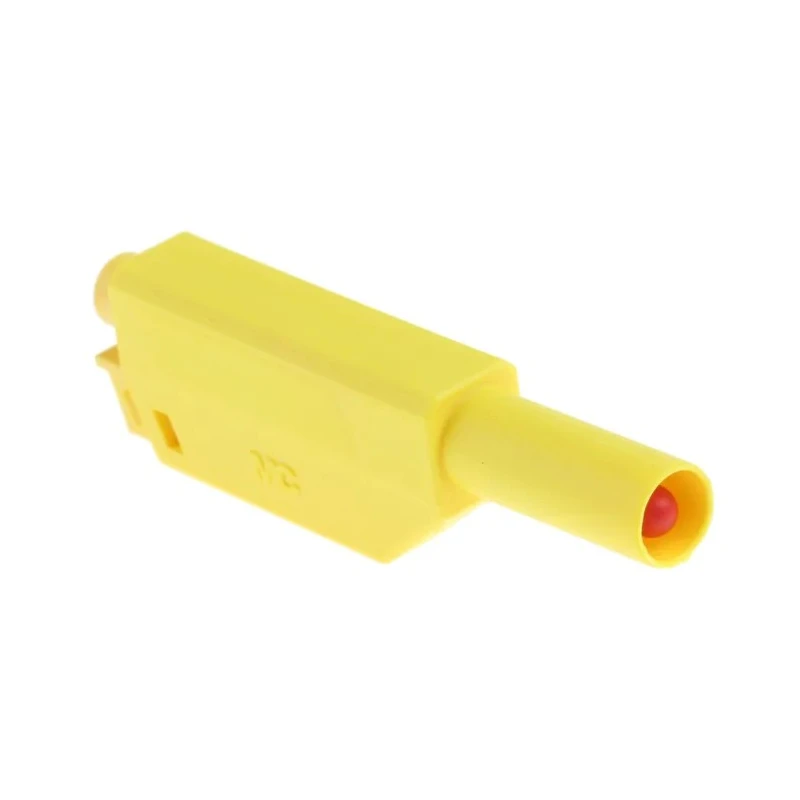

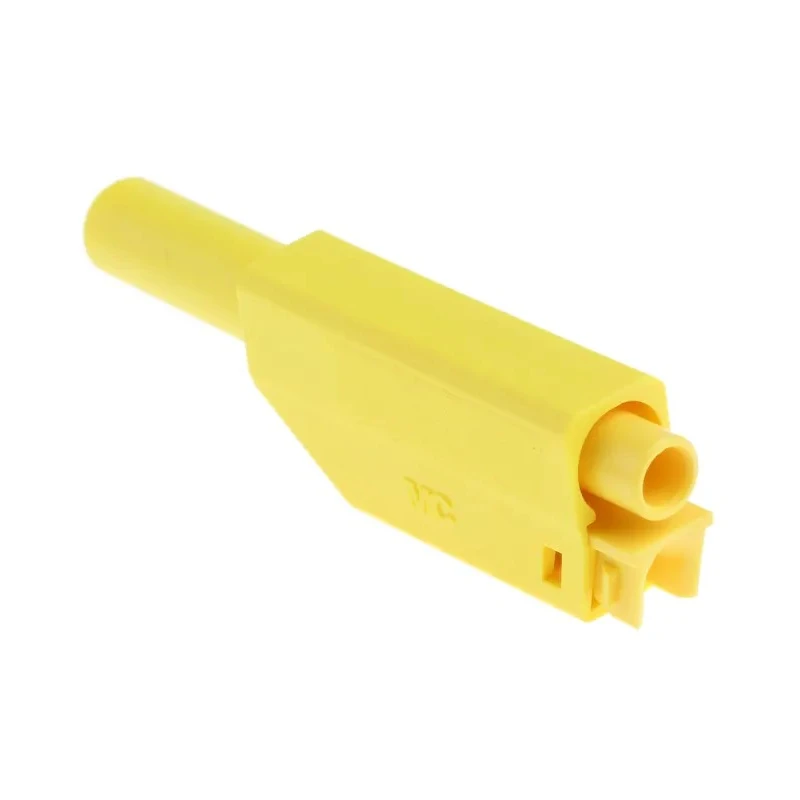

Staubli Yellow Male Banana Plug, 4 mm Connector, Solder Termination, 1kV, 32A, Gold Plating 22.2380-24 22.1203

Free Delivery in India | Lowest Global Shipping Charges

Staubli Yellow Male Banana Plug, 4 mm Connector, Solder Termination, 1kV, 32A, Gold Plating 22.2380-24 22.1203

Name: Staubli Yellow Male Banana Plug, 4 mm Connector, Solder Termination, 1kV, 32A, Gold Plating 22.2380-24 22.1203
Brand: Staubli
SKU: 137826
Price: 8.86 USD
Availability: InStock



Category Banana Connectors Brand Staubli Condition New

Specifications

Country of Origin	Switzerland
Voltage	1kV
Brand	Staubli
Colour	Yellow
Current	32A
Length	56.3mm
Connector Type	Banana Jack
Gender	Male
Contact Material	Brass
Insulation Material	Polyamide
Interfaces	Lantern style spring contacts
Contact Plating	Gold
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Connector Size	4 mm
Termination Method	Solder
Standards/Approvals IEC 1010, BS EN 61340-5-1	2007, ANSI/ESD S20.20:2014
4MM SAFE PLGS YELLOWBrand	NEUTRAL

Key Features

The plug features gold-plated brass contacts ensuring reliable conductivity.
It includes a spring-loaded MULTILAM design for secure self-assembly of test leads.
The rigid insulating sleeve is made from durable polyamide insulation material.
Lantern style spring contacts offer robust connection stability without retractable shrouds.
Designed to accommodate 2.5mm² cable with a maximum diameter of 4.1mm.
Measuring 56.3mm in length, this banana jack connector is suitable for heavy-duty testing.
Manufactured in Switzerland with a strict quality and safety rating, including CAT II classification.

Product Description

Staubli 22.2380-24 22.1203 Yellow Male Banana Plug, 4 mm Connector, Solder Termination, rated for 1kV voltage and 32A current, is engineered to provide reliable connectivity in various industrial and testing environments.

This male banana plug incorporates a spring-loaded MULTILAM contact mechanism, facilitating easy and secure connection in test lead assembly. The contact material is gold-plated brass, which ensures excellent electrical conductivity and minimizes corrosion risks. Its rigid polyamide insulating sleeve enhances safety by providing robust electrical insulation.

The connector features lantern style spring contacts that are non-retractable, improving connection integrity and durability during multiple insertions and removals. It is designed for use with cables up to 2.5mm² in cross-section and a maximum diameter of 4.1mm, making it suitable for heavy-duty electrical test applications.

This banana jack measures 56.3mm in length and is compliant with major safety and quality standards such as IEC 1010, BS EN 61340-5-1:2007, and ANSI/ESD S20.20:2014, ensuring suitability for automotive plant equipment, motorsports, aeronautics plants, and other demanding industrial contexts. The product is CAT II safety rated, guaranteeing enhanced protection against transient voltages.

The plug ensures secure and robust electrical connections for test and measurement applications. Gold-plated brass contacts provide excellent conductivity and resistance to wear. Spring-loaded MULTILAM contacts enable reliable self-assembly with test leads.

Polyamide insulation material offers high dielectric strength and safety. Designed for cables with maximum diameter 4.1mm and cross-section 2.5mm² for versatile usage. Length of 56.3mm supports ergonomic handling and connector stability.

Complies with international standards IEC 1010, BS EN 61340-5-1, and ANSI/ESD S20.20.

This banana plug is ideal for integration into automotive manufacturing, motorsports testing, aeronautics plant equipment, and other industrial electronic test environments. Its certified and robust design ensures long-term operational safety and reliability.
