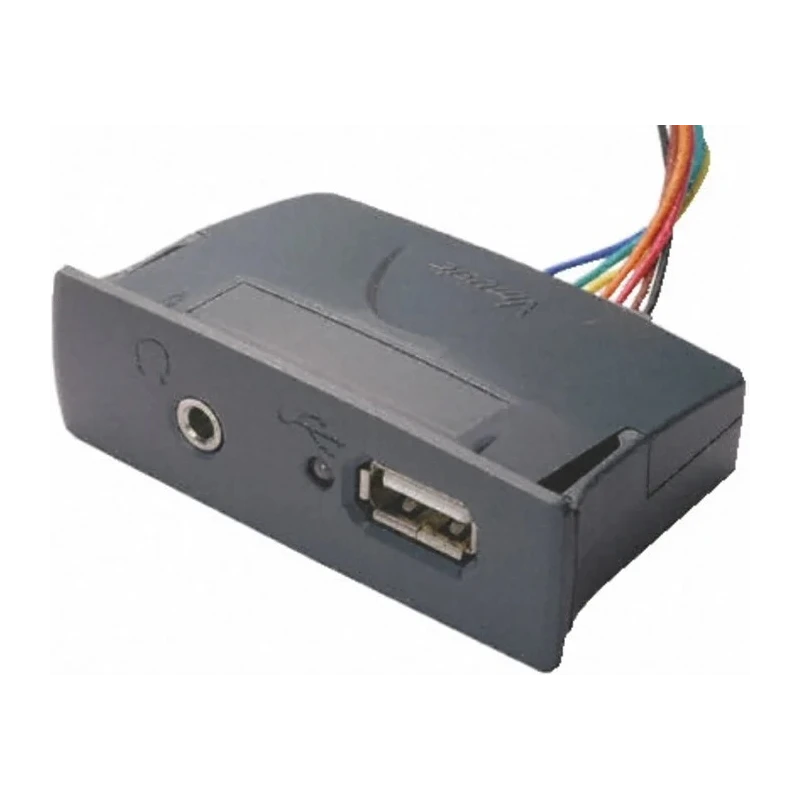

FTDI Chip USB-to-Audio Vinculum VNC1L Interface Board 12 MHz SPI, USB, UART VMUSIC2

FTDI Chip VMUSIC2 USB-to-Audio Vinculum VNC1L Interface Board operates at a maximum frequency of 12 MHz and supports SPI, USB, and UART interfaces for communication. This interface board enables product designs to integrate USB flash disk support while directly playing back MP3 and other common digital audio formats. It requires a minimal connection setup using only four signal lines plus 5V power supply and ground.

The device features a USB Type-A socket for straightforward connection to a USB flash disk, stereo 3.5mm headphone jack, and an audio line-out connector for versatile audio output options. Onboard jumpers allow selection between UART and SPI interfaces, enhancing flexibility in device communication. The firmware extends the Vinculum VDAP command set to facilitate control over audio playback, including file selection, volume, balance, and status monitoring.

This interface board includes a traffic indicator LED to provide real-time operation feedback. Firmware updates or programming can be performed either through the USB flash disk or via UART, simplifying development and deployment.

Constructed to be Pb-free and compliant with RoHS standards, this interface board is suitable for various industrial uses, including embedded audio playback in car audio systems and other applications that benefit from USB flash drive audio capabilities.

Supports USB Type-A socket for USB flash disk connection. Includes stereo 3.5mm headphone jack and audio line-out connectors. Jumper selectable UART or SPI interface options. Extended Vinculum VDAP firmware enables audio control functions.

Minimal wiring requirement with four signal lines plus power and ground. Traffic indicator LED for monitoring activity. Firmware programming via USB disk or UART interface. Pb-free and RoHS compliant construction. Ideal for embedded audio playback applications.

Suitable for industrial, communication, and embedded system development applications requiring USB interface and audio playback features. For further product options, explore the Communication & Wireless Development Tools category on EnvMart.
