Honeywell Technologies GLD Series Plunger Limit Switch DPST 10A, IP66 Fibreglass Reinforced Thermoplastic Housing GLDB06B

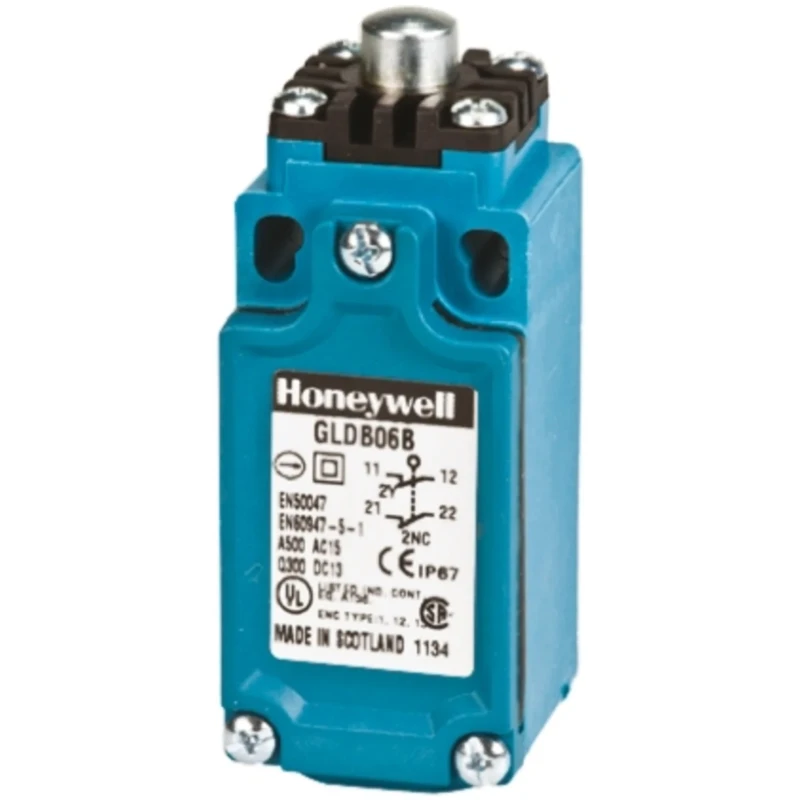

Honeywell GLDB06B GLD Series Plunger Limit Switch with DPST contacts and IP66 enclosure rating is engineered for precise position detection and reliable control in harsh industrial environments. Its robust fibreglass reinforced thermoplastic housing provides excellent mechanical strength along with resistance to corrosion and chemical agents, making it suitable for washdown and dusty locations.

Designed to provide dependable switching signals for automated equipment, this limit switch supports dual circuit functionality with slow action DPST contacts rated at 10A switching current. It operates effectively in ambient temperatures ranging from -40°C to 85°C, accommodating a diverse range of industrial conditions.

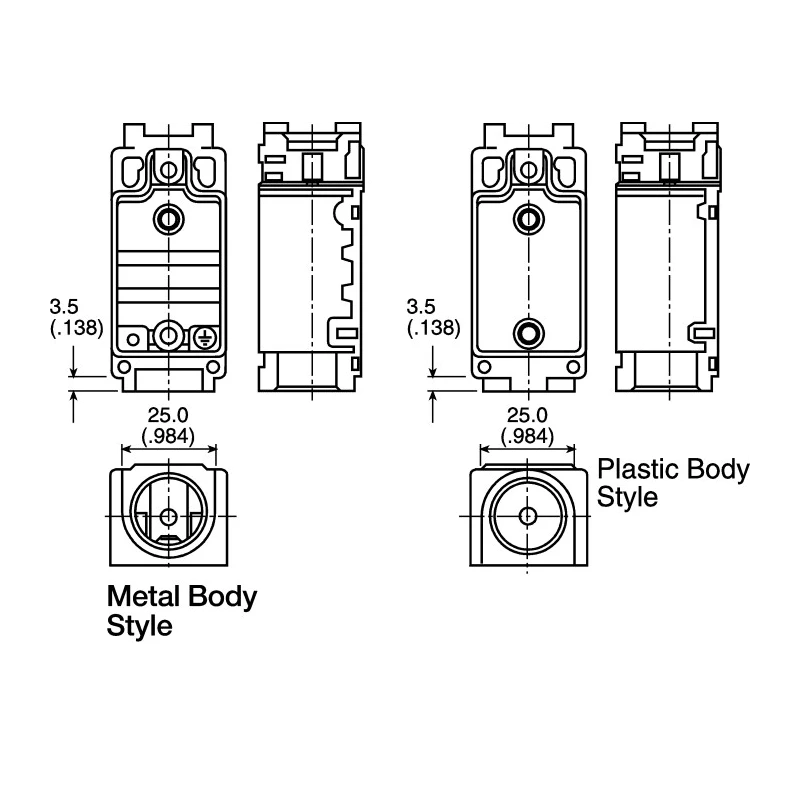

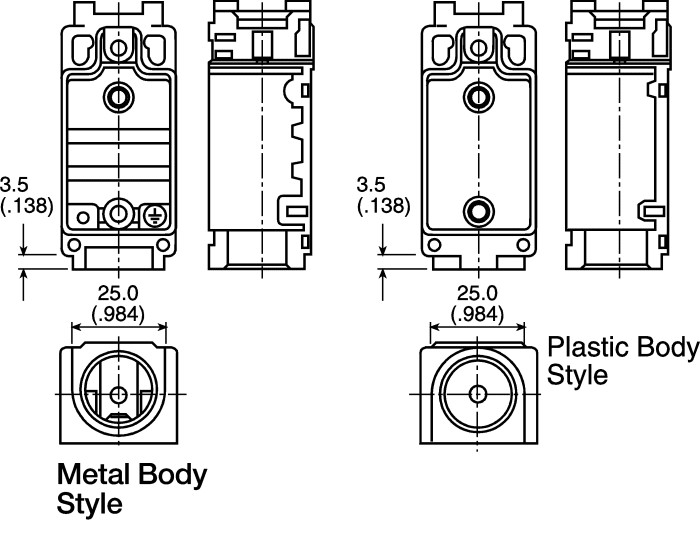

With a compact footprint (68.5mm length, 30.5mm width, and 26.35mm depth), the GLDB06B is suitable for panel and machinery mounting where space is limited. Electrical connections are facilitated through screw terminals, ensuring firm and reliable wiring installation. Mechanical durability is assured with a life expectancy of 10 million operating cycles, making it an ideal choice for high-frequency switching applications.

The 14N operating force provides accurate actuation with minimal applied force, enhancing switch responsiveness. The device supports switching voltages of 240V AC and 250V DC, covering typical industrial control voltage requirements. The PG13.5 conduit entry allows standardized conduit fittings for electrical wiring protection and routing.

Typical applications include conveyor end-of-travel detection, machine tool position sensing, safety interlock controls on access panels and guards, limit feedback on linear actuators, and control circuit switching in industrial control panels.

Manufactured in the United Kingdom and compliant with industry standards CCC, UL, CSA, and CE, the Honeywell GLDB06B offers industrial-grade reliability and precision. This product fits into industrial automation, manufacturing, material handling, and safety switch categories.

Features a fibreglass reinforced thermoplastic housing for enhanced durability and chemical resistance. Offers IP66 rating protecting against dust ingress and powerful water jets. Slow action contacts capable of switching currents up to 10A for dual circuit reliability.

Operates reliably across a wide temperature range from -40°C to 85°C. Screw terminal type ensures secure and easy wiring connections in the field. Compact size with dimensions 68.5mm length, 30.5mm width, and 26.35mm depth suitable for panel or machinery mounting.

Mechanical life rated for 10 million cycles, suitable for high frequency switching. 14N operating force allows precise actuation with minimal mechanical load. Supports switching AC voltage of 240V and DC voltage up to 250V.

Includes PG13.5 conduit entry for standardized wiring installation. Explore more Honeywell Limit Switches and control products on EnvMart for advanced industrial automation needs.
