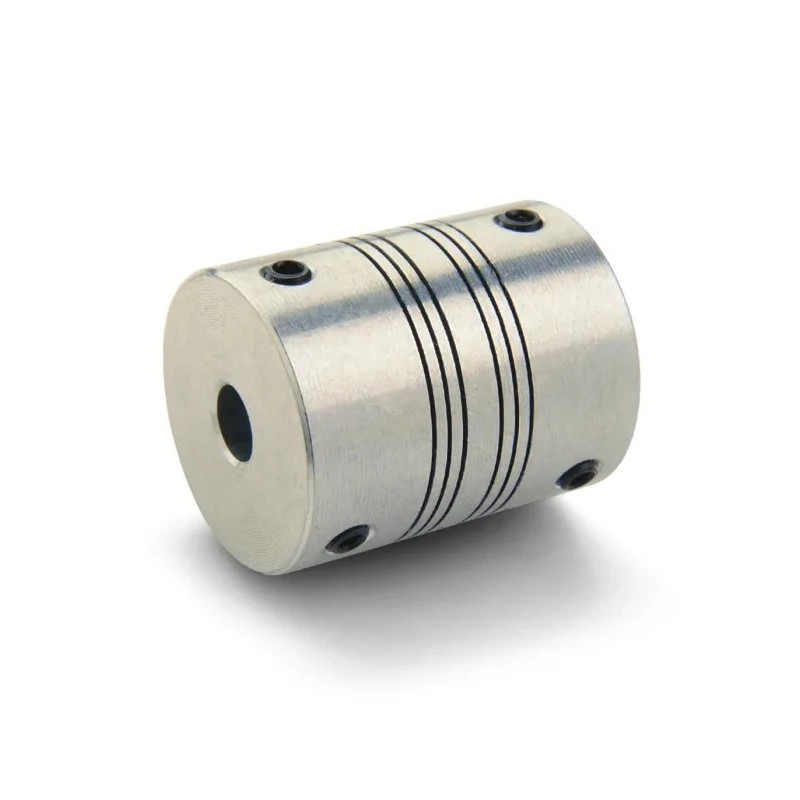

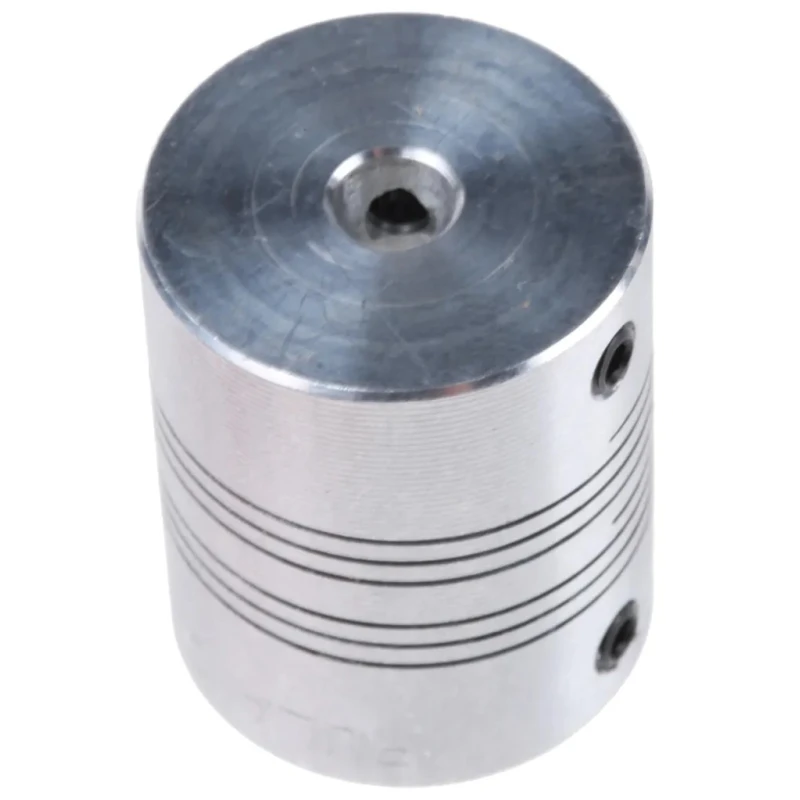

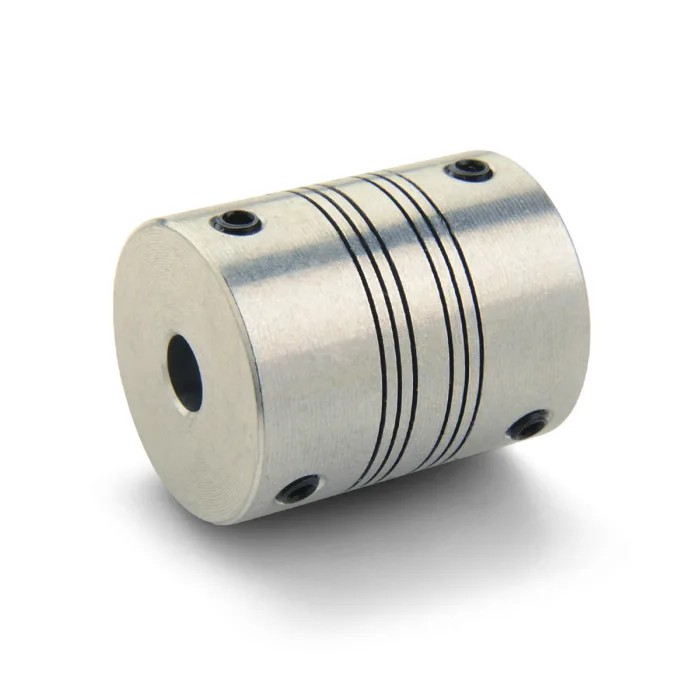

Ruland Aluminium Flexible Screw Style Coupler 25.4 mm OD 6 mm Bore 31.8 mm Length PSMR25-6-6-A
Specifications
| Country of Origin | United States |
|---|---|
| Screw Size | M4 |
| Brand | Ruland |
| Material | Aluminium |
| Length | 31.8mm |
| Model | PSMR25-6-6-A |
| Maximum Speed | 6000rpm |
| Number of Beams | 4 |
| Outside diameter | 25.4mm |
| Maximum Operating Temperature | 107°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 4.07Nm |
| Standards/Approvals | DIN 912 12.9, REACH, RoHS3 |
| Moment of Inertia | 3.394 x 10-6 kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.38mm |
| Misalignment - Axial | 0.25mm |
| Bore Size B | 6mm |
| RS PRO, 25.4 mm OD 6 mm, 31.8 mm Length 6 mm Flexible Beam CouplingRS Stock No. | 132-159Brand: RS PRO |
| Ruland, 25.4 mm OD 6 mm, 31.8 mm Length 6 mm CouplerBrand | Ruland |
Key Features
- Constructed from aluminium for lightweight and corrosion resistance.
- Outer diameter of 25.4 mm with 6 mm bore size on both ends.
- 31.8 mm length provides compact coupling solution.
- Capable of maximum speed up to 6000 rpm with a torque rating of 4.07 Nm.
- Features 4 flexible beams enabling up to 3° angular misalignment tolerance.

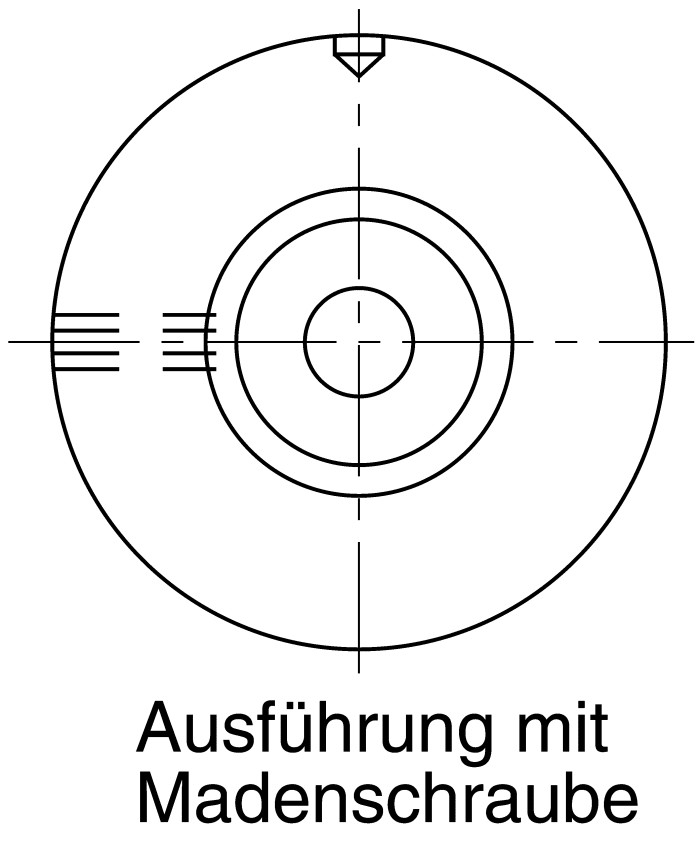

- Screw style fixing with M4 screw size ensures secure attachment.
- Operates across a temperature range of -40°C to 107°C.
- Precision torsionally rigid one-piece construction eliminates backlash.
Product Description
Ruland PSMR25-6-6-A aluminium flexible screw style coupler is engineered for demanding mechanical power transmission where high speed, misalignment, and durability are critical. Manufactured as a one-piece component, this coupling eliminates mechanical joints and potential failure points common in multi-part couplers.
The coupling has an outer diameter of 25.4 mm, bore sizes of 6 mm on both shaft sides, and a length of 31.8 mm. It features 4 flexible beams that permit torsional rigidity along with up to 3 degrees of angular misalignment, 0.38 mm parallel misalignment, and 0.25 mm axial misalignment. These characteristics ensure excellent performance in dynamic systems.
Constructed from aluminium, it offers corrosion resistance, lightweight design, and high operating temperatures capability up to 107°C. The coupling secures shafts using M4 screws in a screw-style fixing mechanism, promoting ease of assembly and reliability.
Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, and fans across various industrial, laboratory, and manufacturing environments.
Lightweight aluminium construction offers corrosion resistance. Flexible beams allow precise torque transmission with minimal backlash. Screw-style fixing ensures a secure shaft connection. Designed for high speed operation up to 6000 rpm.
Handles torque ratings up to 4.07 Nm reliably. Tolerates angular, parallel, and axial misalignments. Wide operating temperature range from -40°C to 107°C. Ideal for robotics, pump systems, and servo motor applications. This coupler complies with DIN 912 12.9, REACH, and RoHS3 standards, guaranteeing quality and environmental compliance.
Explore more Ruland mechanical power transmission components at EnvMart for your industrial, laboratory, and manufacturing needs.
Explore more products in our Mechanical Power Transmission Couplers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can operate at a maximum speed of 6000 rpm.
The torque rating is 4.07 Nm.
The coupler has an outer diameter of 25.4 mm, a bore size of 6 mm on both ends, and a length of 31.8 mm.
It is constructed from aluminium, providing lightweight and corrosion resistance.
It operates across a temperature range of -40°C to 107°C.
It can tolerate up to 3° of angular misalignment, 0.38 mm of parallel misalignment, and 0.25 mm of axial misalignment.
It uses a screw-style fixing with M4 screws to ensure a secure attachment.
Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, and fans.
It complies with DIN 912 12.9, REACH, and RoHS3 standards.
This model features 4 flexible beams that allow for torsional rigidity.
The moment of inertia is 3.394 x 10^-6 kg/m².
The one-piece construction eliminates mechanical joints and potential failure points common in multi-part couplers, enhancing reliability.
