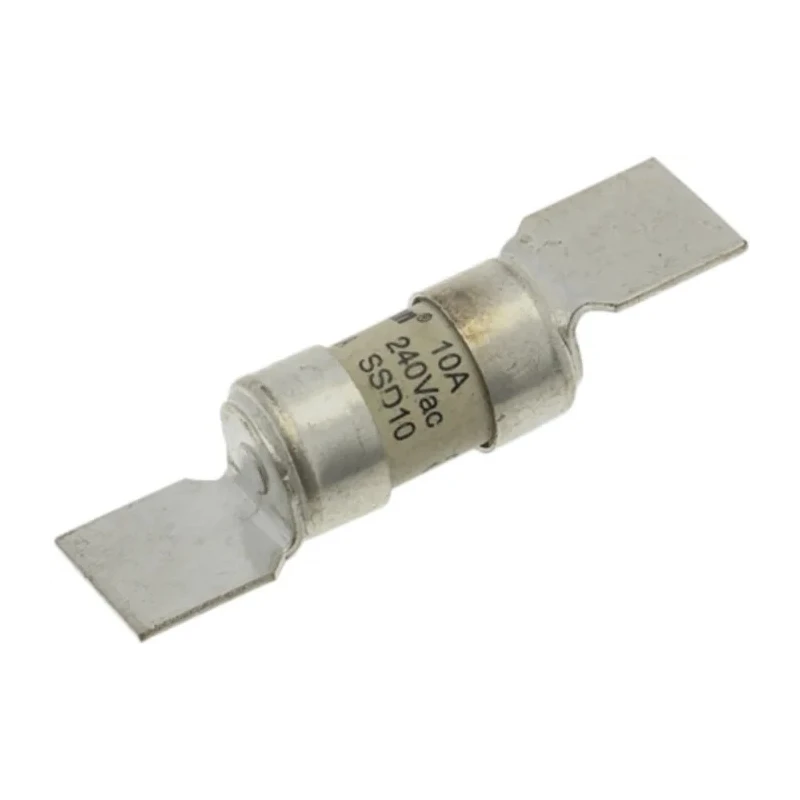

Eaton 10A British Standard HRC Offset Tag Fuse E1 240V AC SSD10

Eaton SSD10 10A British Standard HRC Offset Tag Fuse E1 240V AC is engineered for optimal circuit protection in industrial, electrical, and switchgear applications. This fuse is designed to act as a reliable weak link, breaking during overcurrent or short circuit events to safeguard electrical equipment and systems.

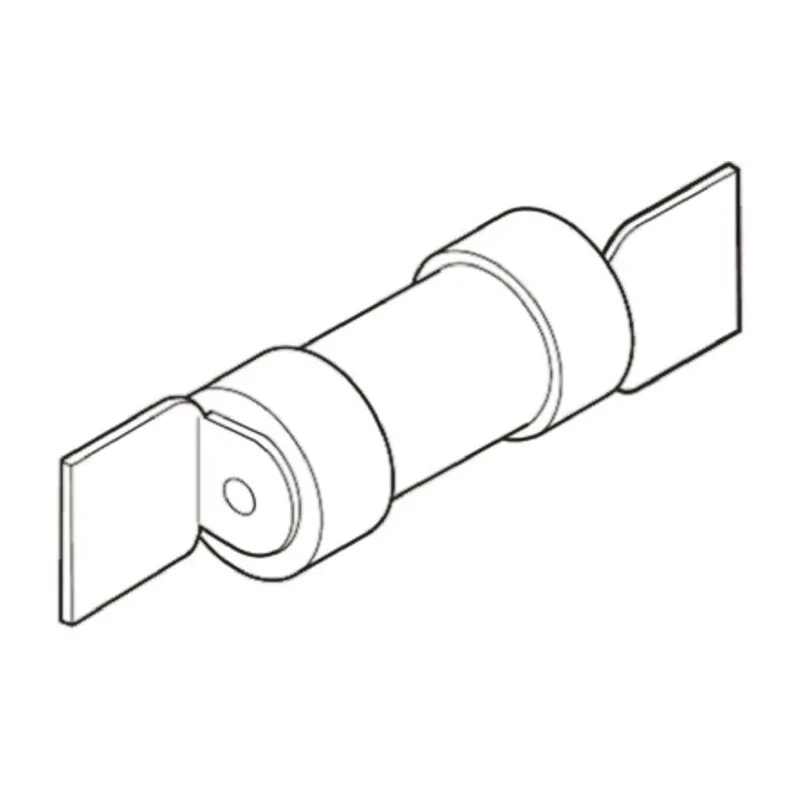

The fuse features an offset bolted tag design that allows it to be securely mounted on fuse holders, providing stable electrical contact and easy replacement. Rated for 10 amps and 240 volts AC, this fuse is classified under the gG application category, making it suitable for general purpose protection.

Its low temperature rise characteristic enables use in high-density mounting environments while maintaining thermal stability. The dimensions include a length of 48 mm and overall length of 47 mm, with a tag width of 12.7 mm, ensuring compact fitment in various assemblies.

It effectively protects wiring systems, switchgear, and industrial equipment from faults and overloads.

Benefits include low power loss typically 20% lower than BS 88 requirements, making it energy efficient alongside robust protection capabilities. This fuse is also suitable for three-phase applications and meets type 2 coordination performance to enhance upstream and downstream protection.

HRC fuse type designed to provide high rupture capacity for circuit protection. Offset bolted tag construction for secure mounting on fuse holders. Rated current of 10 amperes at 240 volts AC. Conforms to practice for industrial fuse applications with gG application category.

Low temperature rise allows for use in high-density mounting configurations. Typical length is 48 mm with an overall length of 47 mm for compact installation. Tag width is 12.7 mm with bolted tag type for easy replacement and secure contact.

Suitable for general purpose and type 2 coordinated applications as per IEC 947-4.

This Eaton British Standard Fuse is ideal for industrial automation, electrical distribution safety, switchgear assemblies, and maintenance applications requiring reliable short circuit protection. Browse EnvMart’s electronics and electricals category for more Eaton fuses and industrial automation components.
