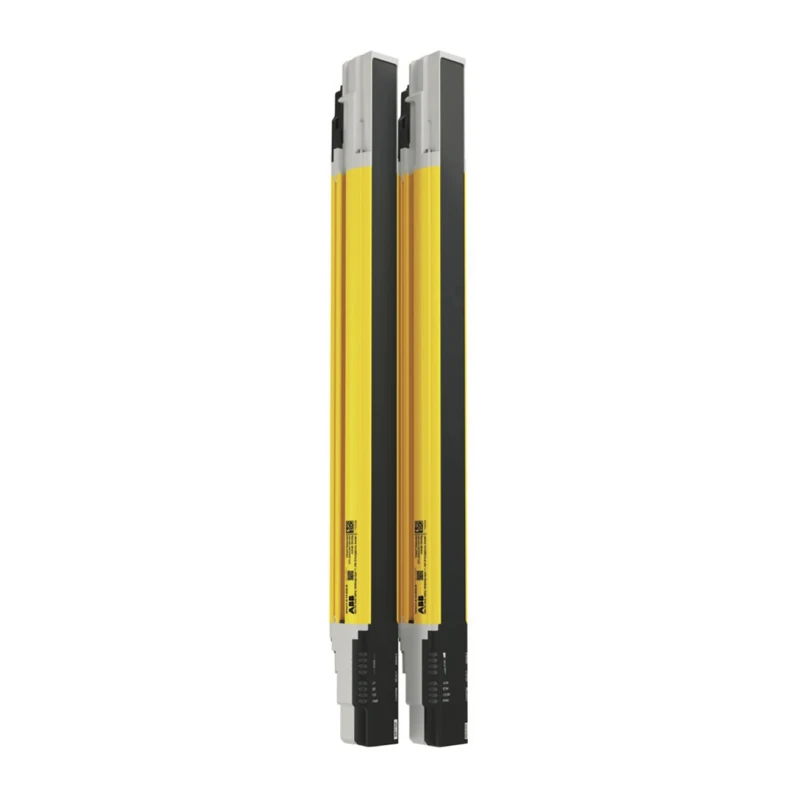

ABB Light Curtain Receiver and Sender with 48 Beams, 30 mm Beam Resolution, Type 4 Safety 2TLA022303R0500 Orion1-4-30-090-E

ABB 2TLA022303R0500 Orion1-4-30-090-E Light Curtain Receiver and Sender is engineered for high safety and efficiency in industrial environments. Featuring 48 beams with a 30 mm resolution, this safety light curtain is designed to detect fingers and hands accurately for machine safety applications.

Operating at a maximum supply voltage of 24 V DC, the device offers a protective height of 900 mm and can cover a maximum protective width of 20 meters. Its compact form factor with dimensions of 906 mm length, 41 mm height, and 35 mm width ensures easy installation in tight spaces near hazardous equipment.

This type 4 safety device includes M12 connectors that accelerate cabling and allow seamless integration into existing control systems. With a scanning distance range from 0.2 m to 20 m and a rapid response time of 25 ms, it ensures dependable real-time safety monitoring for machinery.

The integrated design enables direct connection of a local reset button without requiring additional cables or control modules. Alignment features such as rotation brackets and visible alignment levels facilitate swift and accurate installation, reducing downtime. Extensive error indication diagnostics further decrease troubleshooting efforts.

For industrial robustness, the light curtain is supplied with protective tubes and lens shields to withstand harsh operating conditions. The device also supports actuator monitoring without extra modules and is suitable for finger and hand detection in industrial safety applications.

Typical use cases include integration close to dangerous machinery, area protection with horizontal mounting, and facilitating manually serviced machines requiring frequent access while maintaining operator safety.

Type 4 safety light curtain for industrial safety applications. 48 beams providing 30 mm beam resolution for precise detection. Compact and robust design suitable for harsh environments. Facilitates easy and reliable cabling with M12 connectors.

Designed for finger and hand detection over extensive protective areas.

The ABB Orion1 light curtains meet international standards including EN ISO 13849-1:2008 PL e Cat 4, EN 61508-1..4:2010 SIL3, and EN 62061:2005/A1:2013 SIL CL 3. Certifications include CE, cULus, and TUV, confirming its suitability for rigorous safety applications.
