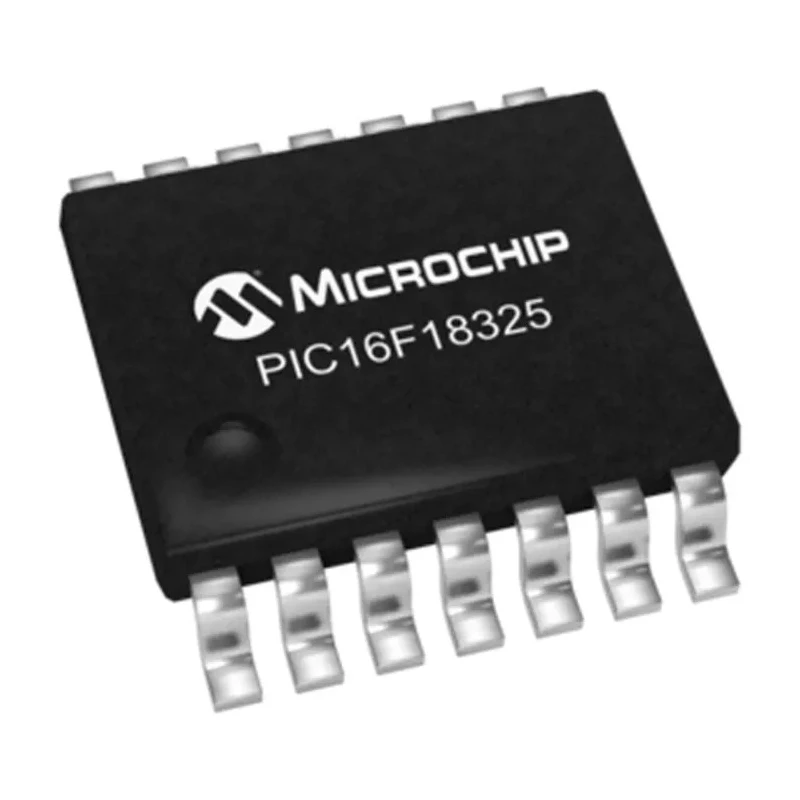

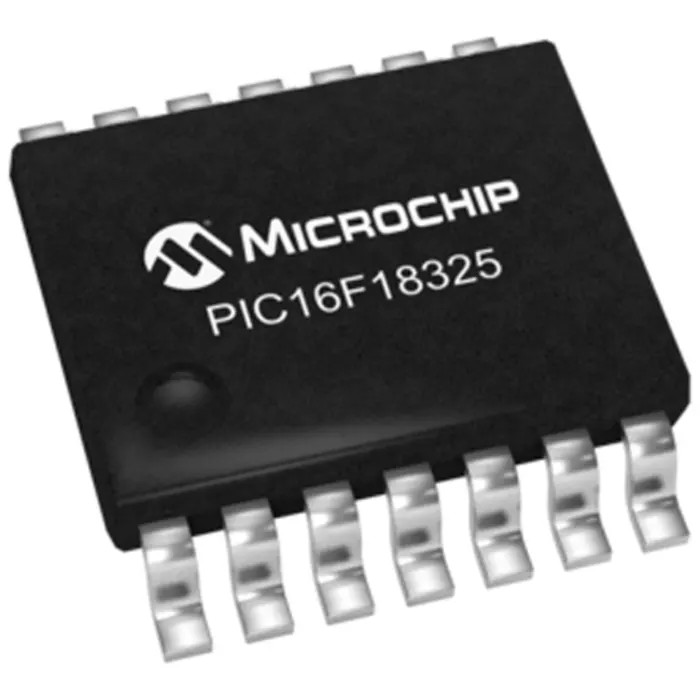

Microchip 8-bit PIC Microcontroller 32 MHz 14kB FLASH 14-Pin SOIC PIC16F18325-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F18325-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.024kB |
| Operating Current | 8 μA @ 32 kHz 1.8 V (typical) |
| Interface Type | EUSART, I2C, SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 7 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Watchdog Timer | 250 nA @ 1.8 V (typical) |
| Sleep Mode | 40 nA @ 1.8 V (typical) |
| Secondary Oscillator | 300 nA @ 32 kHz |
Key Features
- Operates with an Enhanced Mid-Range core architecture for efficient processing.
- Supports EUSART, I2C, and SPI interface protocols for versatile connectivity.
- Includes 12 programmable I/Os and 1.024kB RAM for application flexibility.
- Offers low power consumption with Sleep, IDLE, and DOZE modes for energy saving.
- Contains 11 x 10-bit ADC channels and a 5-bit DAC for analog interfacing.
- Features multiple timers including four 8-bit and three 16-bit timers for precise timing control.
- Provides advanced peripherals such as Comparators, Configurable Logic Cells, and PWM modules.
- Wide operating voltage range from 1.8V to 5.5V and temperature range from -40°C to 85°C.
Product Description
Microchip PIC16F18325-I/SL is a highly efficient 8-bit microcontroller based on the Enhanced Mid-Range PIC architecture, delivered in a compact 14-pin SOIC surface-mount package. It operates at a maximum clock speed of 32 MHz and offers 14kB of FLASH program memory coupled with 1.024kB of RAM to handle complex processing tasks.
This microcontroller integrates a wide range of peripherals and power-saving features including SLEEP, IDLE, and DOZE low power modes, making it suitable for battery-operated and energy-conscious designs. It supports multiple serial communications interfaces including EUSART, I2C, and SPI, allowing flexible connectivity options in embedded systems.
The device includes 12 programmable inputs/outputs and analog components such as 11 channels of 10-bit ADC, a 5-bit DAC, and two analog comparators, enabling sophisticated analog signal processing and control. With seven timers (four 8-bit and three 16-bit), pulse width modulation (PWM) modules, configurable logic cells, and waveform generators, it is well-suited for real-time control applications.
Operating voltage ranges from a minimum of 1.8V up to a maximum of 5.5V, and the device is rated for industrial temperature operations from -40°C to 85°C. It also features hardware protection like Power-On Reset (POR), Brown-Out Reset (BOR), and an Extended Watchdog Timer (WDT) to ensure robustness in demanding environments.
This microcontroller is ideal for use in industrial automation, automotive electronic control units, consumer electronics, and robotics applications requiring low power consumption and configurable peripheral sets.
Operates on a maximum CPU speed of 32 MHz with 8 MIPS performance. Features 14kB FLASH program memory with FLASH technology for reliable code storage. Includes versatile peripheral set: EUSART, I2C, SPI interfaces for communication.
Offers low power modes and peripheral module disable for minimal energy usage. Incorporates multiple timers and PWM modules for precise timing and control. Additional features: internal oscillator, configurable power-up timer, and peripheral pin select.
Explore more Microcontrollers and related components in Microchip's range at EnvMart, your trusted electronics and electrical components partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It supports EUSART, I2C, and SPI interface protocols for versatile connectivity.
The operating voltage range is from 1.8V to 5.5V.
This model features 14kB of FLASH program memory.
It includes 1.024kB of RAM for application flexibility.
It offers 12 programmable I/Os.
The temperature operating range is from -40°C to 85°C.
This microcontroller includes seven timers: four 8-bit and three 16-bit timers.
It comes in a 14-pin SOIC surface-mount package.
The maximum power dissipation is 800 mW.
Yes, it includes 11 channels of 10-bit ADC and a 5-bit DAC for analog interfacing.
It supports low power modes including SLEEP, IDLE, and DOZE for energy saving.
