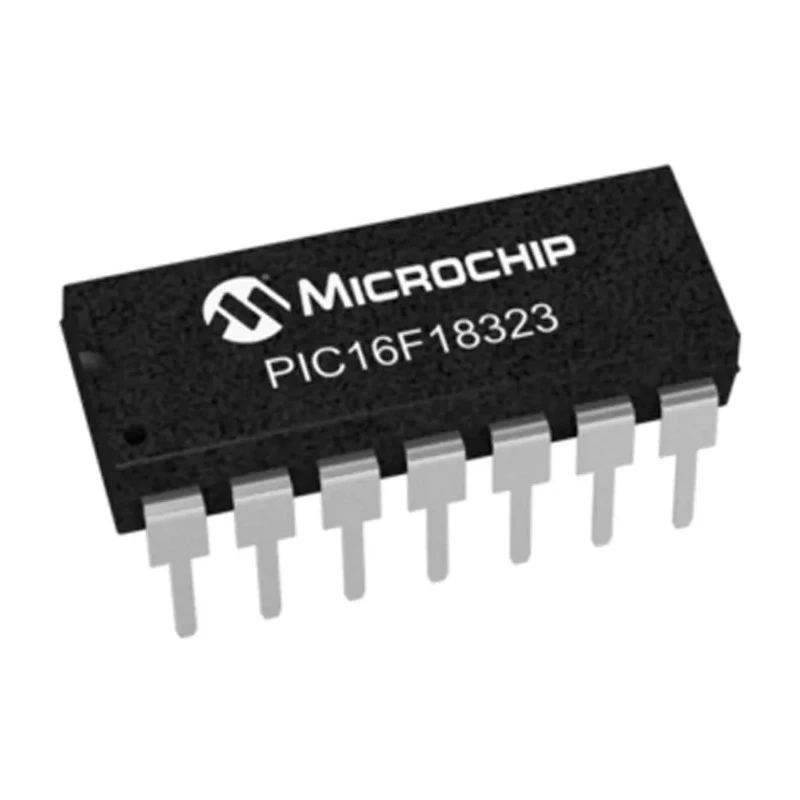

Microchip 8-Bit PIC Microcontroller 32 MHz 3.5kB FLASH 14-Pin PDIP PIC16F18323-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 5.33mm |
| Length | 19.56mm |
| Model | PIC16F18323-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Operating Current | 8 μA @ 32 kHz 1.8 V (typical) |
| Interface Type | SPI, I2C, EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Watchdog Timer | 500 nA @ 1.8 V (typical) |
| Sleep Mode | 50 nA @ 1.8 V (typical) |
| Secondary Oscillator | 500 nA @ 32 kHz |
Key Features
- Operates at a maximum clock speed of 32 MHz for efficient processing.
- Features 3.5 kB of FLASH program memory for versatile application programming.
- Equipped with 256-bit RAM and 18 programmable I/O pins for flexible interfacing.
- Supports SPI, I2C, and EUSART interface types for communication.
- Low power consumption with multiple power-saving modes including Sleep, Idle, and Doze.
- Robust operating temperature range from -40°C to 85°C suitable for industrial environments.
- Includes advanced peripherals such as DAC, ADC channels, comparators, timers, and PWM modules.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Microchip PIC16F18323-I/P 8-Bit PIC Microcontroller is designed for a broad range of embedded applications requiring efficient processing at up to 32 MHz with robust power management features.
This microcontroller features a 14-pin PDIP package and includes 3.5 kB FLASH program memory alongside 256 bits of RAM, enabling the execution of complex tasks with minimal power consumption.
Its interface capabilities include SPI, I2C, and EUSART, supporting standard communication protocols widely used in industrial, commercial, and consumer electronics.
Power-saving modes such as Sleep, Idle, and Doze allow the device to reduce current consumption to as low as 50 nA during sleep mode, making it ideal for battery-powered and low-power applications.
The device operates reliably within a temperature range from -40°C to 85°C, suitable for demanding environments in automotive, industrial control, and HVAC systems. Operates at a maximum clock speed of 32 MHz. 3.5 kB FLASH memory for program storage.
256-bit RAM for data processing. 18 programmable I/O pins for versatile external connections. Integrated 10-bit ADC channels and a 5-bit DAC for analog interfacing. Multiple timers and PWM modules for control applications.
Supports in-circuit programming and debugging features. Low power operation with peripheral module disable capability. Conforms to RoHS environmental standards.
This Microchip PIC16F microcontroller is widely used in embedded electronics, industrial automation, sensor interfacing, control systems, and consumer products due to its flexibility and power efficiency. Environmental compliance ensures suitability for modern manufacturing requirements.
Explore a wide range of Microcontrollers and electronic components on EnvMart to support your project needs with trusted industrial-grade products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing capabilities.
It features a program memory size of 3.5 kB, which is suitable for various application programming needs.
This microcontroller supports SPI, I2C, and EUSART interface types for versatile communication options.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
It includes 18 programmable I/O pins for flexible interfacing with external components.
The PIC16F18323-I/P is equipped with 256 bits of RAM for data processing.
This model has low power consumption with typical operating current of 8 μA at 32 kHz and 1.8 V, and can reduce current consumption to as low as 50 nA in sleep mode.
It comes in a 14-pin PDIP package, suitable for through-hole mounting.
It includes 11 x 10-bit ADC channels and 1 x 5-bit DAC for analog interfacing, along with 2 analog comparators.
The maximum supply voltage for this microcontroller is 5.5 V, allowing for a range of operational scenarios.
Yes, it is compliant with RoHS standards, ensuring its suitability for modern manufacturing requirements.
The PIC16F18323-I/P is equipped with 3 timers for various timing and control applications.
