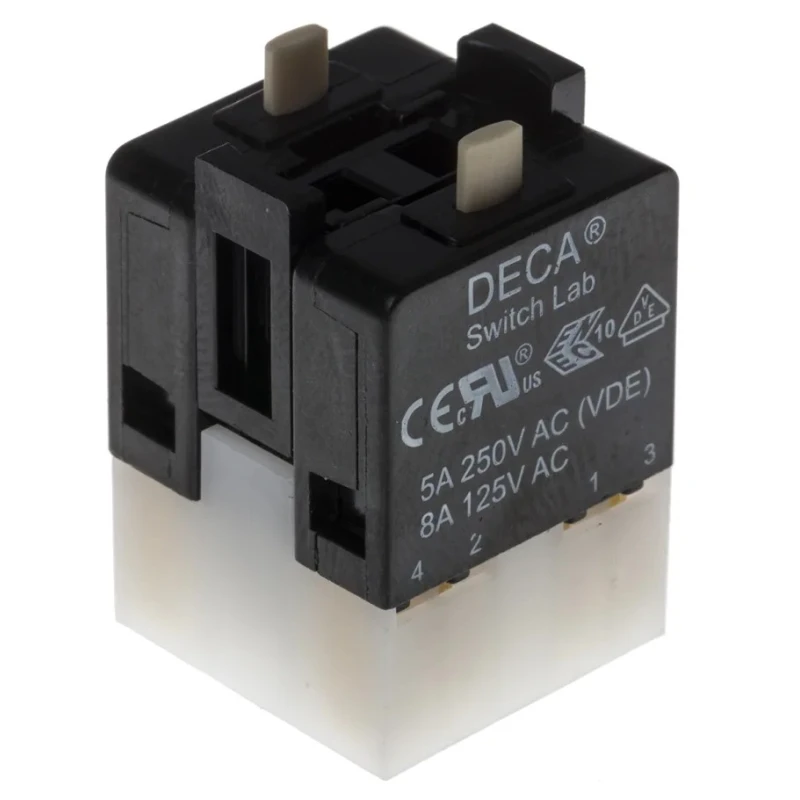

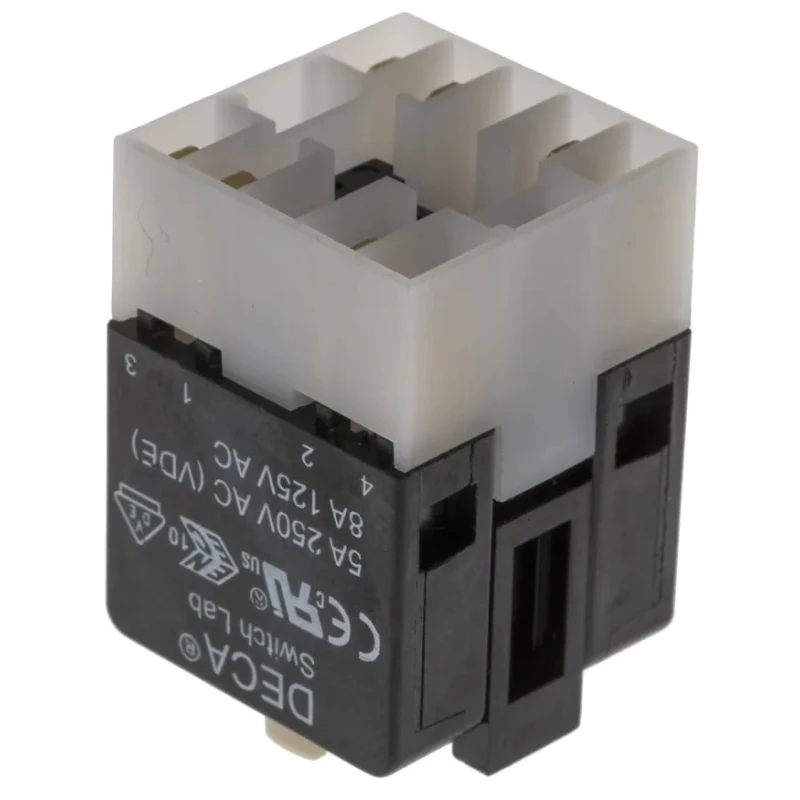

RS PRO Push Button Contact Block for Use with 16 mm Switches 250 V AC, 2 NO/2 NC 905-9852

RS PRO 905-9852 is a high-quality push button contact block designed for use with 16 mm switches, rated at 250 V AC with a 2 normally open (NO) and 2 normally closed (NC) contact configuration. This component is engineered for industrial, electrical, and automation applications requiring reliable switching performance and compatibility with standard 16 mm panel cut-outs.

The push button contact block is part of the ADA16S series, featuring modular construction that supports illuminated or non-illuminated options. Its sub-assembly design allows it to be combined with various push button operators and pilot light indicators, making it adaptable for numerous control and signaling purposes. The 2.8 x 0.5 mm universal terminals provide flexibility for soldering or plug-in connections.

Constructed to meet IP65 waterproof standards, the contact block can operate effectively within harsh environmental conditions. It supports panel cut-outs with thickness ranging from 0.5 mm to 5 mm, offering installation versatility. Silver contacts ensure excellent electrical conductivity and resistance to wear.

This push button contact block complies with VDE ratings for 5A at 250 V AC and 8A at 125 V AC, alongside UL94-V0 flame retardant material standards, emphasizing both electrical safety and material durability. Operating temperature range spans from -25°C to 70°C, enabling use in variable thermal conditions.

Compatible accessories such as lenses in different colors and shapes, lamp blocks, and bezel converters expand application options. The connector supports modular system integration in control panels for industrial, manufacturing, automation, and electrical distribution environments.

Features a 2 NO and 2 NC contact configuration for versatile switching. IP65 waterproof panel sealing enhances operational reliability. Universal terminals support direct soldering or plug-in receptacles. Silver contacts provide high conductivity and durability.

Designed for 16 mm panel cut-outs with thickness from 0.5 to 5 mm. VDE rated to 5A at 250V AC and 8A at 125V AC. UL94-V0 flame retardant material rating for safety. Operating temperature range from -25°C to 70°C. Modular and sub-assembled design supports illuminated or non-illuminated setups.

Compatible with push button operators, lenses, and pilot light indicators.

This RS PRO push button contact block is ideal for industrial automation, control panels, manufacturing, and electrical switchgear applications requiring reliable and safe switching components. Browse the Electronics & Electricals > Switches & Sockets > Push Button Contact Blocks & Light Blocks category for compatible accessories and related products on EnvMart.
