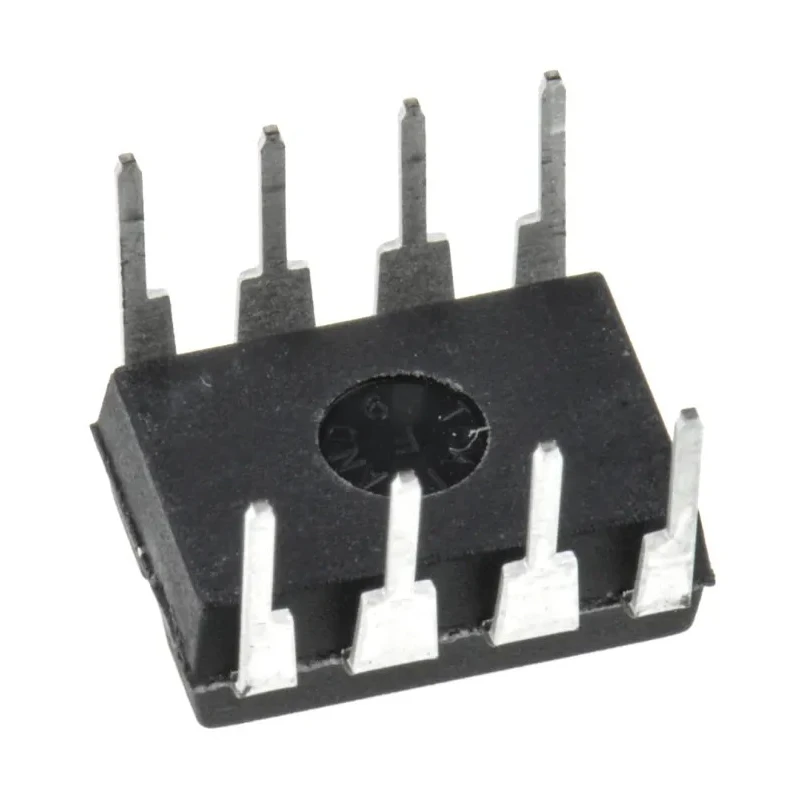

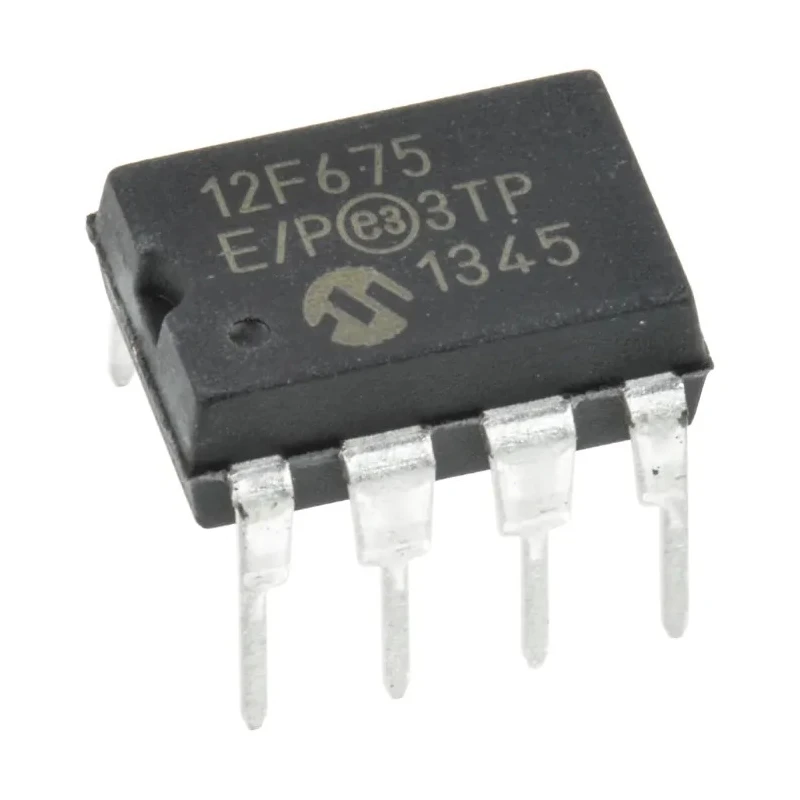

Microchip 8-Bit PIC12F675-E/P Microcontroller 20 MHz 1.75kB FLASH 8-Pin PDIP
Specifications
| Country of Origin | China |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 10.16mm |
| Model | PIC12F675-E/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC12F |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes an 8-bit PIC core architecture for efficient processing.
- Operating voltage range from 2 V to 5.5 V for versatile power supply compatibility.
- Features 64 bytes of RAM and 128 bytes of EEPROM for data storage.
- Includes 4 channels of 10-bit ADC for accurate analog signal measurement.
- Equipped with 2 analog comparators and 2 timers for precise control operations.
- Supports SPI interface for serial communication and In Circuit Serial Programming (ICSP).
- Compact 8-pin PDIP through-hole mounting for easy prototyping and installation.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
Product Description
Microchip PIC12F675-E/P is an 8-bit microcontroller from the PIC12F series featuring a 20 MHz maximum clock frequency and 1.75kB of FLASH program memory. This microcontroller is housed in a compact 8-pin PDIP package designed for through-hole mounting, making it easy to integrate into embedded system designs.
Its architecture is based on Microchip's mid-range PIC core with a 35-instruction set and an 8-level deep hardware stack, delivering processing speeds up to 5 MIPS. The device includes 64 bytes of RAM and 128 bytes of EEPROM for data retention and versatile memory usage.
Designed for precision and control, the PIC12F675-E/P offers 4 channels of 10-bit Analog to Digital Converters (ADC), 2 analog comparators, and two timer modules (one 8-bit and one 16-bit) for timing and counting applications. The internal RC oscillator provides ±1% accuracy, allowing stable clocking without external components.
The device supports Serial Peripheral Interface (SPI) for serial communication and features In Circuit Serial Programming (ICSP) for easy firmware updates and debugging.
The microcontroller operates within a supply voltage range of 2 V to 5.5 V and a temperature range of -40°C to 125°C, making it suitable for industrial and harsh environmental conditions. With a maximum power dissipation of 1 Watt, the PIC12F675-E/P ensures reliable thermal performance during operation.
8-bit PIC core with 35 instructions and 8-level hardware stack. 1.75kB FLASH program memory and 64 bytes RAM. 4 x 10-bit ADC channels with high resolution. 2 analog comparators for signal conditioning. Two timer modules for versatile control.
SPI interface and ICSP support. Through-hole 8-pin PDIP package for easy integration. Wide operating voltage and temperature ranges. This microcontroller is ideal for use in industrial electronics, embedded systems, automation control, and various digital interface applications.
Explore more from the Microchip PIC12F series and related Microcontroller products on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a voltage range of 2 V to 5.5 V.
This model features 1.75 kB of FLASH program memory.
The dimensions are 10.16 mm in length, 7.11 mm in width, and 4.95 mm in height.
It includes 4 channels of 10-bit ADC for accurate analog signal measurement.
This microcontroller supports SPI interface for serial communication and In Circuit Serial Programming (ICSP) for easy firmware updates.
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
This model is equipped with 2 timers, one 8-bit and one 16-bit, for versatile control applications.
It has 64 bytes of RAM for data storage and processing.
The maximum power dissipation is 1 Watt.
This microcontroller features 33 programmable I/Os.
It comes in a compact 8-pin PDIP package designed for through-hole mounting.
