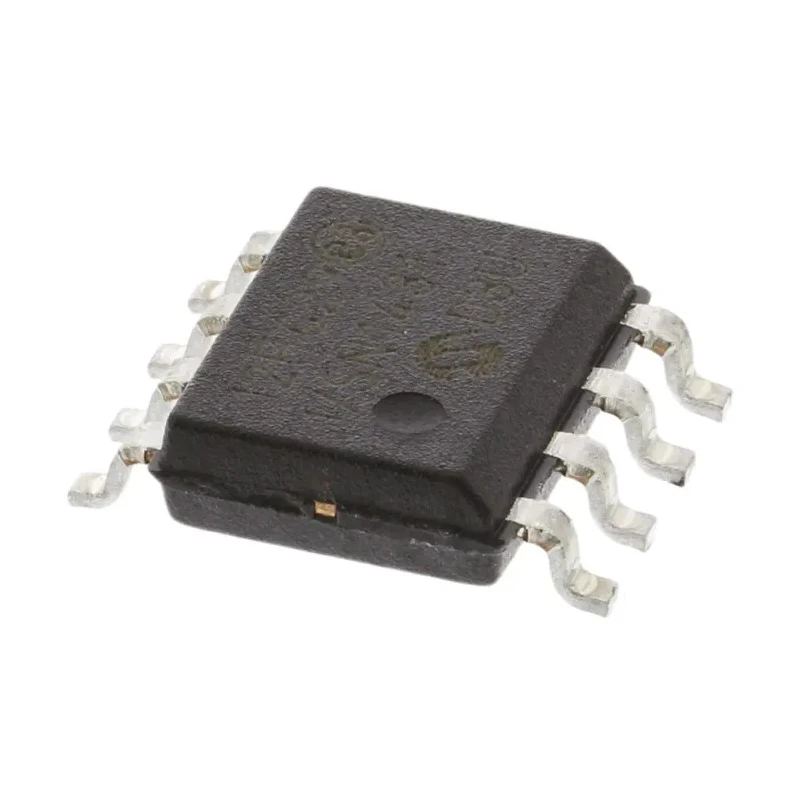

Microchip 8-Bit PIC Microcontroller PIC12F629-I/SN, 20 MHz, 1.75kB FLASH, 8-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12F629-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Based on the mid-range PIC core with 35 instructions and an 8-level deep hardware stack.
- Provides up to 5 MIPS performance with 1.75 Kbytes program memory and 64 bytes RAM.
- Features an internal RC oscillator with ±1% accuracy running at 20 MHz.
- Includes 22 programmable I/O pins and supports In Circuit Serial Programming (ICSP).
- Equipped with 1 analogue comparator and 4-channel 10-bit ADC (PIC12F675 only).
- Operating voltage range from 2 V to 5.5 V with maximum power dissipation of 800 mW.
- Device dimensions are 4.9 mm length, 3.9 mm width, and 1.5 mm height.
- Designed for operation between -40°C and 85°C ambient temperature.
Product Description
Microchip PIC12F629-I/SN is a highly reliable 8-bit PIC microcontroller featuring a 20 MHz maximum clock frequency and 1.75 kB of FLASH program memory. It is presented in an 8-Pin SOIC surface mount package suited for compact and low-power embedded applications in industrial, automotive, laboratory, and consumer electronics.
Built on Microchip's mid-range PIC core, this device includes an 8-level hardware stack and supports 35 instructions, delivering up to 5 MIPS processing speed. It offers 22 programmable I/O pins and features an internal RC oscillator with ±1% accuracy, reducing the need for external clock components and simplifying design.
This microcontroller incorporates analog features such as a single comparator and, in the PIC12F675 variant, a 4-channel 10-bit ADC ideal for sensor interfacing and analog signal processing tasks. It operates within a voltage supply range of 2 V to 5.5 V, making it versatile across various power scenarios.
The device supports In Circuit Serial Programming (ICSP), enabling convenient firmware updates and prototyping. Its robust power dissipation rating of up to 800 mW and industrial temperature range from -40°C to 85°C qualify it for demanding environments, including automotive and industrial control systems compliant with ISO/TS 16949 standards.
Compact physical dimensions of 4.9 mm by 3.9 mm by 1.5 mm ensure easy integration into space-constrained applications. This microcontroller family continues to be expanded by Microchip with ongoing feature enhancements and improved value propositions.
Based on Microchip's mid-range 8-bit PIC core with 35 instruction set. Includes 1 analogue comparator and up to 4 ADC channels. Operating frequency up to 20 MHz with internal RC oscillator. Supports 22 programmable I/O pins and ICSP functionality.
Voltage operation range from 2 V to 5.5 V with 800mW power dissipation. Meets automotive ISO/TS 16949 industry standard quality. Device size: 4.9 mm length, 3.9 mm width, 1.5 mm height.
This Microchip PIC12F629-I/SN microcontroller is ideal for embedded system designs in industrial, automotive, and consumer electronics requiring compact size, low power, and versatile analog and digital features. For more Microchip Microcontrollers and development tools, explore EnvMart electronics categories and brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 1.75 kB.
This microcontroller includes 22 programmable I/O pins.
The operating voltage range is from 2 V to 5.5 V.
The dimensions are 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
The maximum power dissipation is 800 mW.
It operates within a temperature range of -40°C to 85°C.
This model is presented in an 8-Pin SOIC surface mount package.
Yes, it supports In Circuit Serial Programming (ICSP) for firmware updates.
It includes 1 analogue comparator.
The PIC12F675 variant features 4 channels of 10-bit ADC.
It complies with the ISO/TS 16949 automotive standard.
