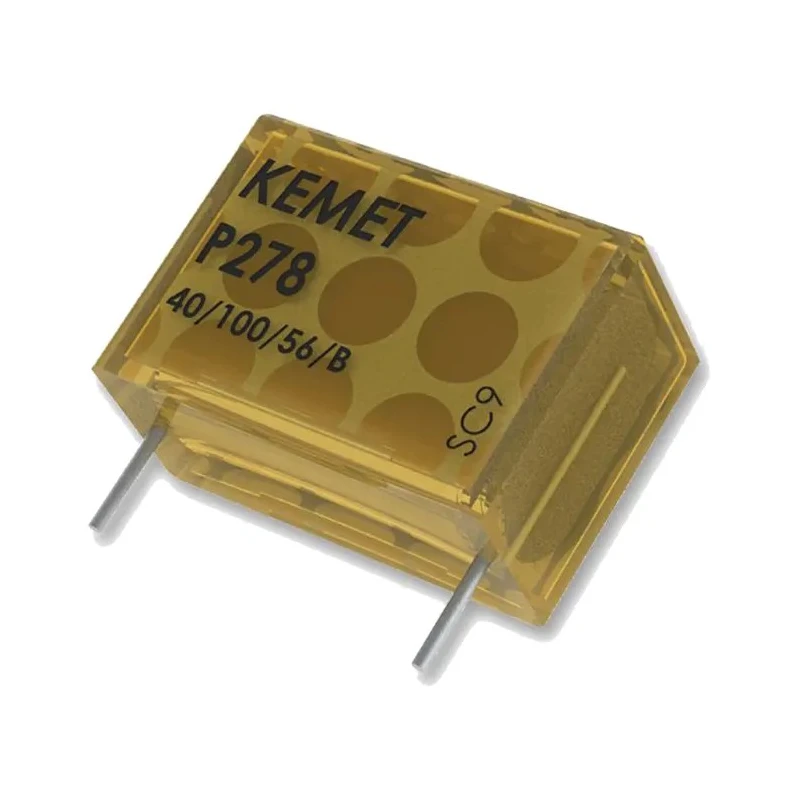

KEMET Paper Capacitor X1 Through Hole 2.2nF 480V ac 480V dc 110°C P278HE222M480A

KEMET P278HE222M480A Paper Capacitor X1 Through Hole 2.2nF 480V ac 480V dc 110°C is a robust passive electronic component used primarily for electromagnetic interference suppression in electronic circuits. It utilizes a multilayer metallized paper dielectric, encapsulated and impregnated with self-extinguishing materials compliant with UL 94 V - 0 standards.

This capacitor boasts excellent self-healing properties which promote longevity even under frequent overvoltage conditions. Its impregnated paper dielectric offers superior resistance to ionization, contributing to stability and reliability especially in continuous operation applications. The P278 series capacitors are particularly suitable for X1 class suppression and across-the-line interference mitigation.

Designed for through hole mounting, it features 2 pins with a 10.2mm lead pitch and 0.6mm lead diameter to ensure secure and durable PCB attachment. The capacitor can operate at temperatures up to 110°C, making it suitable for rigorous industrial environments.

Dimensions are compact with a 13.5mm length, 7.5mm height, and 3.9mm depth, allowing integration in space-constrained circuit layouts. The unit complies with UL, RoHS certifications and IEC 60068-1 standards ensuring safety and quality assurance.

Precise 2.2nF capacitance for accurate circuit performance. High rated voltages of 480V ac and 480V dc for demanding power applications. Self-extinguishing encapsulation enhances user safety in electrical environments. Reliable through hole mounting supporting secure mechanical and electrical connections.

Wide temperature tolerance up to 110°C for industrial and commercial use. Meets international standards including UL and RoHS for compliance and environmental safety. Robust build quality with metallized paper dielectric and impregnated materials.

Compact form factor facilitates easy installation in electronic assemblies.

This capacitor is commonly utilized in electronic manufacturing, power supply circuits, industrial equipment, and electromagnetic interference suppression scenarios. Engineer your designs for enhanced electromagnetic compatibility and reliability using the KEMET P278HE222M480A capacitor.
