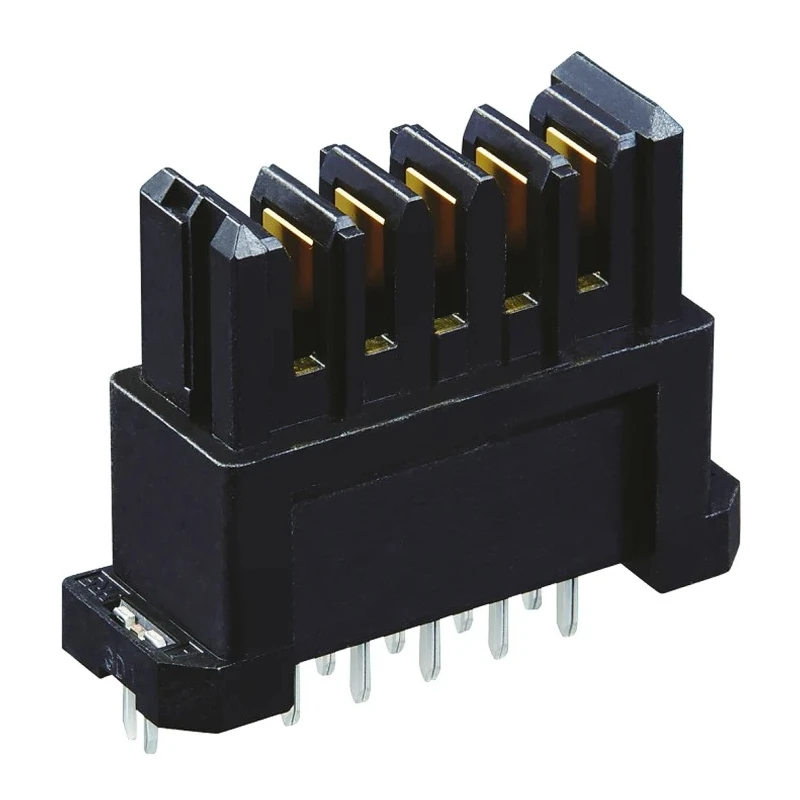

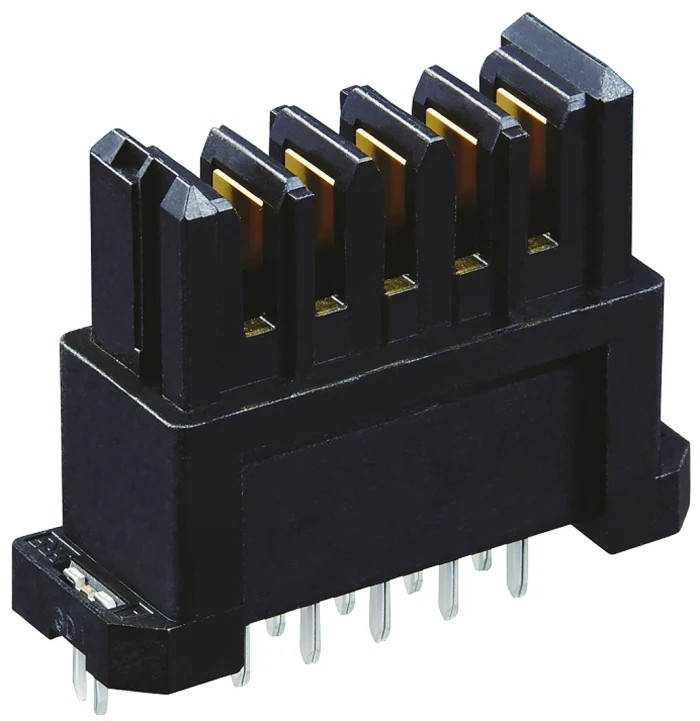

Hirose FunctionMAX FX30B Series Straight Through Hole PCB Header, 5 Contacts, 3.81 mm Pitch, 1 Row, Shrouded FX30B

Hirose FX30B Series Straight Through Hole PCB Header, model FX30B, offers a high-performance 5-contact connector with a 3.81 mm pitch and a single row configuration. This shrouded PCB header is designed for precise board-to-board connections using through hole mounting techniques, ensuring robust mechanical and electrical stability.

This connector features a unique floating structure that effectively absorbs mounting misalignment, allowing for a degree of play during mating with +0.3 mm in the XY directions and 1 mm in the Z direction. Such flexibility prevents stress on solder joints, reducing the risk of cracking and rework. The self-aligning and self-guiding structure, facilitated by large mating guides and molded posts, simplifies connection and prevents incorrect insertion.

Durability is enhanced by metal fittings on either side, providing resistance against deformation across multiple axes. The contacts are crafted from copper alloy with gold plating and a multi-point design, offering increased electrical reliability and a high current capacity ranging from 13 to 17 amps per contact. The dual-step contact timing ensures a low insertion and extraction force without compromising connection quality.

Operating effectively within a temperature range of -55°C to 105°C, the FX30B header supports a voltage of up to 250 V, making it suitable for demanding industrial, broadcast, medical, and instrumentation applications. The connector also complies with RoHS standards, ensuring environmentally responsible manufacturing.

Use cases for this connector include broadcast equipment, base station transceivers, industrial equipment, measuring instrumentation, medical devices, and projectors. Manufactured in Japan, the FX30B PCB Header is part of the FunctionMAX brand known for high quality and performance in industrial board-to-board connector solutions.

Floating structure absorbs mounting misalignment for reliable connections. Self-aligning and self-guiding design reduces insertion errors. Robust metal fittings provide secure attachment to PCB. Multi-point gold-plated contacts ensure high electrical reliability.

Supports high current capacity of 13 to 17A per contact. Low insertion and extraction force for ease of use. Wide operating temperature range from -55°C to 105°C. Through hole mount type for board-to-board connectors. Suitable for industrial, medical, broadcast, and instrumentation applications.

RoHS compliant and manufactured in Japan. Explore more products from the Hirose FunctionMAX series within the PCB connectors category at EnvMart for advanced industrial and electronic applications.
