EAO Illuminated Push Button Switch 19 mm Cutout Momentary SPDT Green LED IP65 IP67 240V 3A 82-5551.1136



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	China
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	NO, NC
Minimum Operating Temperature	-30°C
Panel Cutout Size	19 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	240V
Actuator Style	Flat
Switch Contact Current	3A
Contact AC Voltage	250V ac

Key Features

The switch operates momentarily with SPDT contact configuration.
It includes a natural-colored flat actuator for user-friendly operation.
The green LED provides daylight-readable illumination.
Rated for contact voltages of 240 V DC and 250 V AC with a maximum current of 3 A.
Constructed with a durable aluminium housing for robustness and longevity.
Suitable for harsh environments due to IK10 vandal resistance and IP67 ingress protection.
Temperature range from -30°C to 70°C for versatile industrial use.
Compact length of 34.5 mm for panel integration.

Product Description

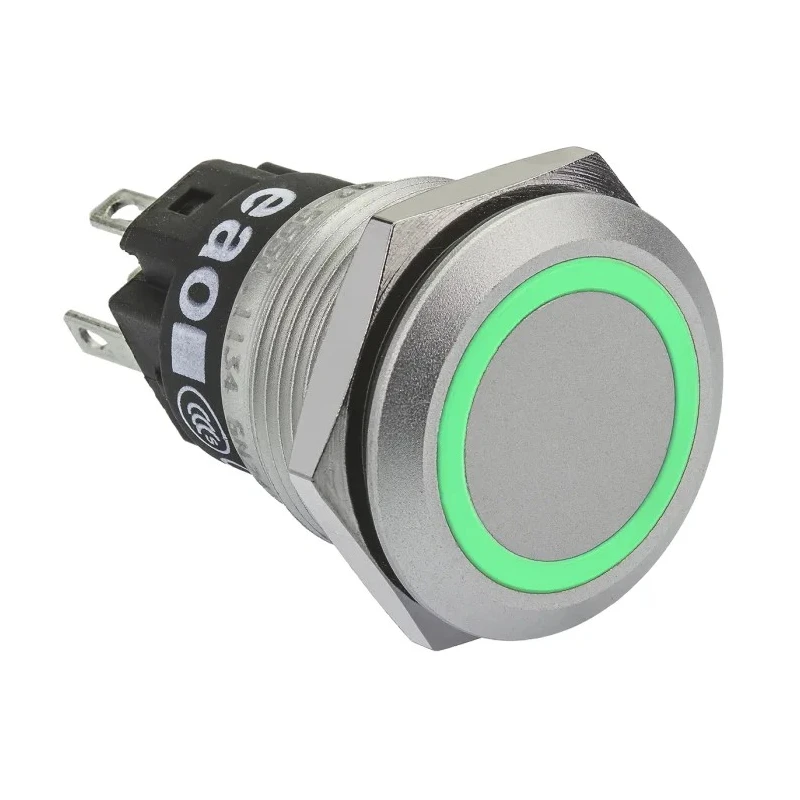

The EAO 82-5551.1136 Illuminated Push Button Switch is engineered for panel mounting with a precise 19 mm cutout, offering reliable momentary operation with SPDT contact configuration. It features a natural-colored, flat-style actuator that is ergonomically designed for excellent tactile feedback.

Constructed from aluminium, this robust switch ensures durability and resistance in demanding industrial environments. The integrated green LED illumination is daylight-readable, enhancing operator visibility in low-light or complex control panels.

This switch complies with protective ratings IP65 and IP67, providing excellent ingress protection against dust and water, making it suitable for outdoor and harsh industrial applications. Additionally, its IK10 rating confirms resilience to physical impacts, ideal for public areas and vandal-prone installations.

Operating temperature ranges from -30°C to 70°C, making it adaptable to diverse climates. The switch supports AC voltage up to 250 V and DC voltage up to 240 V with a switching current capacity of 3 A, suitable for multiple control scenarios.

Certification by CB, CCC, cUL, and UL standards underscores the reliability and compliance of this switch for industrial and automation uses such as manufacturing plants, electrical panels, HVAC controls, and process automation systems.

The switch operates momentarily with SPDT contact configuration. Natural flat actuator design provides excellent tactile action. Daylight-readable green LED illumination increases visibility. Robust aluminium body with IK10 vandal resistance.

IP65 and IP67 rated for dust and water ingress protection. Wide operating temperature range from -30°C to 70°C. Rated contact voltages of 240 V DC and 250 V AC with 3 A current. Compact 34.5 mm length suitable for various panel sizes.

Certified by CB, CCC, cUL, UL ensuring industrial safety standards. Manufactured in China meeting quality production standards.

This switch is ideal for deployment in electrical, automation, manufacturing, commercial, and industrial sectors requiring reliable, illuminated push button controls with high ingress protection and vandal resistance.
