| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Grey |
| THICKNESS | 0.8mm |
| Model | 809-2224 |
| Insulation | Uninsulated |
| Overall Length | 14mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 6mm |
| Inner Ring Diameter | 3.7mm |
| Stud Size | 6 mm |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |

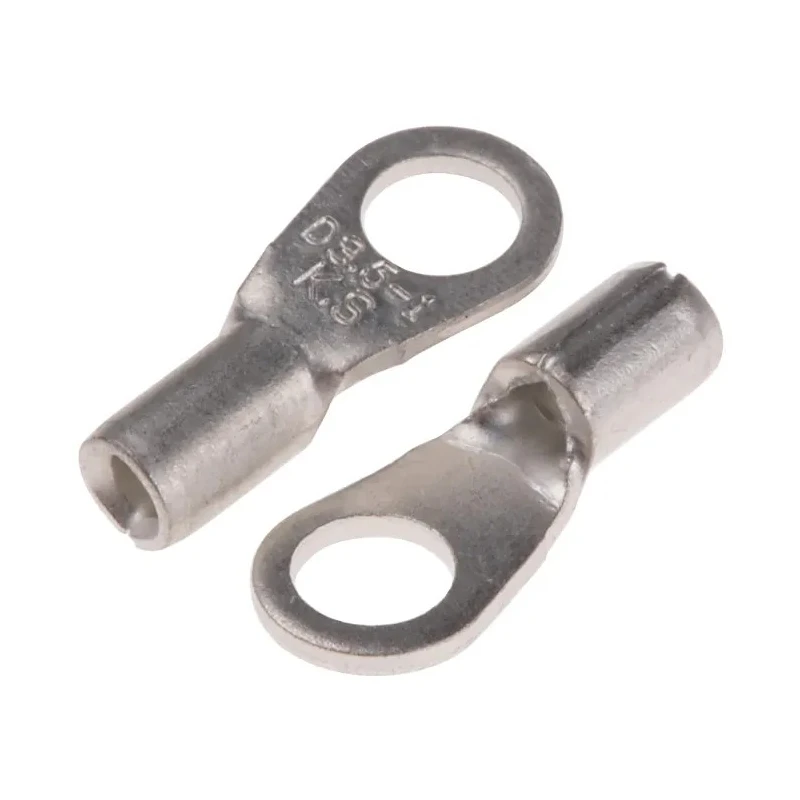

RS PRO 809-2224 uninsulated ring terminal is a high-quality electrical connector designed to terminate or connect wires efficiently in industrial and electronic applications. This terminal features a 6 mm stud size and supports wire sizes ranging from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²), making it suitable for a wide range of wiring tasks.
Manufactured from copper with a tin-plated contact surface, the ring terminal ensures excellent electrical conductivity while providing corrosion resistance for long-lasting performance. The absence of insulation allows for direct crimping on cables, minimizing electrical resistance and enhancing connection reliability.
The terminal measures 14 mm in overall length with an outer ring diameter of 6 mm and an inner ring diameter of 3.7 mm, designed for compatibility with appropriately sized studs and posts in electrical equipment.
Operating temperature ratings of -40°C to 150°C make this terminal adaptable for use in harsh environments and varied industrial settings. The grey color aids quick wire identification and organization during installation.
Certified to comply with RoHS and ANSI/ESD S20.20:2021 electrostatic control standards, it meets environmental and electrostatic discharge requirements for safe electrical installations.
Uninsulated design enables direct wire crimping for optimal electrical contact. Supports wire sizes 22 AWG to 16 AWG, suitable for many wiring applications. Made of copper with tin plating for excellent conductivity and corrosion resistance.
Rated for wide operating temperature range of -40°C to 150°C for industrial use. Grey coloring for easy wire size identification and organization. Compliant with RoHS regulations and electrostatic discharge standards. Ideal for use in industrial electronics, power connections, and electrical wiring tasks.
This RS PRO Ring Terminal is a dependable choice for professionals seeking reliable electrical connectors. Explore the Electronics & Electricals category at EnvMart for more connectors and terminals that suit industrial, manufacturing, and electrical maintenance applications.
