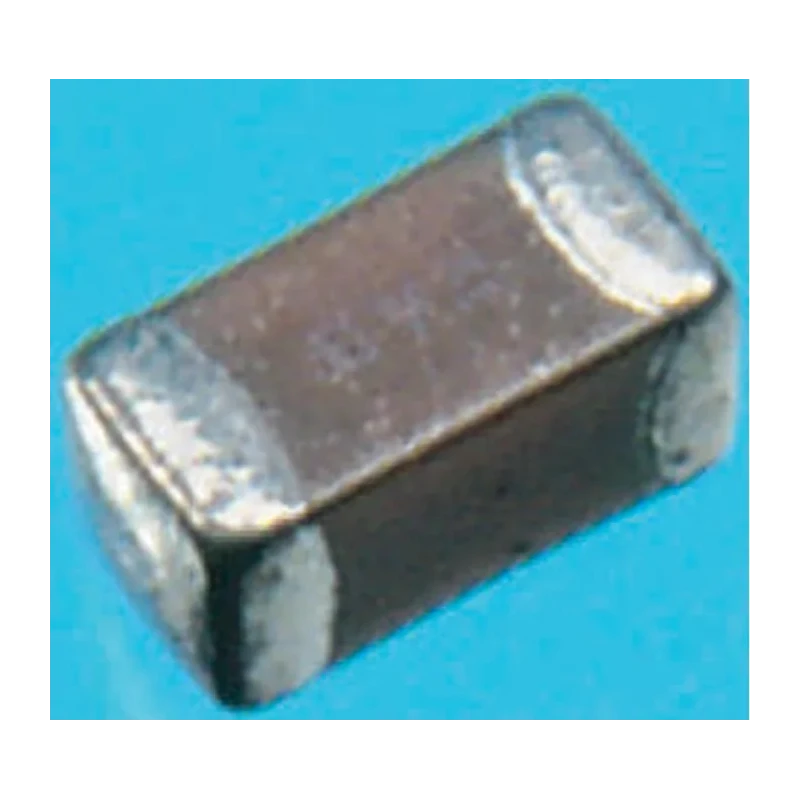

KEMET 680 nF Multilayer Ceramic Capacitor 16V dc ±10 % Surface Mount 0603 Package C0603C684K4PACTU

KEMET C0603C684K4PACTU is a multilayer ceramic capacitor offering a capacitance of 680 nF and a voltage rating of 16V dc, designed for surface mount technology in the compact 0603 package.

Constructed using X5R dielectric material, this capacitor maintains its capacitance with limited variation of ±15 % over the temperature range of -55°C to 85°C, making it suitable for general-purpose decoupling and bypass circuits.

The device features a stacked construction and solder termination, ensuring reliable mechanical and electrical connection to the PCB. The 0603 package measures 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, ideal for space-constrained electronics.

This capacitor meets multiple industry standards such as J-STD-020 and IPC-7351, ensuring quality and performance consistency. Typical applications include frequency discriminating circuits where Q factor and capacitance stability are of lesser concern.

This capacitor features a compact 0603 package suitable for surface mount applications. It has an X5R dielectric construction providing stable capacitance over a temperature range from -55°C to 85°C. The device is manufactured with a stacked construction and solder termination type for reliable mounting.

This component complies with standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481. Its maximum operating temperature is 85°C, matching the class II suppression classification. Ideal for bypass and decoupling applications where capacitance stability is not critical.

Packaged on tape and reel for automated assembly processes. These capacitors are suitable for applications in industrial electronics, consumer devices, and automotive electronics (though not Automotive Standard certified).
