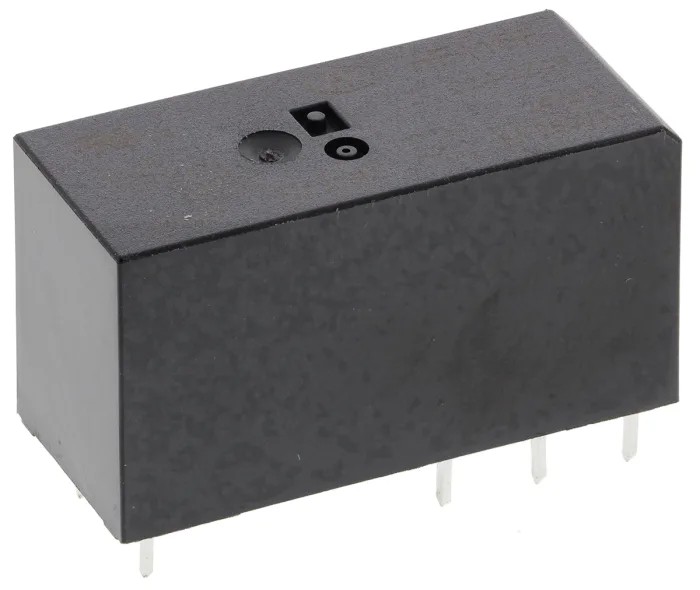

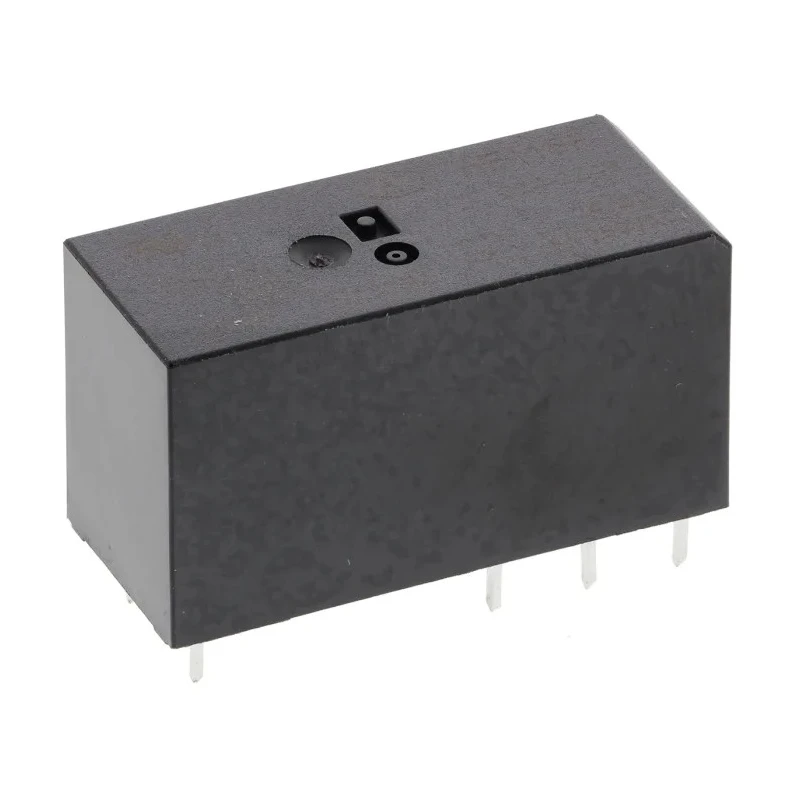

RS PRO PCB Power Relay 24V dc Coil 8A Switching Current DPDT 400mW Coil Power 8004454P

RS PRO 8004454P PCB Power Relay is a high-performance relay designed for industrial and electrical applications requiring dependable switching of AC and DC loads. This relay features a 24V dc coil and an 8A switching current capacity with a DPDT contact configuration, making it ideal for controlling multiple circuits with a single relay unit.

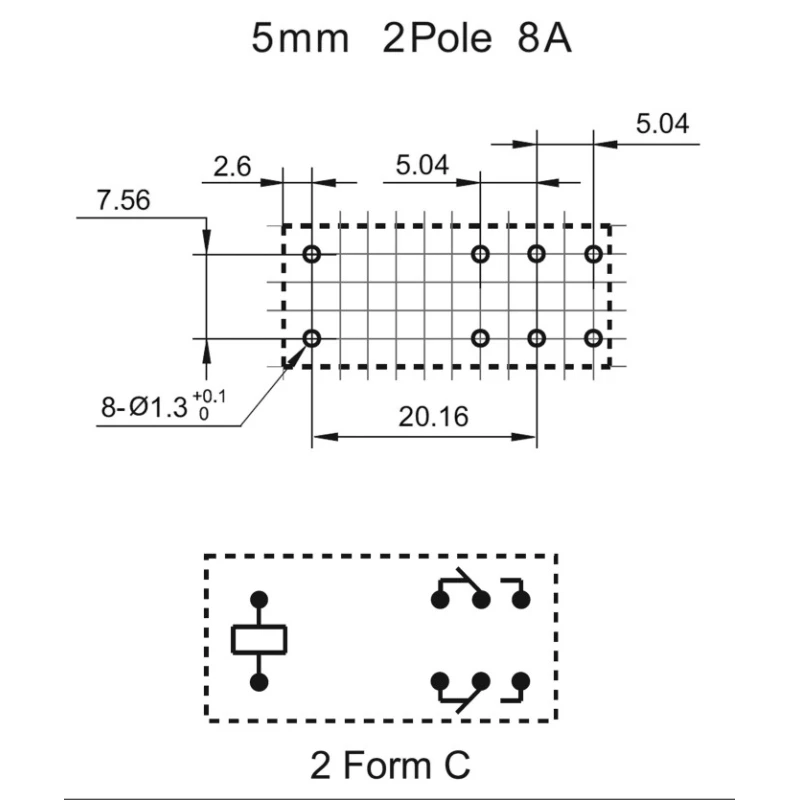

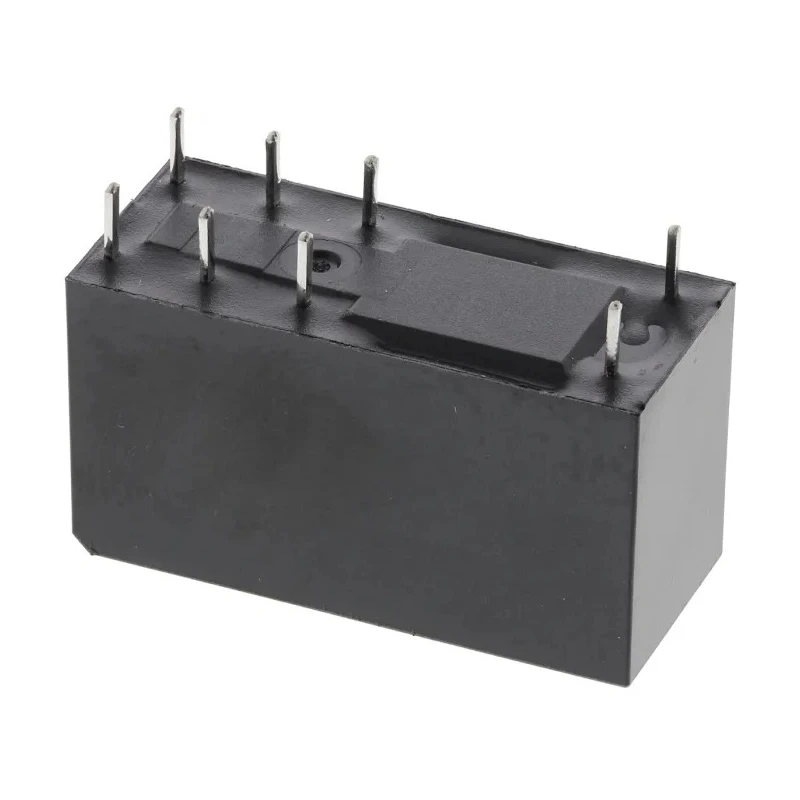

The relay is designed for PCB mounting with solder terminals, ensuring a secure and robust connection within electronic assemblies. It supports switching voltages of up to 440V AC and 300V DC, allowing usage in a variety of power control and signal conditioning applications.

The coil resistance of 1.4kΩ combined with a coil power consumption of 400mW provides efficient electromagnetic activation. Its compact size with dimensions of 29mm length, 12.7mm width, and 15.7mm maximum height allows integration into space-constrained circuits. The relay's silver alloy contacts ensure excellent conductivity and durability while maintaining a low contact resistance of 100mΩ for reliable operation.

This relay is engineered for operation in a wide temperature range from -40°C to 85°C, making it suitable for harsh industrial environments. The design incorporates a high inrush current rating (TV-5 80A at 125Vac), a dielectric strength of 5kV between coil and contacts, and surge voltage tolerance of up to 10kV to protect against transient voltages.

Additional safety features include a minimum creepage distance of 10mm and conformance with key international standards such as UL (File no. E134517), VDE (File no.116934), and CQC (File no. CQC02001001951). The relay is wash tight and designed for reliable long-term performance in automation, electrical control panels, manufacturing equipment, industrial machinery, and HVAC systems.

This RS PRO relay offers engineers a reliable, compact, and efficient solution for switching moderate power loads on printed circuit boards, meeting stringent electrical and safety requirements.

This power relay is designed for PCB mounting with solder terminal type. It supports switching AC voltage up to 440V and DC voltage up to 300V. The coil resistance is 1.4kΩ with coil power of 400mW ensuring efficient activation.

Features a compact low profile design with dimensions of 29mm length, 12.7mm width, and 15.7mm height. Silver alloy contact material provides high reliability and low contact resistance of 100mΩ. Operates reliably between -40°C and 85°C to suit diverse environments.

Conforms to international standards including UL, VDE, UR, and CQC approvals. High inrush capability with TV-5 80A rating at 125Vac and 5kV dielectric strength between coil and contacts. Designed for high surge voltage tolerance up to 10kV and has a creepage distance of 10mm for safety.
