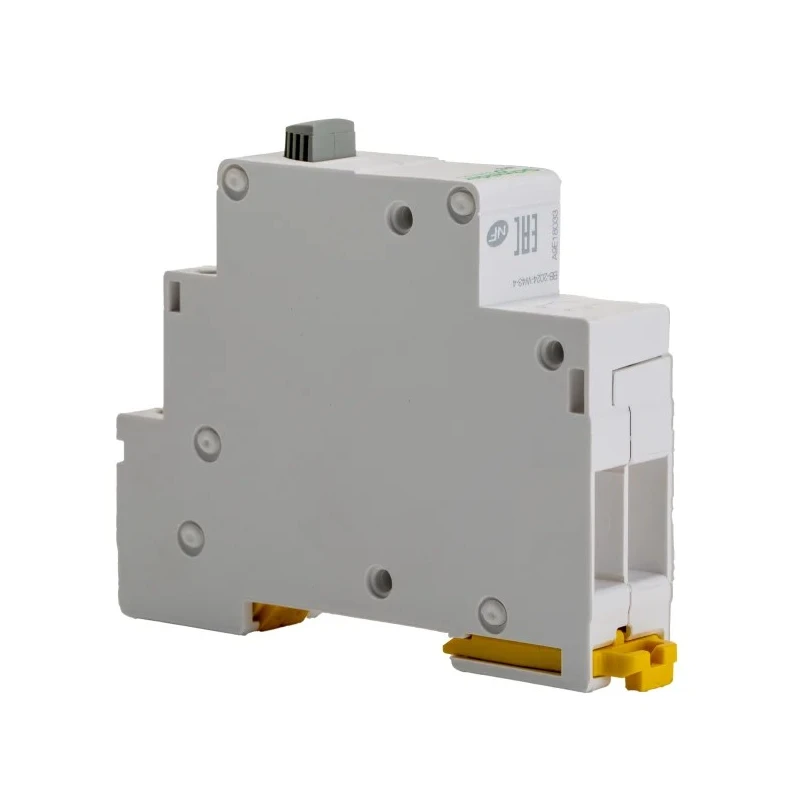

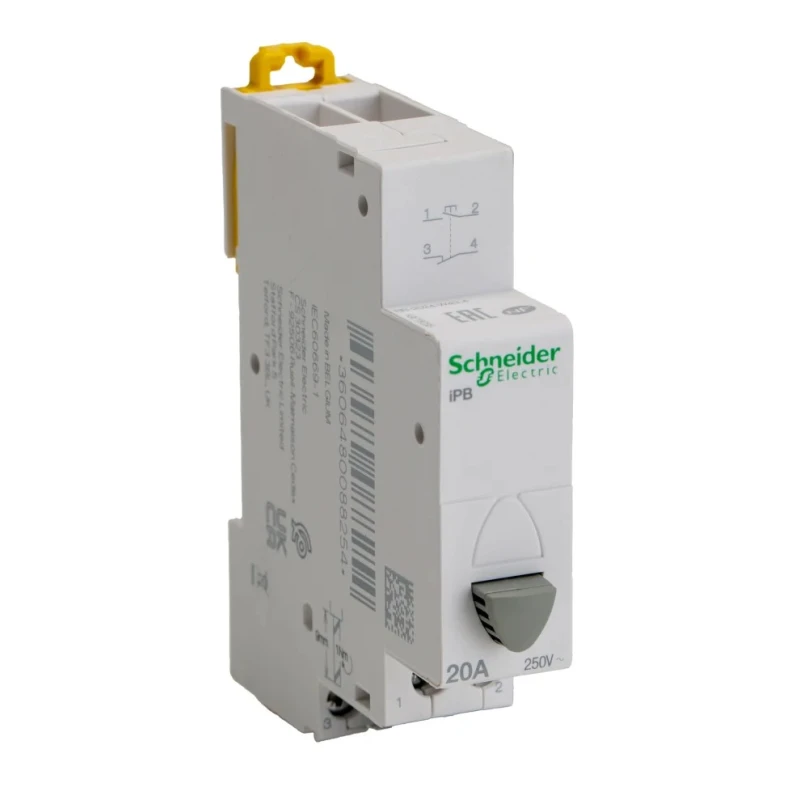

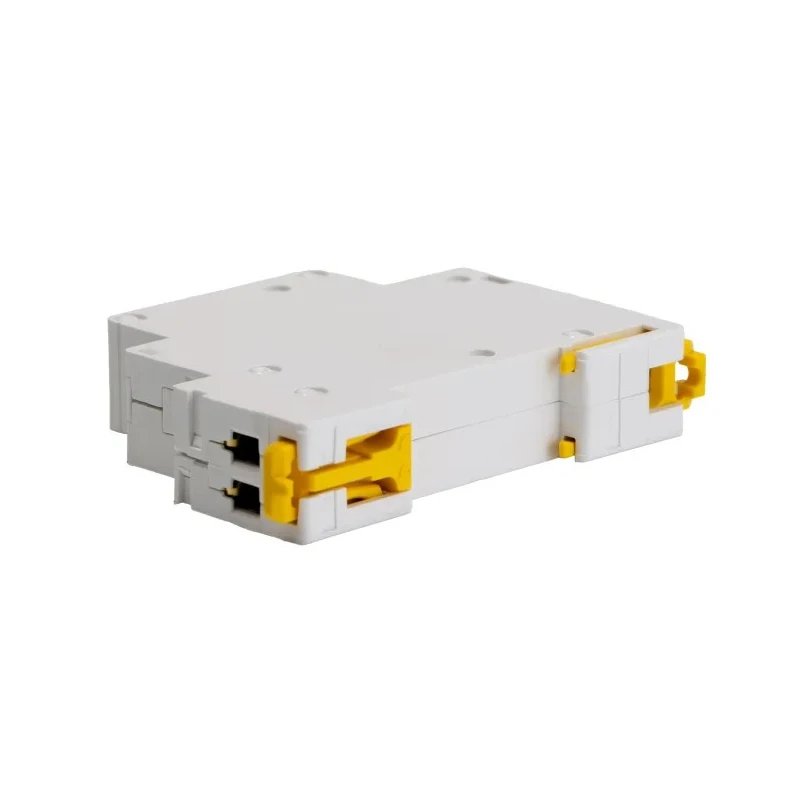

Schneider Electric Acti9 Control Push Button Circuit Trip 20A 250V AC DIN Rail Mount A9E18033
Specifications
| Country of Origin | India |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Model | A9E18033 |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 Control |
| Contact Configuration | 1 NO/1 NC |
| Sub Type | Push Button |
| Terminal type | Tunnel |
| Control Voltage | 250V ac |
| Better World Verification | Byggvarubedömningen |
Key Features
- Compact design measuring 82mm height, 18mm width, and 71.5mm depth.
- Features 1 Normally Open and 1 Normally Closed contact configuration for effective circuit switching.
- Supports a tightening torque of 1Nm for secure fixed connections.
- Rated for up to 30,000 operation cycles ensuring long-lasting protection.
- Operates efficiently within a wide temperature range from -35°C to +70°C.
- Complies with IEC 60947-5-1 and IEC 60669-1 standards.
- Control voltage rating is 250V AC suitable for high-voltage environments.
- Compatible with rigid or ferrule copper cables from 0.5mm² to 2 x 2.5mm².
Product Description
Schneider Electric A9E18033 Push Button Circuit Trip from the Acti9 Control range is engineered to deliver effective and safe electrical circuit control in commercial and industrial setups. This product supports a 20A current rating and operates at 250V AC, making it suitable for a variety of electrical installations requiring DIN rail mounting.
Designed with compact dimensions of 82mm (H) x 18mm (W) x 71.5mm (D), it occupies minimal space on your circuit board without compromising performance. The device features a contact configuration of one Normally Open (NO) and one Normally Closed (NC) contact, providing flexible switching options to protect circuits from overloads.
Construction includes tunnel-type terminals with a tightening torque rated at 1Nm to ensure secure and durable connections, suitable for copper cables ranging from 0.5mm² to 2 x 2.5mm² in cross-section. The design accommodates passage through all types of comb busbars with integrated phase-separated walls for enhanced safety.
This circuit trip withstands extreme operating conditions with a temperature range from -35°C up to +70°C, ensuring reliable performance in varied environments. It also offers a long operational life with durability for up to 30,000 switching cycles. The product adheres to IEC 60947-5-1 and IEC 60669-1 standards, underscoring its quality and safety compliance.
Applications for this push button circuit trip include industrial automation, safety access gate control, and commercial lighting circuits where precise and dependable switch control is required. Mounting on DIN rails allows rapid setup and integration within existing electrical infrastructure.
This is a Better World product, verified by Byggvarubedömningen, supporting sustainable operations and efficient energy use. Compact dimensions for space-saving installation. Reliable switching with 1 NO and 1 NC contacts.
High tightening torque for secure connections. Designed for extreme temperatures and long operational life. Certified to international IEC standards for circuit devices. Explore Schneider Electric products in the Circuit Breakers category at EnvMart for advanced electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has compact dimensions of 82mm in height, 18mm in width, and 71.5mm in depth, making it suitable for space-saving installations on DIN rails.
The Schneider Electric A9E18033 is rated for a current of 20A, making it suitable for various electrical installations.
It operates at a control voltage of 250V AC, suitable for high-voltage environments.
This circuit trip features a contact configuration of one Normally Open (NO) and one Normally Closed (NC) contact, allowing for flexible switching options.
It supports a tightening torque of 1Nm, ensuring secure and fixed connections.
This model operates efficiently within a wide temperature range from -35°C to +70°C, ensuring reliable performance in varied environments.
It is rated for up to 30,000 operation cycles, providing long-lasting protection for electrical circuits.
This circuit trip includes tunnel-type terminals, which accommodate rigid or ferrule copper cables ranging from 0.5mm² to 2 x 2.5mm².
It complies with IEC 60947-5-1 and IEC 60669-1 standards, ensuring quality and safety in its operation.
This push button circuit trip is suitable for applications in industrial automation, safety access gate control, and commercial lighting circuits.
The Schneider Electric Acti9 Control Push Button Circuit Trip is manufactured in India.
This model is designed for DIN rail mounting, facilitating rapid setup and integration within existing electrical infrastructure.
