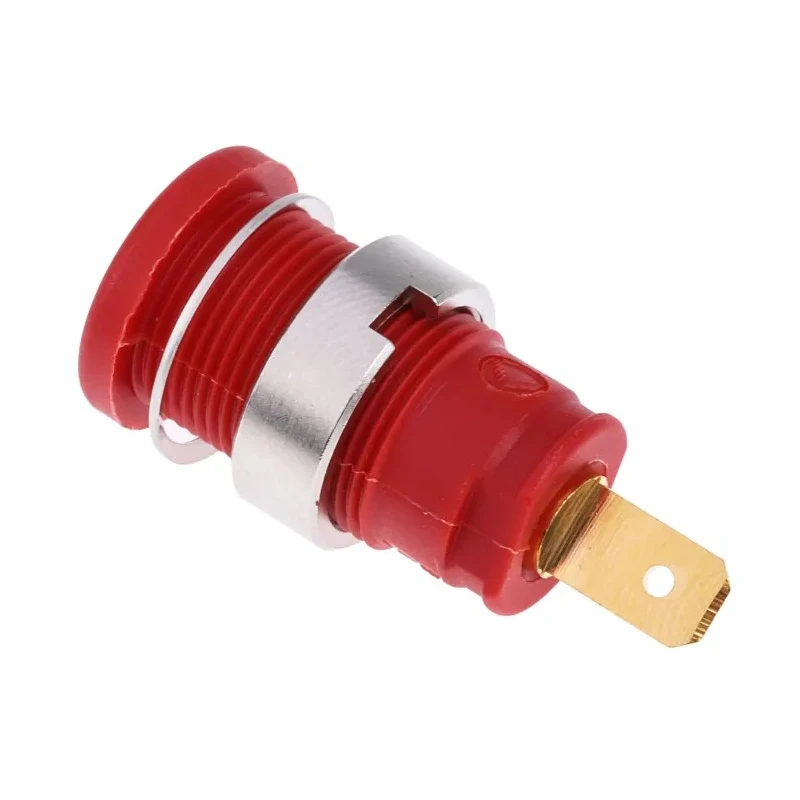

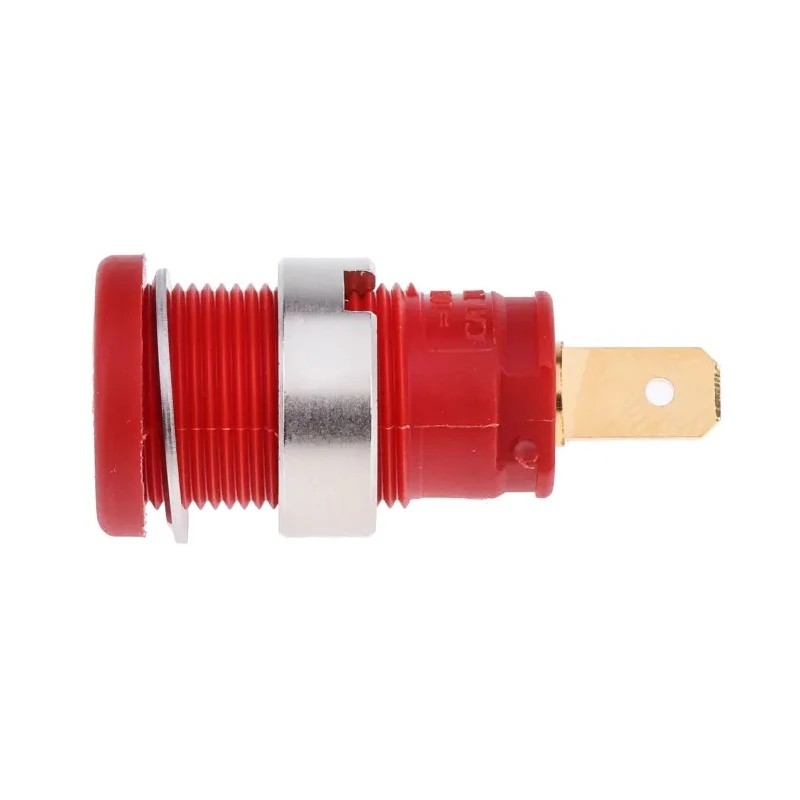

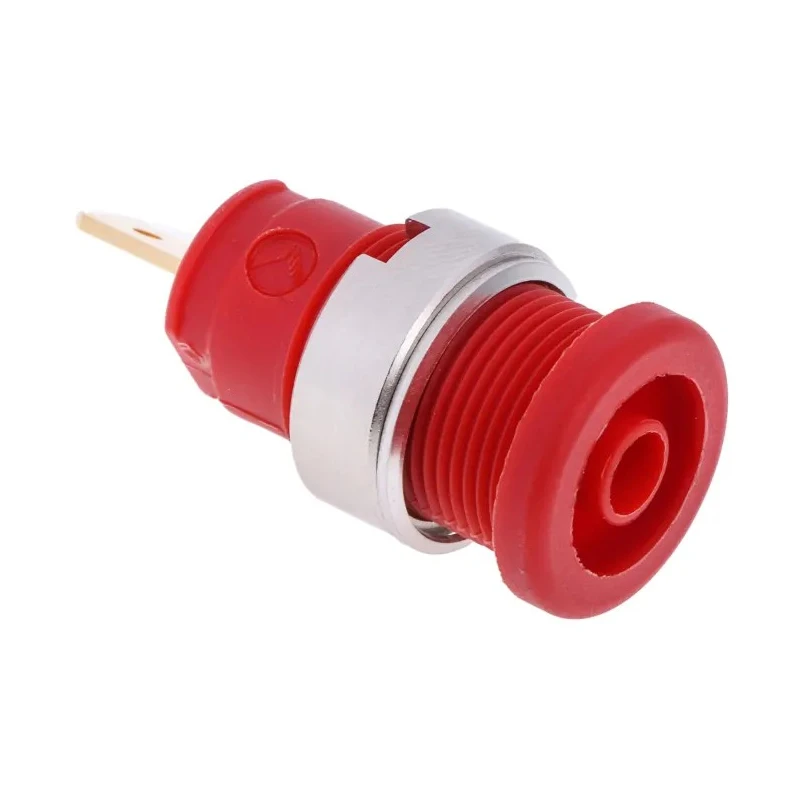

Hirschmann Test & Measurement Red Female Banana Socket 4 mm Connector Tab Termination 1000 V ac/dc 25A Gold 972355101

Hirschmann Test & Measurement 972355101 Red Female Banana Socket 4 mm Connector is a high-quality chassis mount test socket designed for safe and reliable electrical and electronic connections. With a gold-plated brass contact and polyamide housing, this banana socket supports a voltage rating of 1000 V AC/DC and a current rating of 25A, making it suitable for demanding industrial environments.

The socket features a tab termination method and spring contact mechanism ensuring secure and low resistance connections. It is designed for installation in equipment chassis and switch panels with wall thickness up to 6 mm, requiring a 12.2 mm diameter installation hole. The overall length of the socket is 32 mm.

This product complies with stringent international safety and quality standards such as BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014, DIN 46 244, and UL 94 V-2, providing assurance of performance and reliability. The gold-plated contact material reduces corrosion risk and contact resistance is maintained at 5 milliohms, while tightening torque is specified at 50 N-cm for secure fitment.

Applications include reliable electrical and electronic connections in testing, measurement instruments, laboratory setups, and industrial machinery. The product is engineered in Germany, representing superior engineering and manufacturing quality.

The socket features a 4 mm banana connector size for compatibility. Gold-plated brass contacts ensure excellent conductivity and corrosion resistance. Rated for 1000 V AC and DC and a current capacity of 25A for demanding electrical applications.

Tab termination method with spring contact provides secure and stable electrical connections. Housing is made of durable polyamide insulation material ensuring safety and durability. Designed for chassis mount installation with a length of 32 mm and suitable for up to 6 mm wall thickness.

Complies with international standards including BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014 for safety and performance. Ideal for industrial, laboratory, construction, and test & measurement equipment applications.
