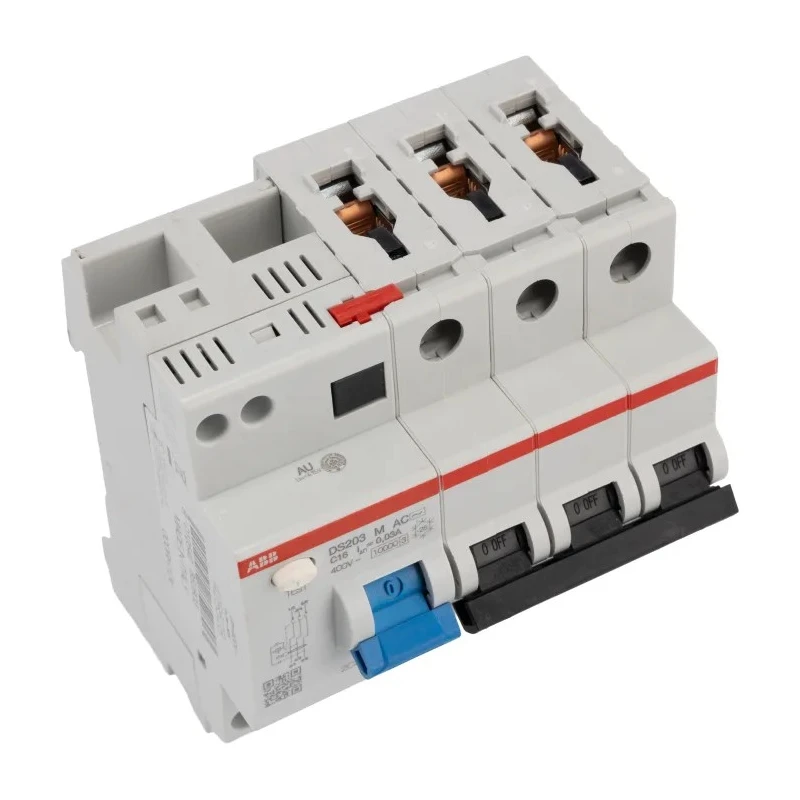

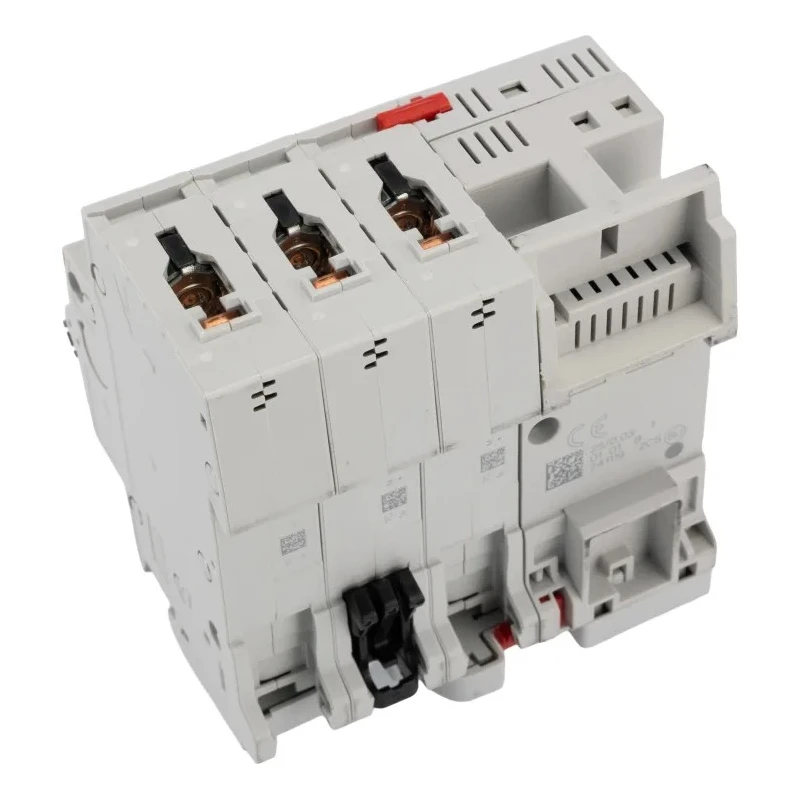

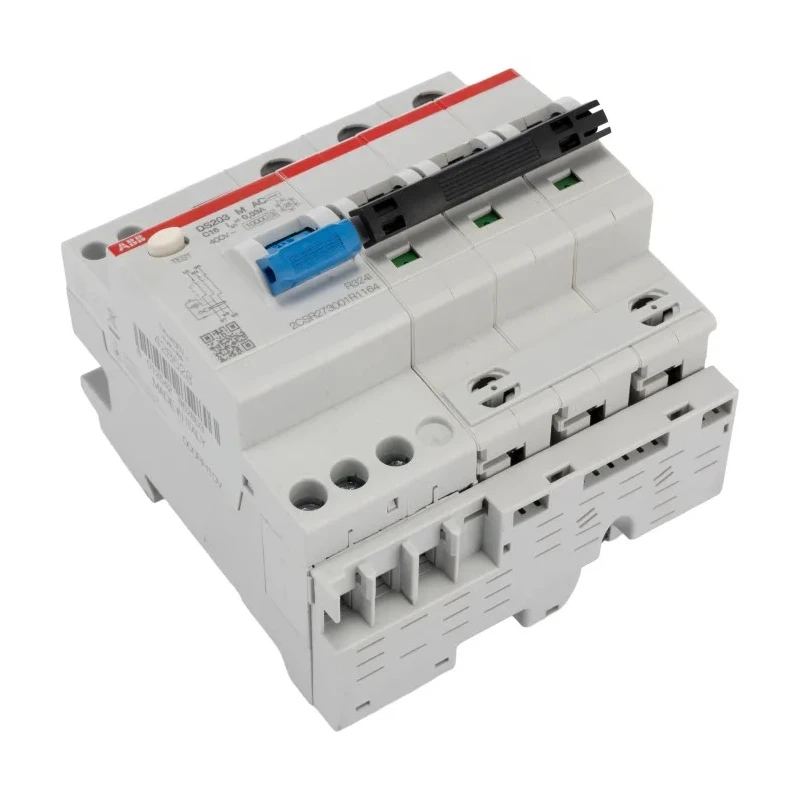

ABB Residual Current Circuit Breaker with Overload Protection 16A Current Rating 3-Pole 2CSR273001R1164 DS203 M AC-C16/0,03



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	85mm
Model	2CSR273001R1164 DS203 M AC-C16/0,03
Depth	69mm
Width	122mm
Mount Type	DIN Rail
Current Rating	16A
Series	DS203
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	3
Standards/Approvals	RoHS, CE
Rated AC Voltage	240V ac
Tripping Characteristics	Type C
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC

Key Features

Protects electrical circuits against overload and short circuits with a Type C tripping characteristic.
Features a 3-pole design ensuring comprehensive protection in three-phase installations.
Incorporates 30mA trip sensitivity to detect earth faults effectively.
Mounts easily on DIN rail for compatibility with standard electrical panels.
Equipped with a toggle switch reset actuator for quick resetting after trips.
Supports 240V AC rated voltage and screw terminal connections for secure wiring.
High breaking capacity of 10kA ensures strong fault interruption capability.
Complies with RoHS and CE standards for quality and safety assurance.

Product Description

ABB 2CSR273001R1164 DS203 M AC-C16/0,03 Residual Current Circuit Breaker with Overload Protection is designed to deliver dependable electrical safety with a 16 ampere current rating and 3-pole configuration. It provides sensitive protection with a 30 milliampere earth leakage trip level to prevent hazardous earth faults in residential and commercial electrical systems.

This circuit breaker features the industry-standard DIN rail mount, easing installation and ensuring compatibility with common electrical panels. The toggle switch reset actuator allows for swift recovery post fault clearance, improving operational convenience.

The device operates at a rated AC voltage of 240 volts, integrates screw terminal connections for reliable wiring, and incorporates a robust breaking capacity of 10 kiloamperes, allowing it to handle fault currents safely and efficiently.

The tripping behavior follows the Type C characteristic, suitable for general-purpose circuit protection including capacitive and inductive loads. It is compliant with RoHS and CE certifications, meeting international quality and environmental standards.

Its compact physical dimensions - 85 mm height, 69 mm depth, and 122 mm width - ensure it fits well within control panels without occupying excessive space. Protection against overload and short-circuit currents. Sensitive detection of 30mA earth leakage faults for enhanced safety.

Toggle switch reset for ease of operation after trips. DIN rail mounting for universal fitting in electrical panels. Compliant with international safety standards RoHS and CE. High breaking capacity supports safe interruption of fault currents.

Three poles provide reliable protection in three-phase electrical systems. Suitable for residential, commercial, and industrial automation applications. Ensures electrical system integrity and fault mitigation.

This ABB Residual Current Circuit Breaker is ideal for electrical protection in various settings, including residential buildings, commercial facilities, and industrial automation systems. It provides an essential safeguard against overcurrent and earth faults, contributing to overall electrical system reliability and user safety.
