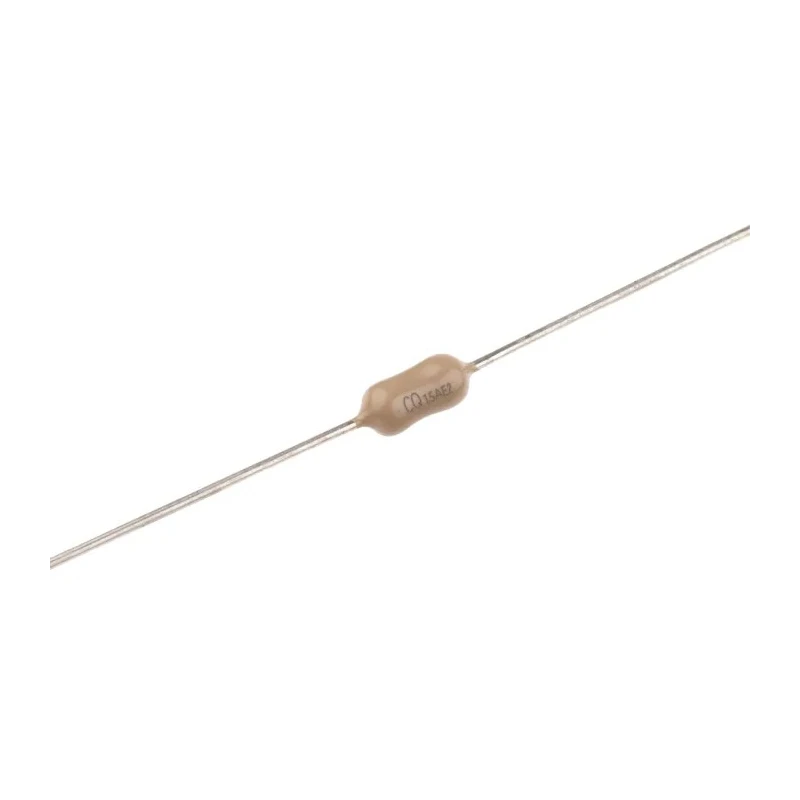

RS PRO Non-Resettable Fuse Axial 1.5A 250V AC Fast Acting Epoxy Coated Body 764-9582

RS PRO 764-9582 is a non-resettable axial fuse designed with a current rating of 1.5A and rated for 250V AC operation. It features a fast acting fuse characteristic which allows rapid interruption of circuit faults, thereby protecting sensitive electronic equipment and electrical installations from damage.

The fuse is constructed with an epoxy coated body that provides mechanical strength and electrical insulation, making it suitable for use in industrial automation, electrical circuits, and control panel applications.

With a breaking capacity of 50A, it is capable of safely interrupting high fault currents without risk of damage. Its compact size with a diameter of 3.18mm and height of 7.1mm ensures easy integration in space-constrained designs. Axial leads measuring 28mm length and 0.64mm diameter enable straightforward PCB mounting.

This fuse operates reliably across a wide temperature range from -55°C minimum to 125°C maximum, making it suitable for harsh environments in manufacturing, industrial, and commercial electrical installations.

Compliance with RoHS standards confirms the fuse is free from hazardous substances, supporting environmentally responsible design practices. Axial lead orientation for circuit insertion. Fast acting fuse characteristics for quick fault response.

Epoxy coated body provides durability and insulation. 50A breaking capacity for fault interruption. Wide operating temperature range from -55°C to 125°C. Compact form factor with 3.18mm diameter, 7.1mm height. Lead diameter 0.64mm, length 28mm for PCB compatibility.

RoHS certified for environmental compliance. Manufactured in Taiwan, Province Of China.

This RS PRO fuse model 764-9582 is ideal for use in electrical, automation, construction, and industrial control applications requiring dependable fuse protection. Explore more Fuses and product solutions within the EnvMart Fuse category for your circuit protection needs.
