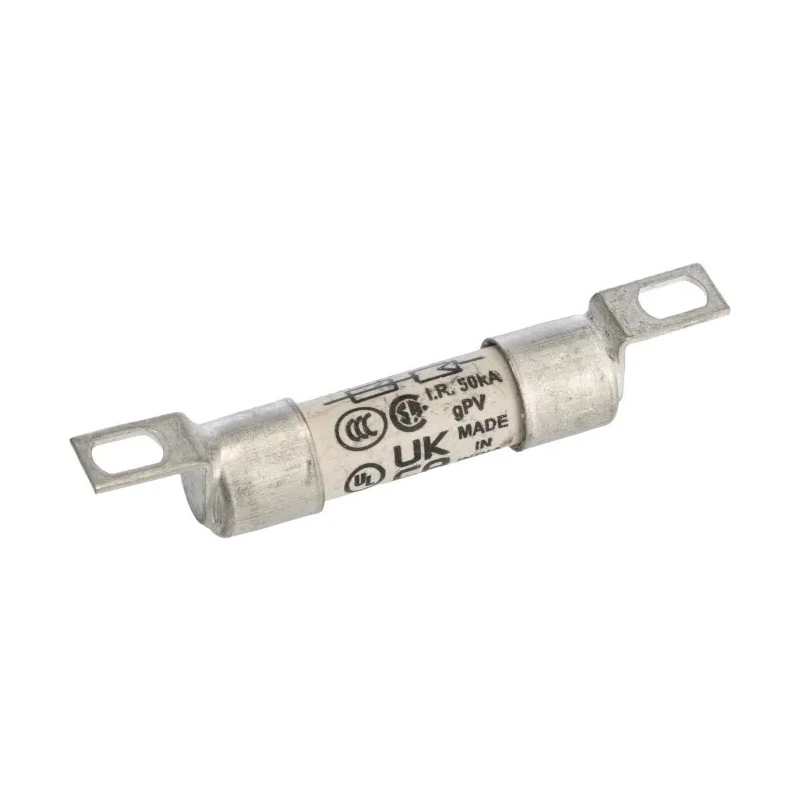

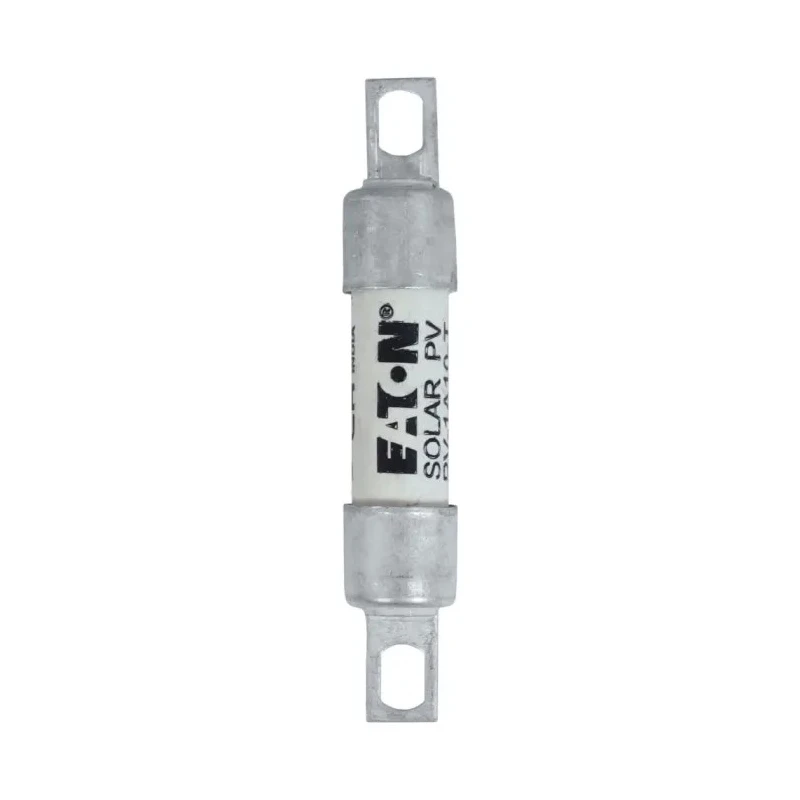

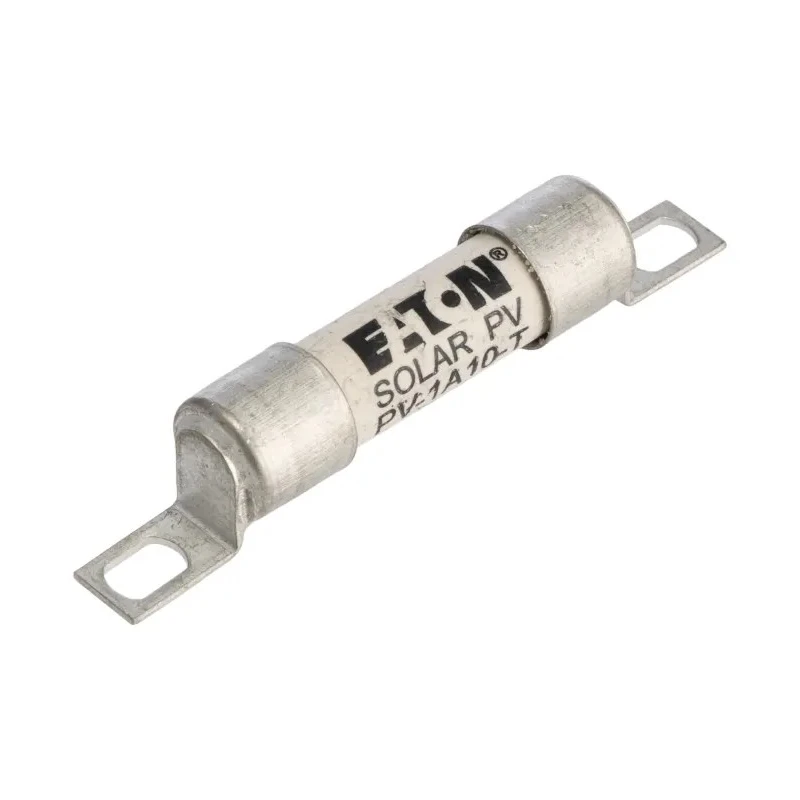

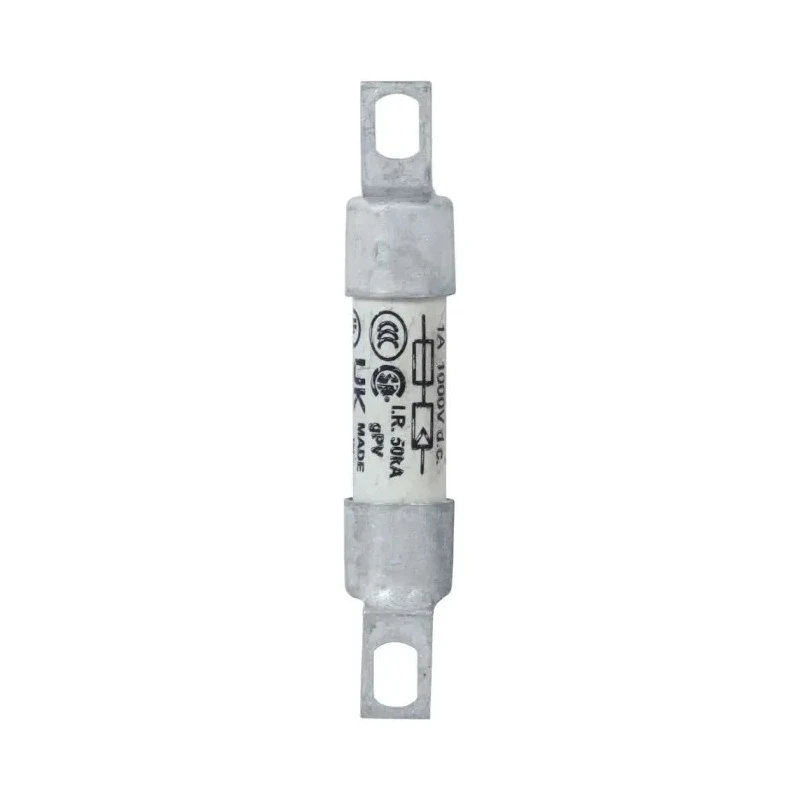

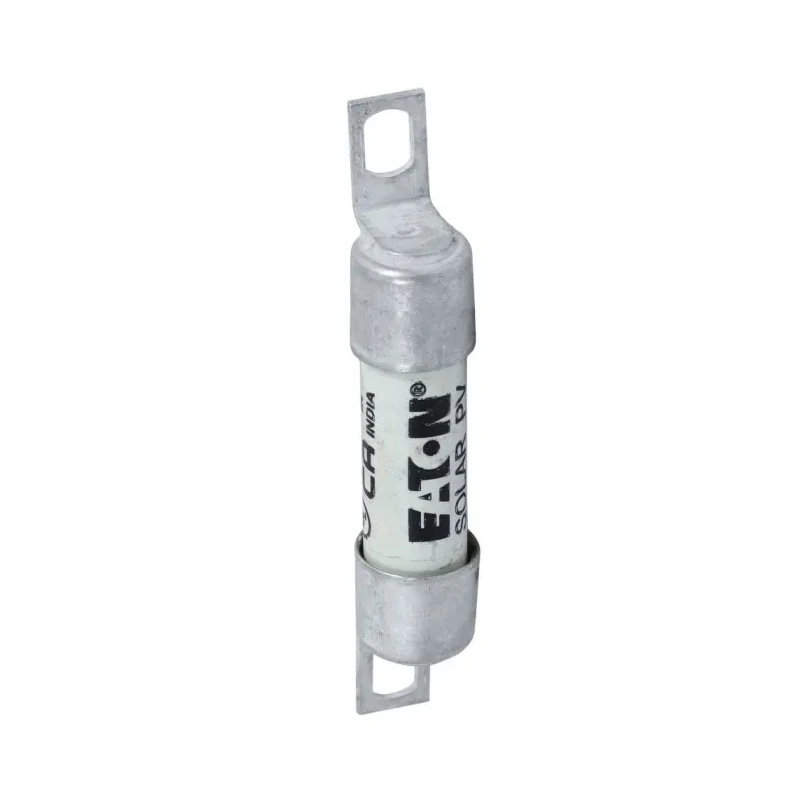

Eaton Bolt Fixing Photovoltaic Fuse 1A Current Rating 1000V DC Voltage 10 x 38 mm PV-1A10-T

Name: Eaton Bolt Fixing Photovoltaic Fuse 1A Current Rating 1000V DC Voltage 10 x 38 mm PV-1A10-T
Brand: Eaton
SKU: 354342
Price: 20.22 USD
Availability: InStock



Category Fuses Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	1000V dc
Diameter	10.4mm
Brand	Eaton
Height	10.4mm
Length	38.5mm
Model	PV-1A10-T
Width	11mm
Overall Length	60mm
Current Rating	1A
Series	PV
Standards/Approvals	UL, CSA, CE, IEC 60269-6, RoHS, CCC
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	703-8248 Brand: [Eaton](https://in.rsdelivers.com/brands/eaton)Manufacturers Part No.: PV-1A10-T
Fuse Size	10 x 38 mm
Fixing Centres	49.7 mm
Tag Width	6.6mm
Tag Orientation	Offset
Application Category	gPV

Key Features

Provides protection and isolation for photovoltaic strings in solar panel arrays.
Has a bolt fixing tag type design ensuring secure installation.
Supports high voltage rating of 1000 V DC for safe operation.
Rated breaking capacity is 33kA DC to interrupt low overcurrents reliably.
Suitable for use with thin film cells and various crystalline silicon solar cells.
Conforms to IEC 60269-6 and other international standards for safety and reliability.
Features an offset tag orientation and high rupture capacity.
Manufactured in India, ensuring compliance with RoHS and other global approvals.

Product Description

Eaton PV-1A10-T Bolt Fixing Photovoltaic Fuse is a high-quality fuse specifically engineered for solar energy systems. With a current rating of 1A and a voltage rating of 1000 V DC, it offers dependable protection and isolation for photovoltaic (PV) strings in solar panel arrays.

This fuse features a bolt fixing tag design, which facilitates a secure and robust installation within PV string circuits. It meets the IEC 60269-6 standard along with UL, CSA, CE, RoHS, and CCC certifications, ensuring both operational safety and compliance with international electrical regulations.

The fuse dimensions are 10 x 38 mm with a fixing center of 49.7 mm and an overall length of 60 mm. The tag width is 6.6 mm with an offset tag orientation to suit various mounting requirements. Its high rupture capacity makes it ideal for interrupting fault currents up to 33kA DC without damage.

Designed for versatility, this fuse supports applications involving thin film solar cells and crystalline silicon cells with sizes of 4", 5", and 6". It is highly suitable for residential, commercial, and industrial solar energy setups.

Provides protection and isolation for photovoltaic strings in solar panel arrays. Bolt fixing tag type ensures secure and reliable fitting. High voltage rating at 1000 V DC suitable for solar applications. Complies with IEC 60269-6 standard and international approvals.

High rupture capacity of 33kA DC for interrupting fault currents. Tag width 6.6 mm with offset tag orientation for installation flexibility. Applicable for thin film and crystalline silicon solar cells. Manufactured in India, with RoHS compliance for environmental safety.

This Eaton PV-1A10-T photovoltaic fuse is ideal for use in industrial and utility-scale solar installations, as well as residential photovoltaic systems. It ensures safe operation by interrupting dangerous overcurrents, thereby protecting photovoltaic modules and associated electrical equipment.
