Honeywell Technologies GLD Series Roller Plunger Limit Switch, 1 NC/1 NO, IP66, Fibreglass Reinforced Thermoplastic IP66

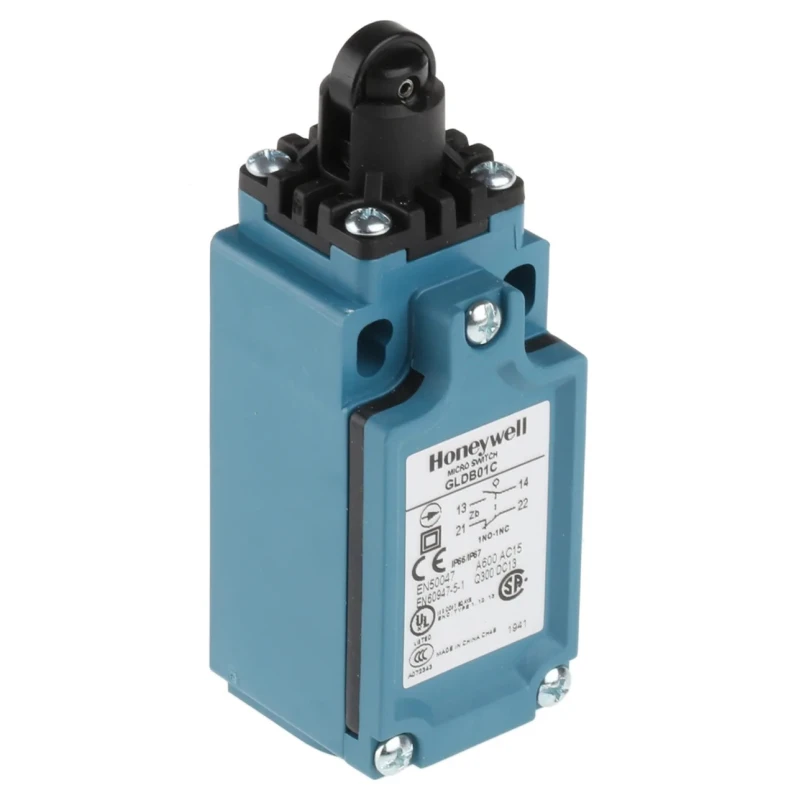

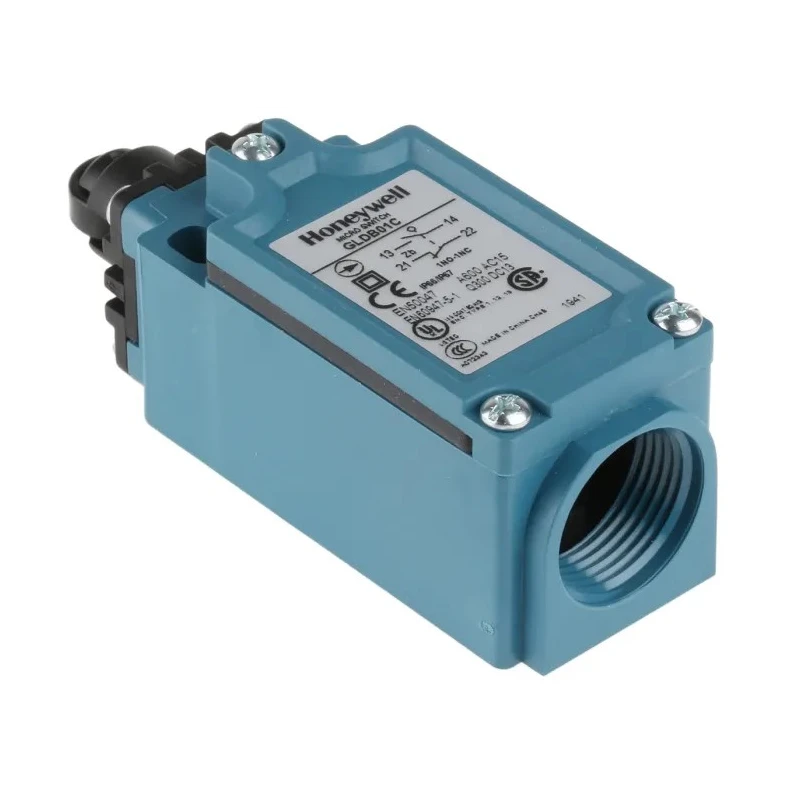

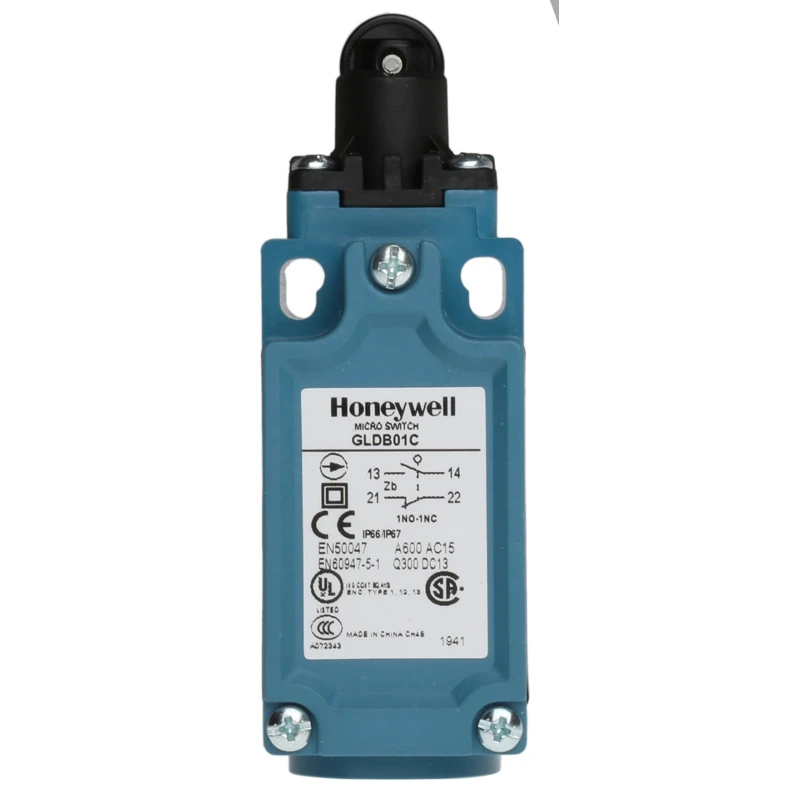

Honeywell IP66 Roller Plunger Limit Switch GLDB01C from the GLD Series is a compact, reliable mechanical actuator designed for precise position detection and control tasks in industrial automation, electrical assemblies, and mechanical systems. It features an actuator type of roller plunger with a snap-action contact system configured as 1 normally closed (NC) and 1 normally open (NO) contact. Its housing is fabricated from fibreglass reinforced thermoplastic, providing excellent chemical resistance and robustness in environments where dust, moisture, or mildly aggressive atmospheres are present.

Operating within a temperature range of -40°C to 85°C, this switch supports applications in low-temperature storage areas as well as elevated ambient environments. Rated at IP66, the enclosure protects the internal components against ingress of dust and powerful jets of water, making it suitable for demanding industrial conditions.

The switch is capable of switching currents up to 6A at 240V AC and 250V DC, enabling it to control moderate electrical loads effectively. It has a mechanical life rated for 10 million cycles, ensuring long-term service and reliability. The device is mounted and wired efficiently using screw-type terminals with PG13.5 conduit entry for secure cable routing and gland installation.

Typical industrial applications include conveyor end-of-travel detection in automated production lines, door position sensing on machinery, limit feedback in pneumatic and hydraulic actuators, and safety interlocks in assembly and manufacturing machines. This limit switch meets multiple international standards, including CSA, CCC, CE, and UL, confirming its compliance with regional safety and performance requirements.

Durable snap-action contacts provide rapid and accurate switching. Contact configuration includes 1 normally closed (NC) and 1 normally open (NO) for versatile control. Fibreglass reinforced thermoplastic housing ensures chemical resistance and protection against dust and water ingress.

Operating temperature range from -40°C to 85°C suits harsh industrial environments. Rated for 6A switching current at 240V AC and 250V DC for moderate load handling. IP66 enclosure rating protects against dust and high-pressure water jets.

Mechanical life expectancy of 10,000,000 cycles supports extended industrial usage. Screw terminal connections and PG13.5 conduit entry facilitate secure wiring and installation. Ideal for conveyor end-of-travel detection, door position sensing, limit feedback, and safety interlocks.

Suitable for extensive use in industrial automation, manufacturing, mechanical systems, and electrical control panels, the Honeywell GLDB01C ensures reliable and precise position detection and enhanced equipment safety. Explore more Limit Switch products and Honeywell technologies on EnvMart for optimized industrial solutions.
