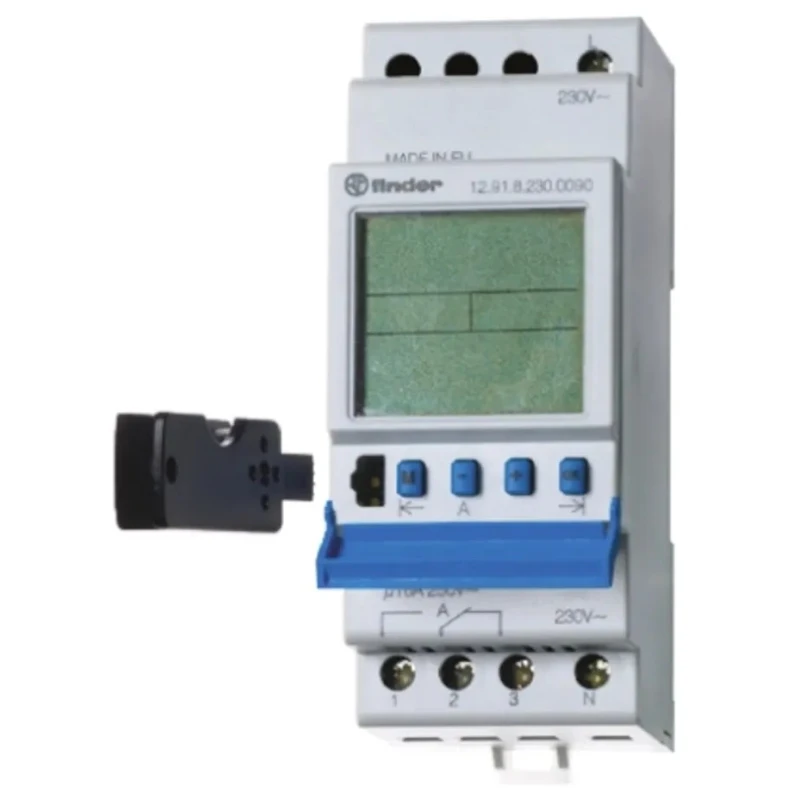

Finder Digital 12 DIN Rail Time Switch 230V ac 12.91.8.230.0090

Finder 12.91.8.230.0090 is a digital DIN rail time switch operating at 230V AC, designed for precise time control in industrial automation and process control systems. The DIN rail mount allows easy installation in electrical control panels, facilitating time-dependent switching operations.

This time switch features one programmable channel with a contact configuration of one Normally Open (NO) and one Normally Closed (NC) contact, making it suitable for diverse automation applications requiring single channel control. The timer measures time in minutes with a segment length of 1 minute, and it supports 60 memory spaces providing robust scheduling capacity.

An internal battery is integrated to allow device setup without an external power supply, ensuring ease of configuration. It provides an impulse output function adjustable from 1 to 59 seconds to cater to various timing requirements, coupled with an automatic adjustment feature for daylight saving time to maintain accuracy year-round.

The device boasts a battery life of 6 years post first operation, underscoring its reliability for long-term installations. It is certified with CE and EAC standards, complying with essential safety and performance regulations.

Technical dimensions include a height of 90mm and a depth of 63mm, making it compact for fitting in control panels without occupying excessive space. The screw terminal type ensures secure and stable electrical connections.

Compact 35mm DIN rail mount suitable for electrical enclosures. One channel with 1 NO and 1 NC contact configuration for versatile control. Memory capacity of 60 spaces enabling flexible programming. Built-in internal battery ensures configuration without supply presence.

Impulse output adjustable from 1 to 59 seconds for varied timing needs. Automatic daylight saving time adjustment for continual accuracy. Long-lasting battery life of up to 6 years after first operation. CE and EAC approved adhering to industrial standards.

Dimensions: Height 90mm, Depth 63mm for space efficient installation. Reliable screw terminal connection enhances durability and safety.

This digital DIN rail Time Switch is ideal for industrial automation, process control, electrical control panels, HVAC systems, and manufacturing environments where accurate time-based switching is critical. Explore a wide range of products in the Automation & Control Gear category at EnvMart to find complementary automation solutions.
